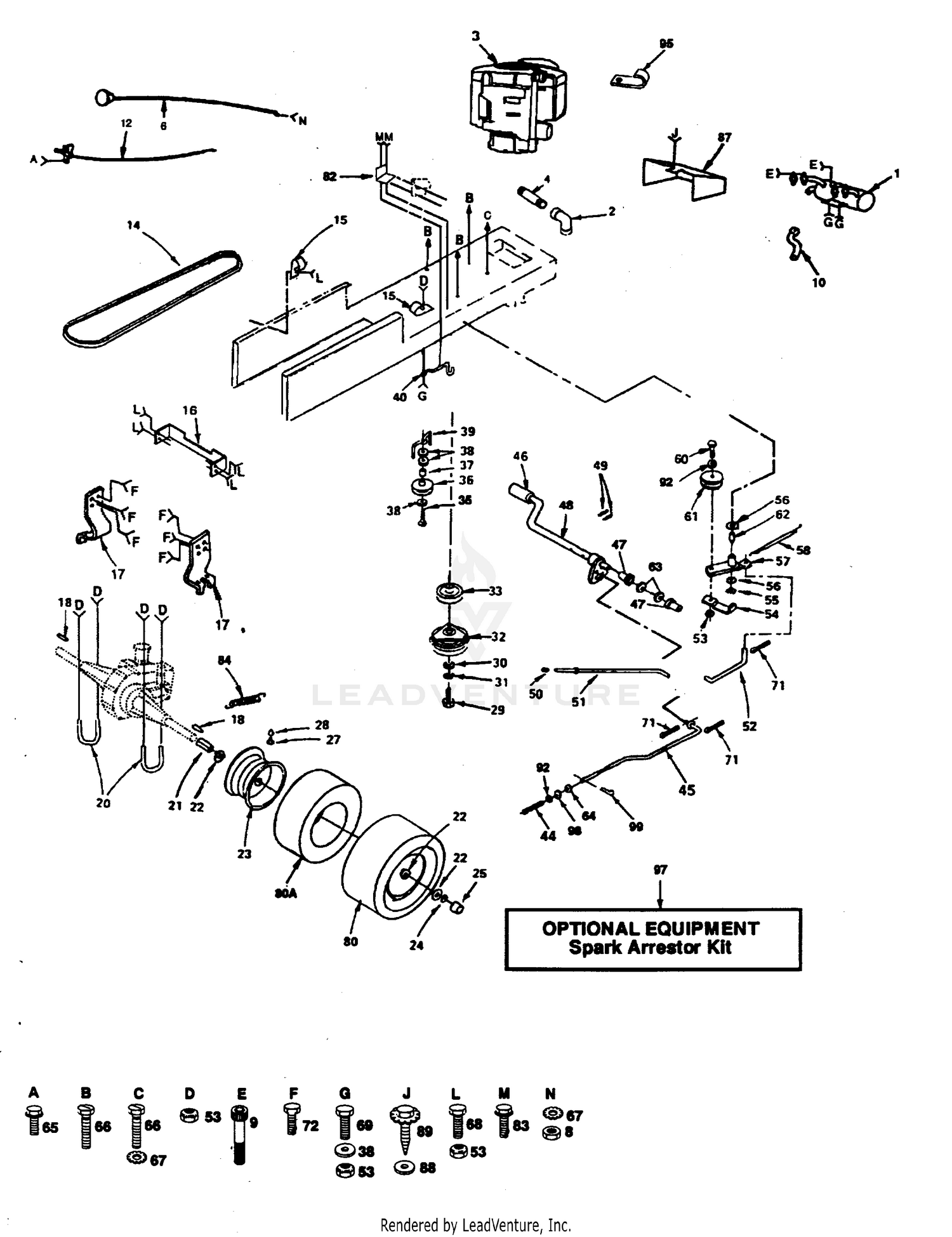

| Ref | Part Number | Description |
|---|
| 1 |
20-4290 |
MAT-DRAG Price: $973.11 |
| 1 |
532125890 |
Muffler (AYP part number) Price: $3.33 |
| 2 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 2 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 3 |
32122-35 |
SCREW Price: $35.19 |
| 4 |
2820-2 |
CHAIN Price: $75.55 |
| 4 |
813280336 |
Nipple, Pipe (AYP part number) Price: Call Us |
| 5 |
5-2942 |
SHACKLE Price: $16.99 |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 6 |
532132781 |
Control, Choke (AYP part number) Price: $19.99 |
| 7 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 8 |
28-0830-01 |
DRAG HOLDER ASM This part replaces 28-0830. Price: $244.89 |
| 8 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 9 |
874570512 |
Screw, Hex Socket 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 10 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
532128144 |
Tube Exhaust Price: $3.33 |
| 12 |
532133024 |
Control, Throttle (AYP part number) Price: $3.33 |
| 14 |
532123461 |
V-Belt, Drive (AYP part number) Price: $37.99 |
| 15 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 16 |
532121187 |
Bracket, Mounting, Hydro T/A (AYP part number) Price: $5.06 |
| 17 |
532126649 |
Bracket, Transaxle (AYP part number) Price: $6.74 |
| 18 |
532123583 |
Key, Square 1/4 x 2 (AYP part number) Price: $2.99 |
| 20 |
532121189 |
U-Bolt, 3/8-16 x 2-3/4 (AYP part number) Price: $2.38 |
| 21 |
532121199 |
Spacer, Split (AYP part number) Price: $3.12 |
| 22 |
532121748 |
Washer 1-1/32 x 1-5/8 x 16 Ga, (AYP part number) Price: $1.99 |
| 23 |
532106108 |
RIM 8" SILVER This part replaces 532124723. Price: $99.99 |
| 24 |
812000001 |
E-Ring (AYP part number) Price: $2.99 |
| 25 |
532104757 |
Cap, Axle (AYP part number) Price: $1.99 |
| 27 |
532065139 |
Stem, Valve (AYP part number) Price: $5.99 |
| 28 |
532059192 |
Cap, Valve (AYP part number) Price: $3.99 |
| 30 |
532126197 |
Washer 1-1/2 OD X 15/32 ID X .250 (AYP part number) Price: $4.99 |
| 31 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 32 |
532137140 |
Clutch, Electric (AYP part number) This part replaces 532126112. Price: $279.99 |
| 33 |
532140189 |
Pulley, Engine (AYP part number) This part replaces 532109841. Price: $29.99 |
| 35 |
874760644 |
Bolt, Hex 3/8-16 x 2-3/4 (AYP part number) Price: $3.99 |
| 36 |
532123674 |
Idler, Flat (AYP part number) This part replaces 532004859. Price: $17.99 |
| 37 |
532124965 |
SPACER T This part replaces 532004470. Price: $3.99 |
| 38 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 39 |
532109070 |
Keeper, Belt (AYP part number) Price: $3.99 |
| 40 |
532129921 |
Keeper, Belt Engine Lh Lt (AYP part number) Price: $3.99 |
| 42 |
532105730 |
Belt, Keeper, Engine R.H. (AYP part number) Price: $2.99 |
| 44 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 45 |
532132654 |
Rod, Brake Price: $15.15 |
| 46 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 47 |
532120183 |
Bearing, Nylon (AYP part number) Price: $2.99 |
| 48 |
532122424 |
Shaft, Foot Pedal, Asm. (AYP part number) Price: $21.56 |
| 49 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532124963. Price: $3.99 |
| 50 |
532071673 |
Cap, Plunger (AYP part number) Price: $3.99 |
| 51 |
532133261 |
Rod, Brake, Park (AYP part number) Price: $3.99 |
| 52 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 53 |
873680600 |
Locknut, 3/8-16 Price: $1.99 |
| 54 |
532123205 |
Retainer, Belt (AYP part number) Price: $3.99 |
| 55 |
812000039 |
Klip Ring (AYP part number) Price: $3.99 |
| 56 |
532110812 |
Washer, Hardened (AYP part number) Price: $3.10 |
| 58 |
532105709 |
Spring, Return, Clutch (AYP part number) Price: $7.99 |
| 60 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 61 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 62 |
532105706 |
Bearing (AYP part number) Price: $3.99 |
| 63 |
819211616 |
Washer, 21/32 x 1 x 16 Ga. (AYP part number) Price: $3.99 |
| 64 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 65 |
817720410 |
Screw, Hex Thread Cut 1/4-20 x 5/8 (AYP part number) Price: $5.99 |
| 66 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 67 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 68 |
874760612 |
Bolt, Hex 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 69 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 71 |
876020412 |
Pin, Cotter, 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 72 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 80 |
532125833 |
TIRE.TURF.SAVER.20X10-8 This part replaces 532122082. Price: $139.99 |
| 80A |
532007152 |
Tube (AYP part number) Price: $44.99 |
| 82 |
532108236 |
Bracket, Switch (AYP part number) Price: $2.99 |
| 83 |
817021008 |
Screw, Tap. Hex Hd. #10-24 x 1/2 Type T (AYP part number) Price: $1.99 |
| 84 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 87 |
532125891 |
Shield Heat Price: $3.33 |
| 88 |
819060916 |
Washer (AYP part number) Price: $3.33 |
| 89 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 92 |
819131316 |
Washer, 13/32 X 13/16 X 16 Ga. (AYP part number) Price: $2.99 |
| 95 |
532122758 |
Clamp Muffler (AYP part number) Price: $19.99 |
| 97 |
532121851 |
Spark Arrestor (AYP part number) Price: $26.83 |
| 98 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 99 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
