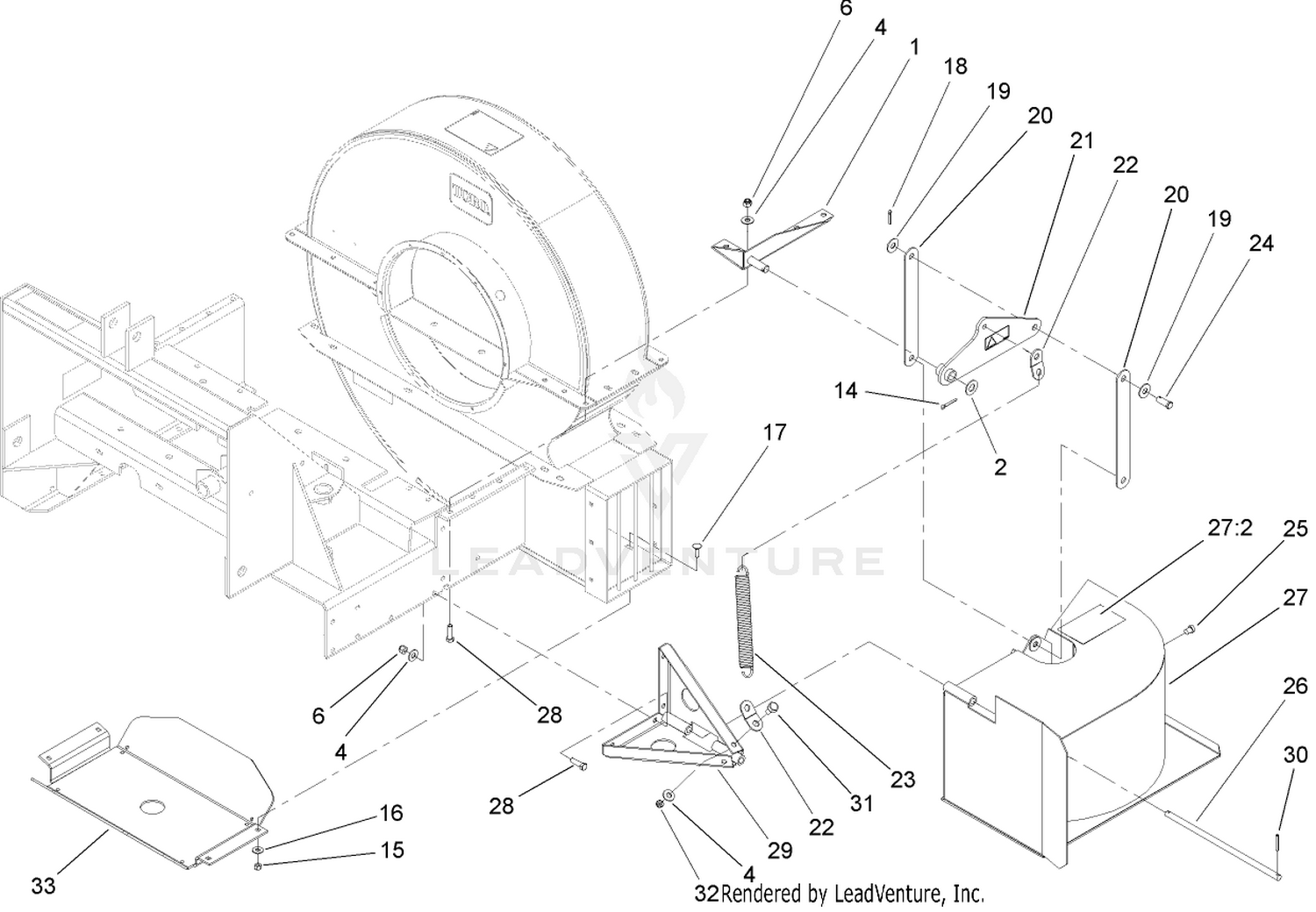

| Ref | Part Number | Description |
|---|
| 1 |
105-4741-01 |
PIVOT MOUNT ASM Price: $57.56 |
| 2 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 4 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 15 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 17 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 18 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 19 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 20 |
105-4731-01 |
LINK-LIFT, CHUTE Price: $11.54 |
| 21 |
105-0695 |
PIVOT-CHUTE Price: $45.36 |
| 22 |
105-4739-01 |
MOUNT-SPRING Price: $7.77 |
| 23 |
105-4825 |
SPRING Price: $44.75 |
| 24 |
283-60 |
PIN-CLEVIS Price: $6.45 |
| 25 |
105-4740 |
BUMPER-RUBBER Price: $9.69 |
| 26 |
105-4730 |
ROD-HINGE Price: $23.46 |
| 27 |
105-0617 |
CHUTE Price: $501.37 |
| 28 |
323-7 |
SCREW-HH Price: $0.65 |
| 29 |
105-4815-01 |
MOUNT-HINGE, CHUTE Price: $103.27 |
| 30 |
32121-103 |
PIN-SPRING Price: $1.40 |
| 31 |
46-3380 |
BOLT-SHOULDER Price: $9.57 |
| 32 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
