| Ref | Part Number | Description |
|---|
| 38H |
820174 |
Screw-Hex. Price: Call Us |
| 53 |
820077 |
Stud-Carburetor Mounting Price: Call Us |
| 122 |
820082 |
Spacer Price: Call Us |
| 125 |
825207 |

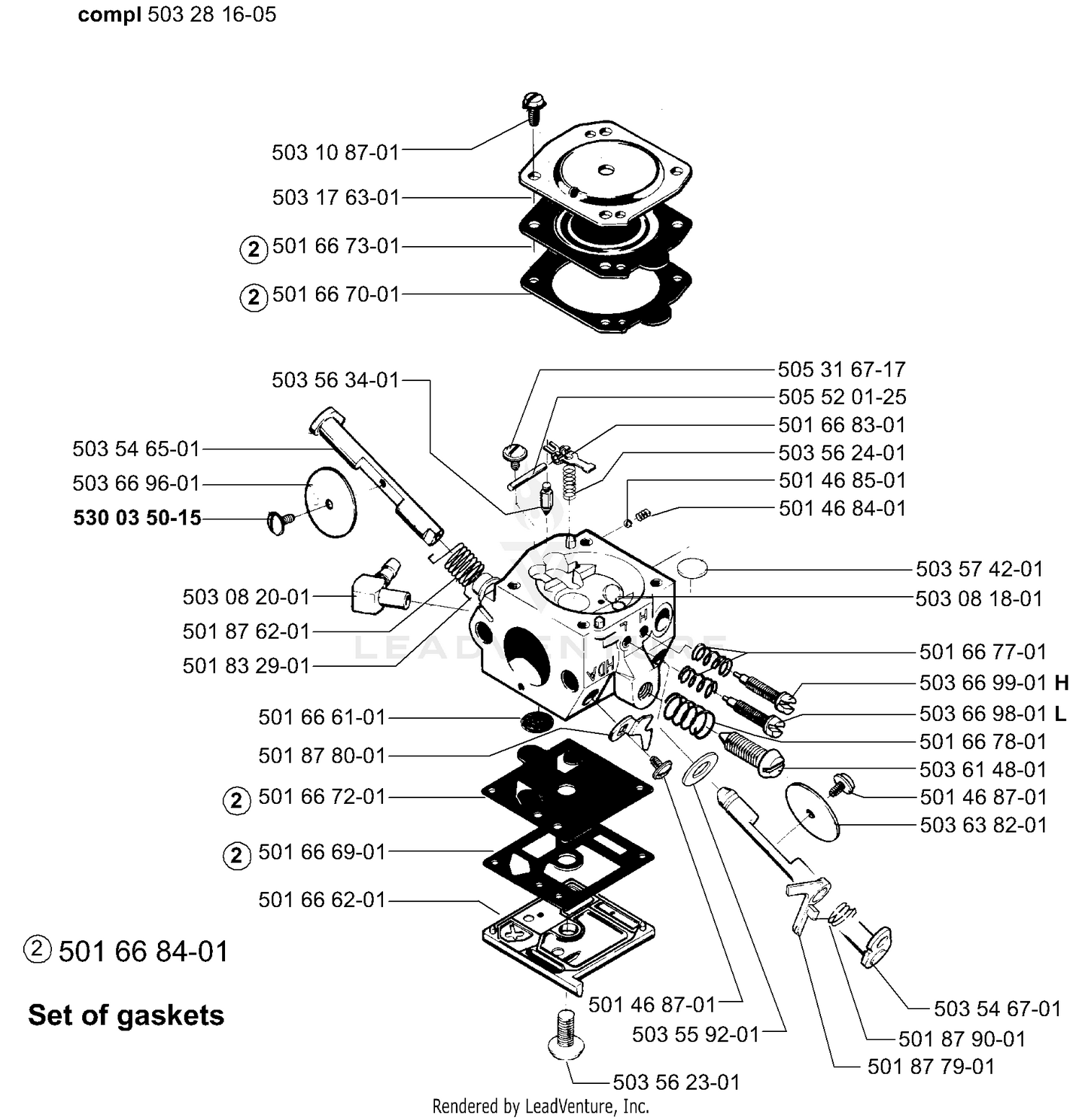

Carburetor Price: Call Us |
| 149C |
820011 |
Nut-Hex. Price: Call Us |
| 201 |
820171 |
Link-Mechanical Governor Price: Call Us |
| 209 |
820315 |
Spring-Governor Price: Call Us |
| 216 |
820173 |
Link-Choke Price: Call Us |
| 222 |
825062 |
Bracket-Control Price: Call Us |
| 227 |
825061 |
Lever-Governor Price: Call Us |
| 232 |
820172 |
Spring-Link Price: Call Us |
| 240 |
498688 |
Filter-Fuel Price: Call Us |
| 265 |
221535 |
Clamp-Casing Price: Call Us |
| 351 |
805762 |
Screw-HH Price: Call Us |
| 387 |
825005 |
Pump-Fuel Price: Call Us |
| 855 |
820466 |
Stud-Std. Price: Call Us |
| 1011 |
820184 |
Tube-Vent Price: Call Us |
| 501468401 |
501468401 |
SPRING Price: $6.99 |
| 501468501 |
501468501 |
BALL Price: $6.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666201 |
501666201 |
COVER, PUMP SIDE Price: $5.99 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667001 |
501667001 |
GASKET, METERING SIDE Price: $6.99 |
| 501667201 |
502254701 |
PUMP DIAPHRAGM This part replaces 501667201. Price: $19.99 |
| 501667301 |
501667301 |
METERING DIAPHRAGM Price: $64.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 501668401 |
501668401 |
REPAIR KIT DIAPHRAGM SET Price: $17.99 |
| 501832901 |
501832901 |
BUSHING Price: $2.99 |
| 501876201 |
501876201 |
Throttle Return Spring Price: $3.41 |
| 501877901 |
501877901 |
LEVER FAST IDLE Price: $1.41 |
| 501878001 |
501878001 |
THROTTLE STOP Price: $0.88 |
| 501879001 |
501879001 |
SPRING CHOKE Price: $0.53 |
| 503081801 |
503081801 |
Washer Price: $7.50 |
| 503082001 |
503082001 |
NIPPLE Price: $4.99 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503176301 |
503176301 |
COVER METERING DIAPHR. Price: $4.99 |
| 503281605 |
503281611 |
CARB. HDA-144-1 WALBRO This part replaces 503281605. Price: $99.99 |
| 503546501 |
503546501 |
THROTTLESHAFT ASS'Y Price: $6.76 |
| 503546701 |
503546701 |
CHOKESHAFT ASS'Y Price: $2.99 |
| 503559201 |
503559201 |
Price: Call Us |
| 503562301 |
503562301 |
Screw Price: $0.40 |
| 503562401 |
503562401 |
SPRING Price: $6.99 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503574201 |
503574201 |
WELCH PLUG Price: $6.99 |
| 503614801 |
503614801 |
IDLE SPEED SCREW Price: $2.99 |
| 503638201 |
503638201 |
CHOKE VALVE Price: $2.99 |
| 503669601 |
503669601 |
THROTTLE VALVE Price: $4.99 |
| 503669801 |
503669801 |
Price: Call Us |
| 503669901 |
503669901 |
HIGH SPEED NEEDLE Price: $2.44 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
