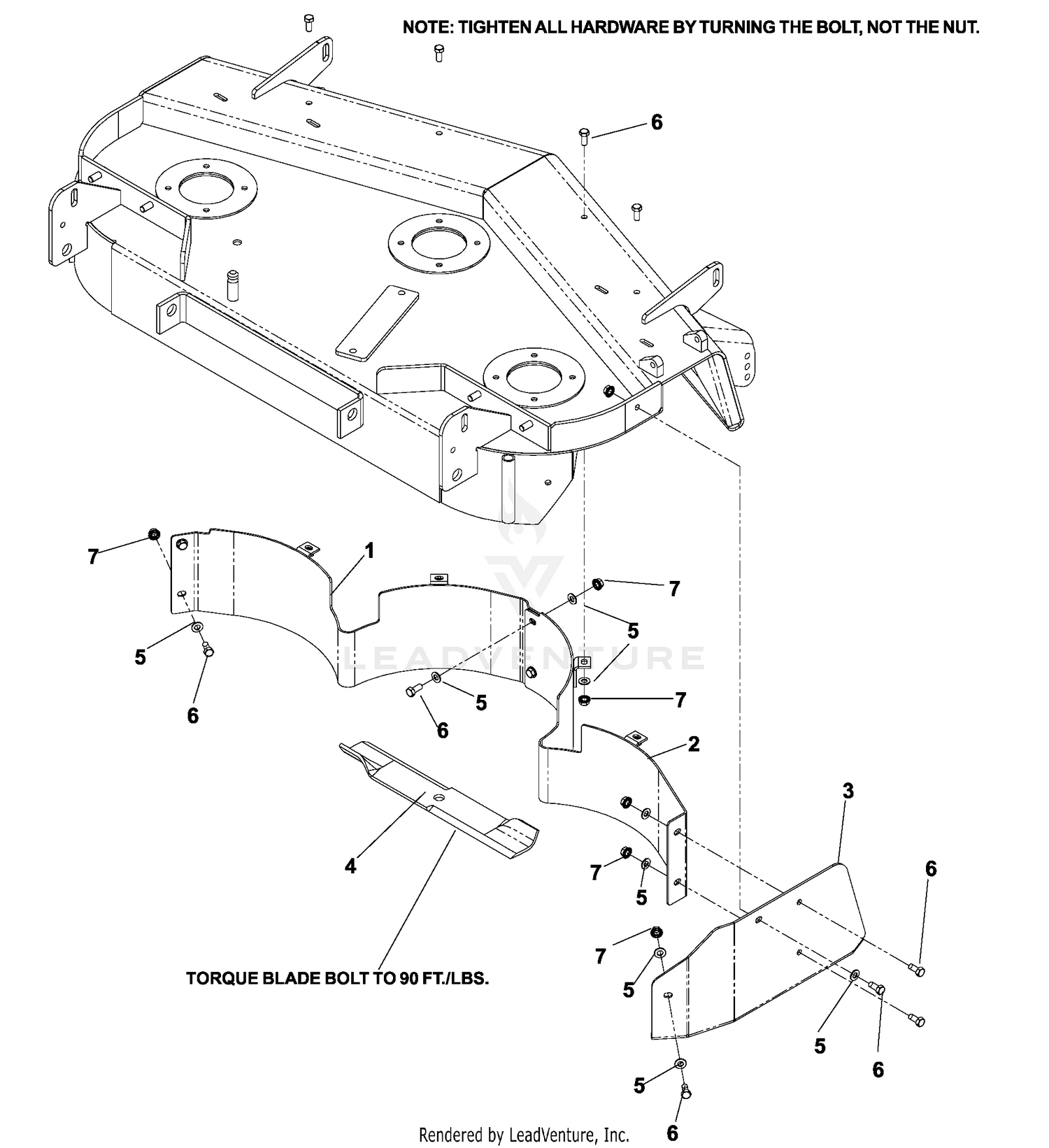

| Ref | Part Number | Description |
|---|
| 1 |
325-10 |
SCREW-HH Price: $1.82 |
| 1 |
539110700 |
MULCH BAFFLE, LEFT, 42 Price: $89.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
539110702 |
BAFFLE WLDMT, 42" R.H. MULCH Price: $99.99 |
| 3 |
256-285 |
FLG NYLINER #10L10-F Price: $7.12 |
| 3 |
539110704 |
MULCH CAP 42" Price: $74.99 |
| 4 |
539109681 |
BLADE 14-5/8" TUNNEL RAM This part replaces 539109699. Price: $17.99 |
| 4 |
61-4860 |
Carrier Frame R.H. (Incl. Ref. #14, 27 61) Price: Call Us |
| 5 |
321-2 |
SCREW-HH Price: $2.79 |
| 5 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 6 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 6 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 7 |
61-3600 |
LIFT TAB Price: $4.53 |
| 8 |
61-3000 |
SHAFT Price: $102.19 |
| 9 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
61-2830 |
DISCONTINUED Price: Call Us |
| 13 |
61-3610 |
WARNING DECAL Price: $16.67 |
| 14 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 15 |
61-3270-03 |
SPRING-COMPRESSION This part replaces 61-3270. Price: $12.24 |
| 16 |
62-7250 |
VINYL SLEEVE Price: $32.91 |
| 17 |
61-3820 |
DISCONTINUED Price: Call Us |
| 18 |
62-7240 |
DISCONTINUED Price: Call Us |
| 19 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 20 |
62-7300 |
CHAIN Price: $9.30 |
| 21 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 22 |
282-4 |
SHACKLE Price: $32.98 |
| 23 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 24 |
61-2930 |
DISCONTINUED Price: Call Us |
| 25 |
323-7 |
SCREW-HH Price: $0.65 |
| 26 |
92-1830-01 |
CARRIER FRAME WA-REAR This part replaces 61-0870. Price: $791.79 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 29 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 30 |
61-2890 |
DISCONTINUED Price: Call Us |
| 31 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 32 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 33 |
76-0350 |
HOUSING - BUSHING V Price: $45.25 |
| 34 |
56-9510 |
BUSHING ASM Price: $12.89 |
| 35 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 36 |
76-0390 |
DISCONTINUED Price: Call Us |
| 37 |
32121-23 |
PIN-ROLL Price: $1.33 |
| 38 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 39 |
76-0260 |
DISCONTINUED Price: Call Us |
| 40 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 41 |
98-1629 |
WASHER This part replaces 3256-54. Price: $0.89 |
| 42 |
76-0360 |
RETAINER CUP Price: $89.15 |
| 43 |
76-0410 |
SPRING-COMPRESSION Price: $5.92 |
| 44 |
3218-6 |
NUT-JAM Price: $0.61 |
| 45 |
76-0330 |
ROD WA Price: $89.49 |
| 47 |
76-0300 |
DISCONTINUED Price: Call Us |
| 48 |
92-1831 |
CARRIER FRAME WA - LH This part replaces 61-0880. Price: $753.01 |
| 49 |
325-4 |
SCREW-HH Price: $0.95 |
| 50 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 51 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 52 |
61-2880 |
DISCONTINUED Price: Call Us |
| 53 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 54 |
283-40 |
PIN-CLEVIS Price: $2.85 |
| 55 |
58-6520 |
DECAL-GREASE Price: $2.57 |
| 56 |
3290-322 |
PIN-HAIR Price: $1.09 |
| 57 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 58 |
61-2900 |
DISCONTINUED Price: Call Us |
| 59 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 60 |
76-0370 |
BOLT ASSY Price: $26.50 |
| 61 |
61-0710 |
RUBBER BUSHING ASM Price: $11.61 |
| 62 |
61-1370 |
HUB MTG SPACER Price: $5.53 |
