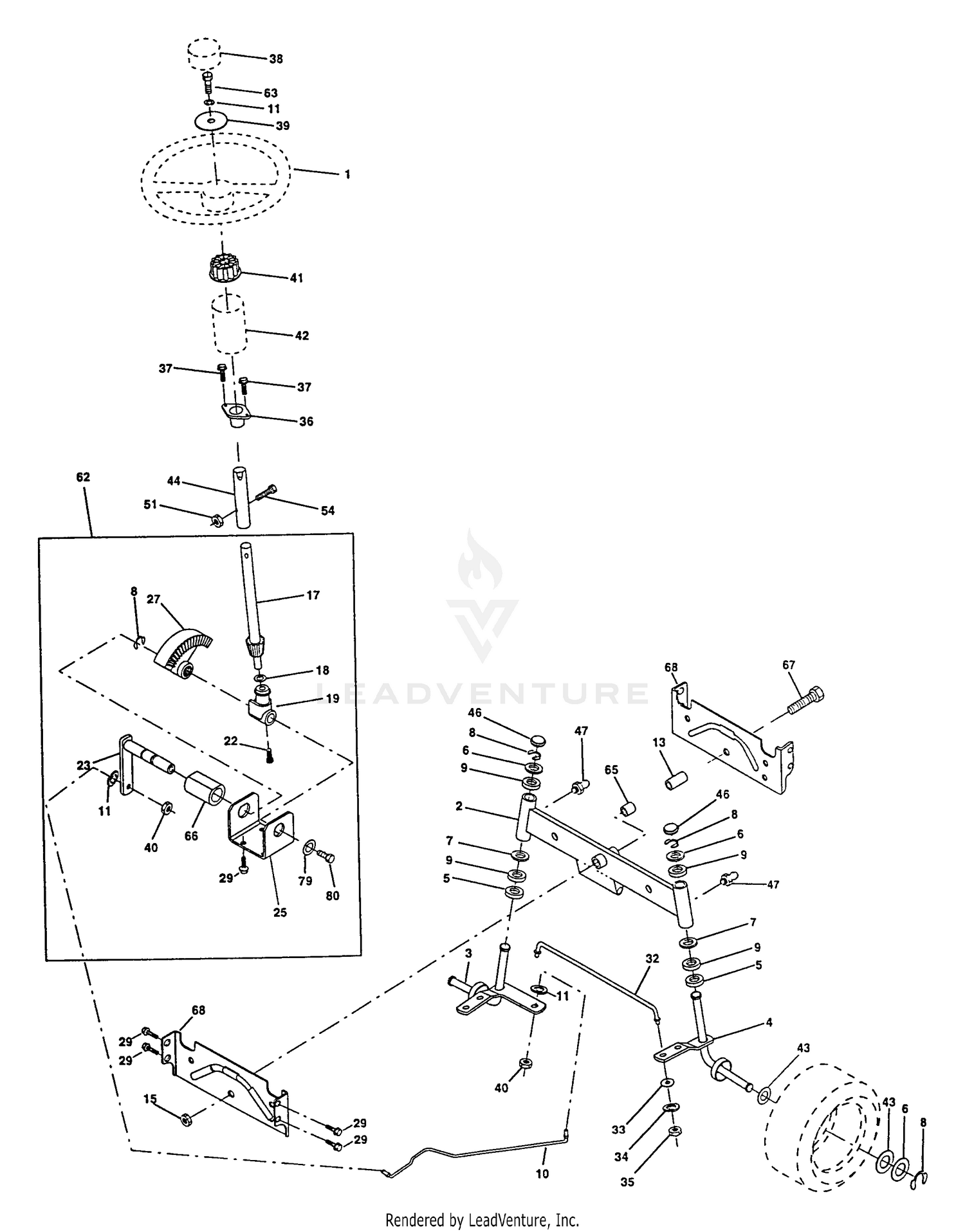

| Ref | Part Number | Description |
|---|
| 1 |
121472X |
Wheel Steering Price: Call Us |
| 1 |
233-21 |
KNOB Price: $12.99 |
| 2 |
154427 |
Axle Asm Stmp Dropped STLT Price: Call Us |
| 2 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 3 |
156483 |
Spindle Asm LH Price: Call Us |
| 3 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 4 |
105-7806 |
LATCH-LEVER, VALVE Price: $35.46 |
| 4 |
157473 |
Spindle Asm RH Price: Call Us |
| 5 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 6 |
21-9010 |
LEVER-VALVE, PIVOT MOUNT Price: $28.78 |
| 7 |
19272016 |
Washer 27/32 X 1-1/4 X 16 Ga Price: Call Us |
| 7 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 9 |
92-5512 |
FITTING-STR This part replaces 95-8849. Price: $21.46 |
| 10 |
100-6586 |
CYLINDER-HYD, 2.5 INCH Price: $858.08 |
| 10 |
156438 |
Link Drag Extended Stamped Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
105-7839-03 |
VALVE LEVER ASM Price: $102.95 |
| 12 |
100-6591 |
CYLINDER-HYD, 3 INCH Price: $968.00 |
| 13 |
154779 |
Bearing Axle STLT/GT Price: Call Us |
| 14 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 15 |
353-512 |
PLUG Price: $15.26 |
| 15 |
73901000 |
Nut Lock Flange 5/8-11 Unc Price: Call Us |
| 16 |
283-17 |
PIN-CLEVIS Price: $4.89 |
| 17 |
106-8071 |
VALVE ASM This part replaces 106-8071-01. Price: $481.47 |
| 17 |
156546 |
Shaft Asm Strg Price: Call Us |
| 18 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 18 |
57079 |
Washer Thrust 515x 750x 033 Price: Call Us |
| 19 |
160395 |
Support Shaft Price: Call Us |
| 19 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 20 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 21 |
92-7834 |
HOSE-HYD Price: $11.20 |
| 22 |
165857 |
Screw Hex Wsh Hd Torx Price: Call Us |
| 22 |
340-110 |
FITTING-SWIVEL, 90 DEG Price: $49.98 |
| 23 |
165851 |
Shaft Asm Pittman Price: Call Us |
| 23 |
63-9260 |
MANIFOLD VALVE ASM Price: $136.31 |
| 24 |
63-8990 |
HOSE-HYD Price: $57.67 |
| 25 |
154406 |
Bracket Steering Price: Call Us |
| 25 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 26 |
92-7833 |
HOSE ASM Price: $59.90 |
| 27 |
136874 |
Gear Sector Price: Call Us |
| 29 |
17490612 |
Screw Thdrol 3/8-16x3/4 Ty-tt Price: Call Us |
| 32 |
139929 |
Rod Tie Ball J Adj VGT Price: Call Us |
| 33 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 34 |
10040500 |
Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us |
| 35 |
73810500 |
Locknut 5/16-24 Unf 3847 Price: Call Us |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
126805X |
Insert Cap Strg Wh Au Price: Call Us |
| 39 |
19133808 |
Washer 13/32 X 2-3/8 X 8 Ga Price: Call Us |
| 40 |
7810H |
Lock nut Price: Call Us |
| 41 |
100711L |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054 |
Boot Steering Dash Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
153720 |
Extension Steering Shaft LR/LT Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
6855M |
Fitting Grease Price: Call Us |
| 51 |
73800500 |
Nut Lock Hex w/ins 5/16-18 Price: Call Us |
| 54 |
74780520 |
Bolt Fin Hex 5/16-18 Unc x 1-1/4 Price: Call Us |
| 62 |
167902 |
Kit, Steering Assembly Svc Price: Call Us |
| 63 |
74780616 |
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 Price: Call Us |
| 65 |
154780 |
Spacer Axle Price: Call Us |
| 66 |
154404 |
Bearing Arm Pittman Price: Call Us |
| 67 |
74781044 |
Bolt, Fin Hex 5/8-11 UNC x 2-3/4 Price: Call Us |
| 68 |
154429 |
Axle, Brace Price: Call Us |
| 79 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
