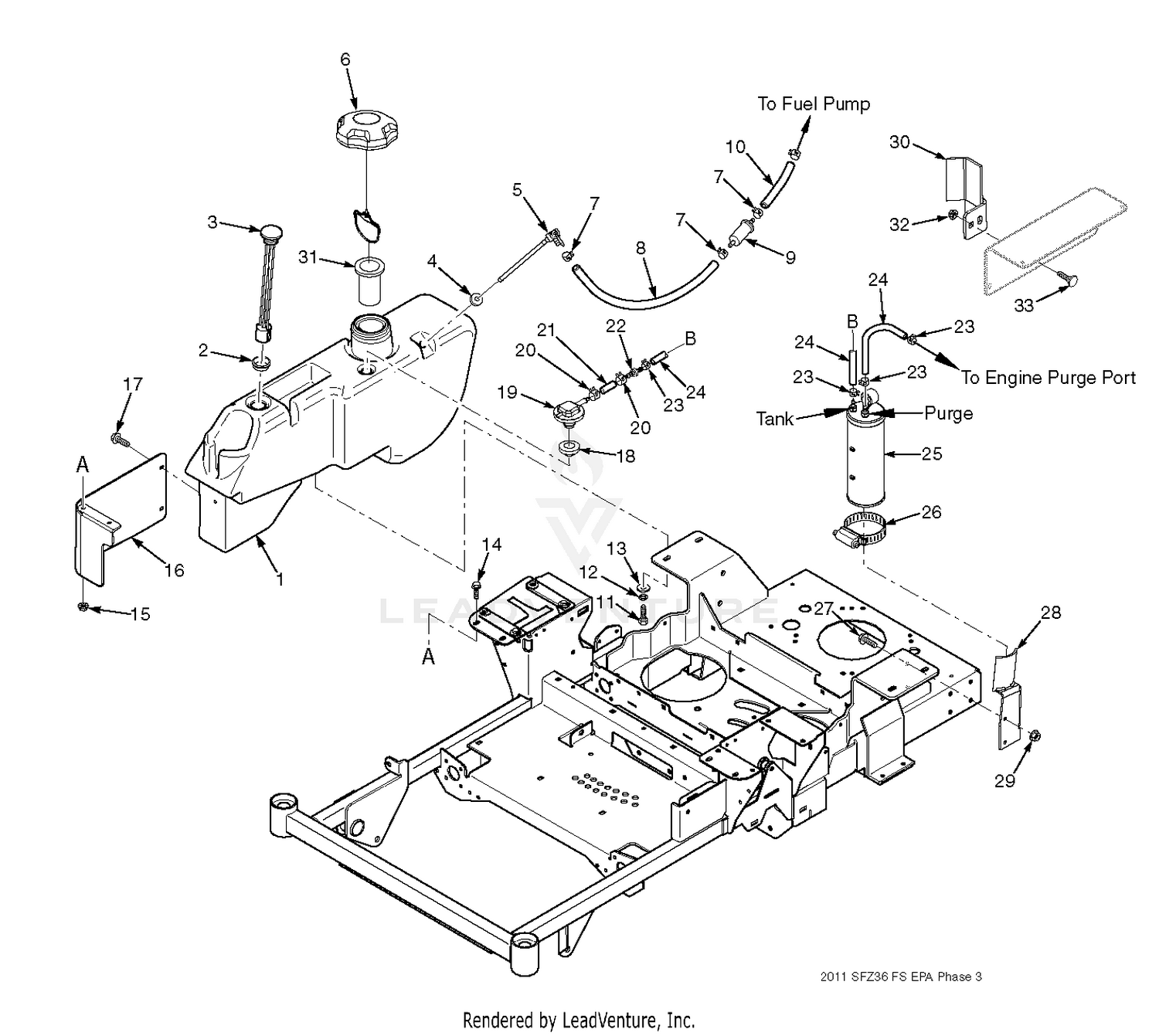

| Ref | Part Number | Description |
|---|
| 1 |
462291 |
Fuel Tanks Assembly Price: Call Us |
| 2 |
483536 |
Grommet Price: Call Us |
| 3 |
484243 |
Fuel Gauge Assembly Price: Call Us |
| 4 |
482571 |
Bushing, 0.56 Dia. Viton Price: Call Us |
| 5 |
483557 |
Fuel Tube Assembly Price: Call Us |
| 6 |
484286 |
Fuel Cap, Tethered Price: Call Us |
| 7 |
48059-01 |
Clamp, Fuel Hose 1/4" ID Price: Call Us |
| 11 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 12 |
04030-03 |
Lockwasher, 5/16- Spring Price: Call Us |
| 13 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 14 |
04017-05 |
Bolt, Hex Head 1/4-20 x 3/4" Serrated Flange Price: Call Us |
| 15 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 16 |
424822 |
Control Cover, RH Price: Call Us |
| 17 |
04017-04 |
Bolt, Hex Head 1/4-20 x 1/2" Serrated Flange Price: Call Us |
| 18 |
484285 |
Grommet, Viton Price: Call Us |
| 19 |
484333 |
Remote Vent Price: Call Us |
| 20 |
48059-02 |
Clamp, Fuel Hose 7/32 ID Price: Call Us |
| 22 |
484343-01 |
Mender, 1/4 x 3/16 w/0.02 Hole Price: Call Us |
| 23 |
48059-05 |
Clamp, Vapor Recovery Hose 3/16" Price: Call Us |
| 25 |
484342 |
Carbon Canister Price: Call Us |
| 26 |
48136-17 |
Clamp, Hose Price: Call Us |
| 27 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 28 |
452230 |
Bracket Weldment Price: Call Us |
| 29 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 30 |
452231 |
Guard Weldment, Canister Price: Call Us |
| 31 |
484279-01 |
Tube, Fuel Tank Insert Price: Call Us |
| 32 |
04019-03 |
Nut, 5/16-18 Serrated Flange Price: Call Us |
