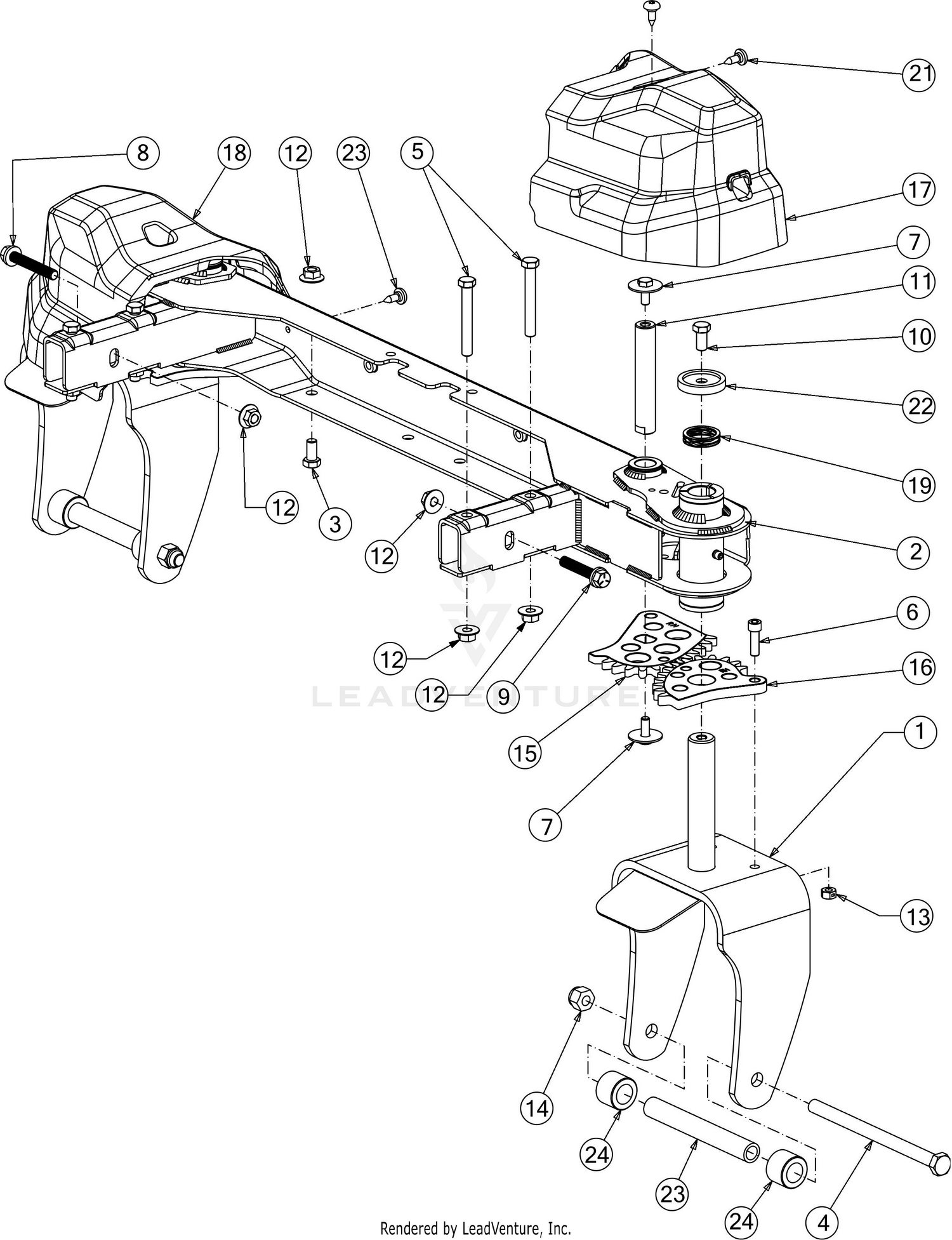

| Ref | Part Number | Description |
|---|
| 1 |
603-05059D-0637 |
CASTER WHEEL YOKE This part replaces 603-05059C-0637. Price: $132.81 |
| 2 |
903-05294A |
FRONT AXLE ASSEMBLY (W/FLANGE BEARING) This part replaces 903-05106. Price: $480.35 |
| 3 |
710-0216 |
HEX SCREW 3/8-16 X .75 Price: $3.93 |
| 4 |
710-11661 |
HEX HEAD CAP SCREW 1/2 13-7.25 GR5 This part replaces 710-04652. Price: $5.68 |
| 5 |
710-04656A |
SCREW 3/8-16 X 2.75 GR5 Price: $5.68 |
| 6 |
710-05398 |
SCREW 5/16-18 X 1 Price: $2.77 |
| 7 |
710-06041 |
SCREW 5/16-18 X.75 GR5 Price: $3.74 |
| 8 |
710-06045 |
SCREW 3/8-16 X 2.25 GR5 Price: $4.69 |
| 9 |
710-06093 |
SCREW 3/8-16 X 2.00 GR5 Price: $4.29 |
| 10 |
710-3119 |
SCREW 3/8-16 X .75 GR 5 Price: $5.91 |
| 11 |
711-06081A |
STEERING GEAR PIVOT SHAFT Price: $19.74 |
| 12 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 13 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 912-3009. Price: $5.99 |
| 14 |
912-3058 |
HEX NUT CENTER Price: $4.92 |
| 15 |
717-04952 |
STEERING GEAR Price: $47.01 |
| 16 |
717-05133 |
STEERING SPUR GEAR 13T Price: $45.15 |
| 17 |
731-09291A |
AXLE COVER (RH) Price: $17.84 |
| 18 |
731-09320A |
AXLE COVER (LH) Price: $17.84 |
| 19 |
736-05033A |
WAVE WASHER Price: $4.19 |
| 21 |
738-04549A |
TORX SHOULDER SCREW 1/4-20 Price: $6.28 |
| 22 |
738-05093 |
SHOULDER SPACER 1.75 OD Price: $5.59 |
| 23 |
750-04775A |
CASTER SPACER Price: $24.72 |
