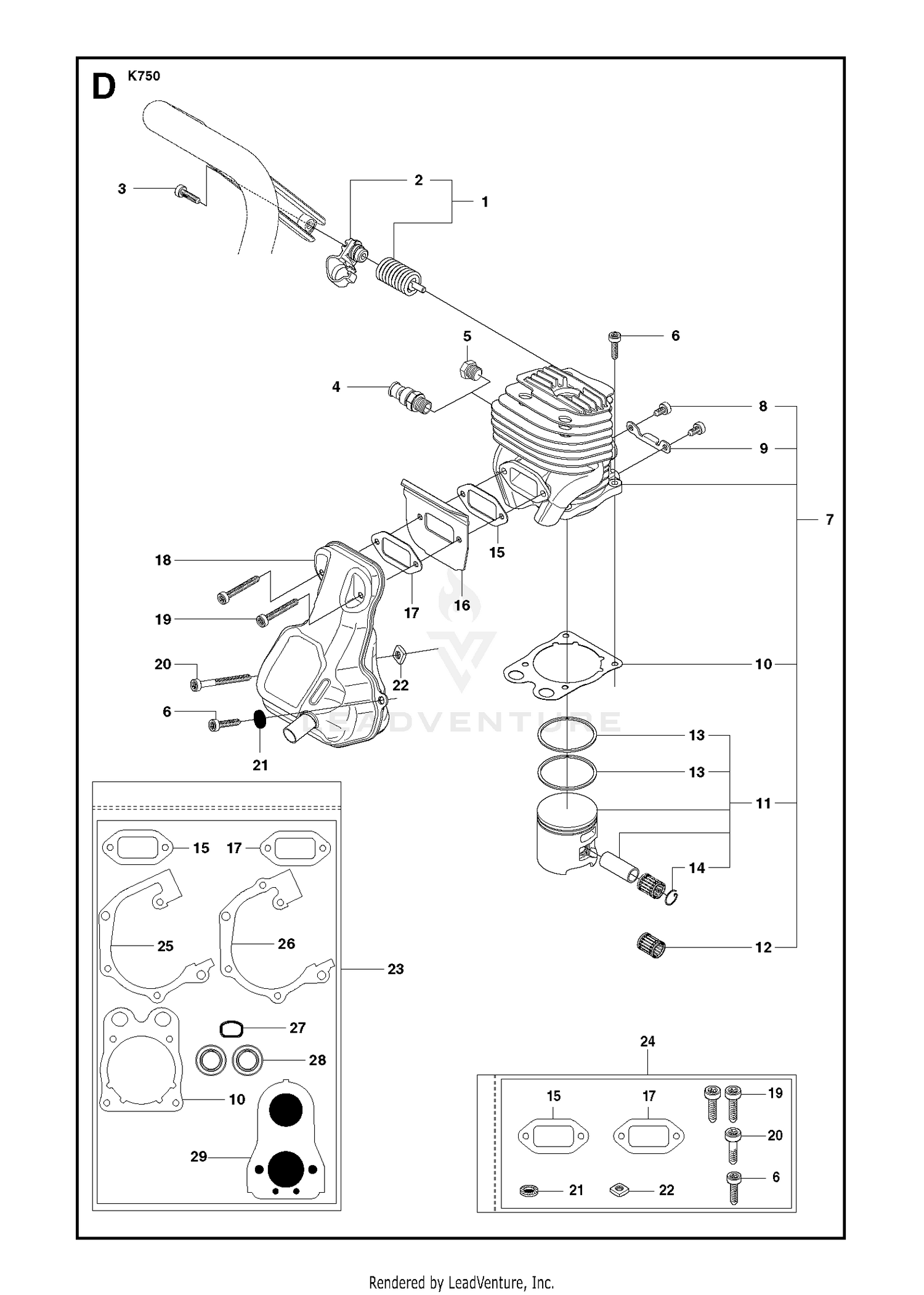

| Ref | Part Number | Description |
|---|
| 2 |
505424501 |
SPRING HOLDER This part replaces 505424401. Price: $32.99 |
| 3 |
544061201 |
SCREW Price: $3.99 |
| 4 |
503715301 |
DECOMPRESSION VALVE Price: $29.99 |
| 5 |
503552201 |
CYLINDER PLUG Price: $6.99 |
| 6 |
503215325 |
SCREW Price: $3.99 |
| 8 |
503215316 |
SCREW Price: $3.99 |
| 9 |
506368801 |
BRACKET Price: $3.99 |
| 10 |
506376701 |
GASKET Price: $7.99 |
| 12 |
577572401 |
NEEDLE BEARING PISTON PIN 12X1 This part replaces 503255601. Price: $11.99 |
| 13 |
522990101 |
PISTON RING This part replaces 503289047. Price: $19.99 |
| 14 |
737431200 |
WRIST PIN CLIP Price: $3.99 |
| 15 |
506412301 |
GASKET Price: $4.99 |
| 16 |
588915101 |
PLATE This part replaces 506375802. Price: $9.99 |
| 17 |
588932501 |
GASKET K760 This part replaces 506376902. Price: $5.99 |
| 18 |
587668702 |
MUFFLER KIT This part replaces 506364204. Price: $44.99 |
| 19 |
503215340 |
SCREW Price: $3.99 |
| 20 |
503215356 |
SCREW Price: $3.99 |
| 22 |
503226504 |
NUT Price: $4.99 |
| 25 |
506377002 |
GASKET Price: $4.99 |
| 26 |
506377003 |
GASKET Price: $4.99 |
| 27 |
544219302 |
INSERT Price: $3.99 |
| 28 |
503260204 |
SEALING RING Price: $11.99 |
| 29 |
506376804 |
GASKET CARBURETOR This part replaces 506376803. Price: $3.99 |
