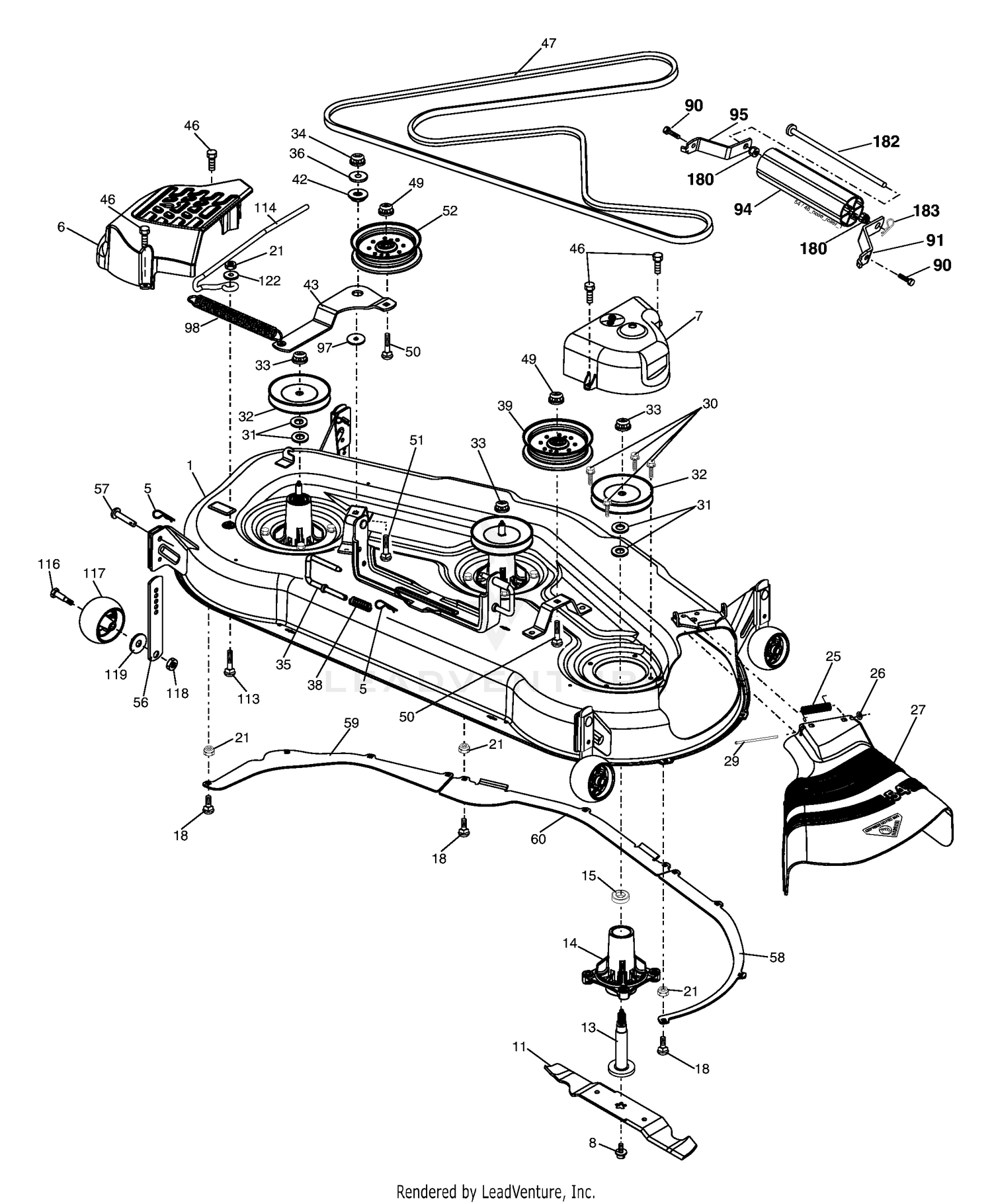

Mower Deck

Mower Deck

Parts (75)

RefPart NumberDescription
1 532196498 KIT.SVC.DECK.WLD.54" This part replaces 532196838. Price: $409.99
1 93-8742 FOOTPAD-BRAKE Price: $27.95
4 63-7880 PIN-LATCH, BRAKE Price: $6.04
5 532085902 RETAINER SPRING This part replaces 532124670. Price: $1.99
5 92-7530 CABLE-BRAKE, LH Price: $132.98
6 532187297 Cover Mandrel LH Price: $22.99
6 92-7529 CABLE-BRAKE, RH Price: $132.98
7 3256-69 WASHER-FLAT Price: $0.62
7 532188187 Cover Mandrel RH Price: $22.99
8 32121-16 PIN-SPRING Price: $0.41
8 532193003 BOLT, BLADE This part replaces 532174365. Price: $5.99
9 283-58 PIN-CLEVIS Price: $3.87
10 75-1440-03 PEDAL-BRAKE, LH Price: $207.74
11 3272-10 PIN-COTTER Price: $0.25
12 32121-50 PIN-SPRING Price: $1.21
13 532187291 Shaft Asm. w/Lower Bearing Price: $17.99
13 75-1430 RH BRAKE PEDAL ASM Price: $255.51
14 322-3 SCREW-HH Price: $0.79
14 532187281 Mandrel Housing Price: $20.99
15 532110485 Bearing, Ball, Mandrel Price: $7.99
15 75-1470 PIN-PIVOT, BRAKE Price: $45.68
16 32128-20 NUT-HF Price: $0.99
17 3290-378 TIE-CABLE Price: $0.79
18 256-236 BEARING-MOUNT, FLANGE Price: $27.99
18 872140505 Bolt Carr 5/16-18 x 5/8 Price: $2.69
19 105-0138-03 STABILIZER Price: $159.95
20 3256-26 WASHER-FLAT Price: $0.39
21 3234-38 SCREW-HHF Price: $3.33
21 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69
22 100-3868-03 BRACKET-TIPPER Price: $64.55
23 3234-1 SCREW-HHF Price: $1.62
24 75-5390 ROLLER Price: $56.69
25 539107609 SPRING.TORSION This part replaces 532178102. Price: $1.99
25 75-5400 PIN-ROLLER Price: $26.06
26 532110452 Nut, Push Price: $1.99
27 532187257 DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $50.99
29 532131491 Rod, Hinge Price: $1.99
30 532173984 Screw Thd Roll Price: $2.99
31 532187690 Washer, Spacer Mower Vented Price: $1.99
32 532173436 Pulley, Mandrel Price: $7.99
33 532400234 NUT, LOCK This part replaces 532178342. Price: $3.99
34 873680600 Nut Price: $1.99
35 532188635 Pin Suspension Rear Price: $14.99
36 819131316 Washer 13/32 x 13/16 x 16 Ga. Price: $2.99
38 532188657 Spring Compression Price: $3.99
39 532187284 Pulley, Idler, Stationary Price: $28.99
42 532165723 Spacer Retainer This part replaces 532122052. Price: $2.99
43 532196216 Arm, Idler This part replaces 532187278. Price: $101.99
46 532137729 Screw, Thdroll. 1/4-20 x 5/8 Price: $2.49
47 532191273 V-Belt, Mower, Secondary Price: $55.99
49 532409148 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69
50 872110616 Bolt, Carr. 3/8-16 x 2 Price: $3.99
51 872140614 BOLT This part replaces 872110610. Price: $2.99
52 532188460 Pulley Idler clutching Price: $31.99
56 532155986 Bar Pnt Adj. Price: $5.99
57 532156941 Pin Head Rivet Price: $2.99
58 532187342 Baffle Right Price: $12.99
59 532187344 Baffle Left Price: $14.99
60 532187607 Baffle Center Price: $17.99
90 874780516 BOLT FIN HEX 5/16-18 X 1 This part replaces 874760516. Price: $3.99
91 532180535 Bracket Asm N Roller RH Price: $2.99
94 532176066 Roller Nose 48" Price: $6.99
95 532180534 Bracket N Roller LH Price: $2.99
97 532413524 WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99
98 532187282 Spring Clutch Drive Price: $9.99
113 872110508 Bolt Rdhd Sqnk 5/16-18 unc x 3/4 Price: $2.99
114 532187556 Rod Tension Relief Price: $12.99
116 532193406 Bolt, Shoulder Price: $1.99
117 532174873 Gauge Wheel Price: $7.99
118 873680600 Nut This part replaces 873930600. Price: $1.99
119 734117201 WASHER This part replaces 819121414. Price: $1.99
122 532187557 Bushing Tension Relief Price: $2.99
180 873800500 Nut 5/16-18 Price: $2.69
182 532179127 Rod Roller Nose Narrow Price: $4.49
183 532003146 SPRING RETAINER This part replaces 532163552. Price: $1.99
