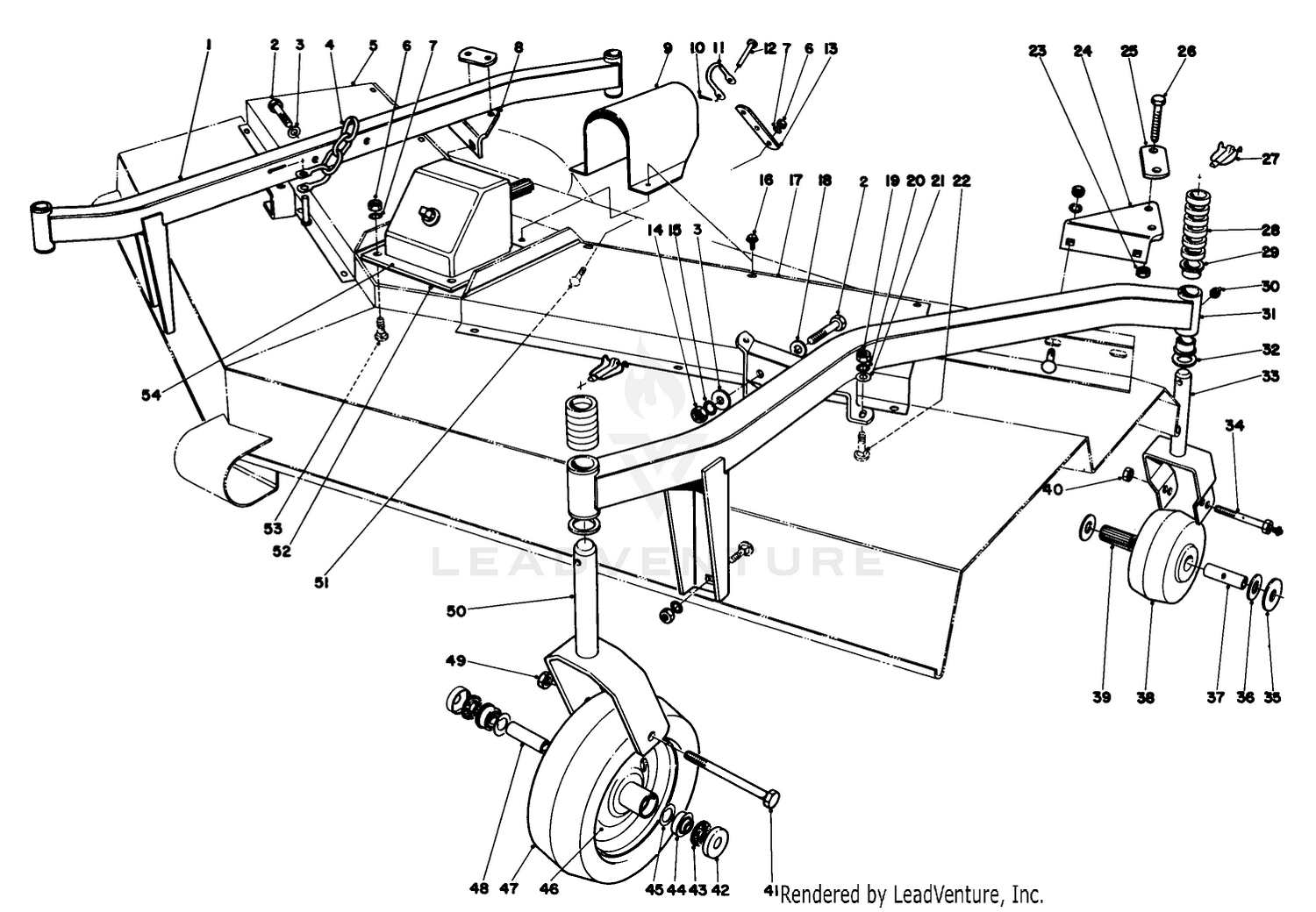

| Ref | Part Number | Description |
|---|
| 1 |
26-1490 |
RH CASTOR ARM ASM Price: $643.06 |
| 2 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 3 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 4 |
3-1365 |
CHAIN This part replaces 21-3160. Price: $72.97 |
| 5 |
26-1890 |
DISCONTINUED Price: Call Us |
| 6 |
3217-7 |
NUT-HEX Price: $0.28 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
39-3340-01 |
BRACKET-ARM CLAMP This part replaces 39-3340. Price: $101.90 |
| 9 |
93-9838-03 |
SHROUD-SHAFT, DRIVE This part replaces 26-2250. Price: $56.70 |
| 10 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 11 |
5-2942 |
SHACKLE Price: $16.99 |
| 12 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 13 |
21-3770-01 |
LIFT STRAP-DECK, RIGHT REAR This part replaces 21-3770. Price: $15.29 |
| 14 |
3217-8 |
NUT-HEX Price: $1.34 |
| 15 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 16 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 17 |
26-1900 |
DISCONTINUED Price: Call Us |
| 18 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 19 |
3217-9 |
NUT-HH Price: $0.37 |
| 20 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 21 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 22 |
3233-1 |
SCREW-CARR Price: $1.42 |
| 23 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 24 |
39-7450-01 |
BRACKET-CLAMP, LH This part replaces 39-7450. Price: $100.55 |
| 25 |
39-3330-01 |
PLATE-CLAMP, CASTOR ARM This part replaces 39-3330. Price: $36.10 |
| 26 |
325-13 |
SCREW-HH Price: $3.57 |
| 27 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 28 |
26-1580 |
SPACER 1/2 IN Price: $9.91 |
| 29 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 30 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 31 |
26-1430 |
LH CASTOR ARM ASM Price: $643.06 |
| 32 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 33 |
99-5690 |
CASTOR FORK ASM This part replaces 26-1560. Price: $183.50 |
| 34 |
21-3870 |
AXLE ASM Price: $14.07 |
| 35 |
46-8970 |
WASHER Price: $5.29 |
| 36 |
46-9030 |
BEARING RETAINER Price: $4.91 |
| 37 |
21-1030 |
SPANNER BUSHING Price: $17.87 |
| 38 |
21-3860 |
WHEEL Price: $85.23 |
| 39 |
21-3850 |
ROLLER BRG W/46-8960 Price: $15.21 |
| 40 |
3296-19 |
NUT-HEX This part replaces 32146-11. Price: $0.65 |
| 41 |
325-22 |
SCREW-HH This part replaces 325-21. Price: $4.26 |
| 42 |
3-6778 |
AXLE SLINGER Price: $1.98 |
| 43 |
3-6777 |
WASHER Price: $1.98 |
| 45 |
3-6775 |
WASHER Price: $1.21 |
| 47 |
46-6230 |
DISCONTINUED Price: Call Us |
| 48 |
3-6776 |
SPACER Price: $9.65 |
| 49 |
32146-13 |
NUT-HEX Price: $3.49 |
| 50 |
26-1530-01 |
FORK-CASTOR This part replaces 26-1530. Price: $178.41 |
| 51 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 52 |
38-5780 |
SPACER *R Price: $16.56 |
| 53 |
3231-22 |
SCREW-CARR Price: $0.72 |
