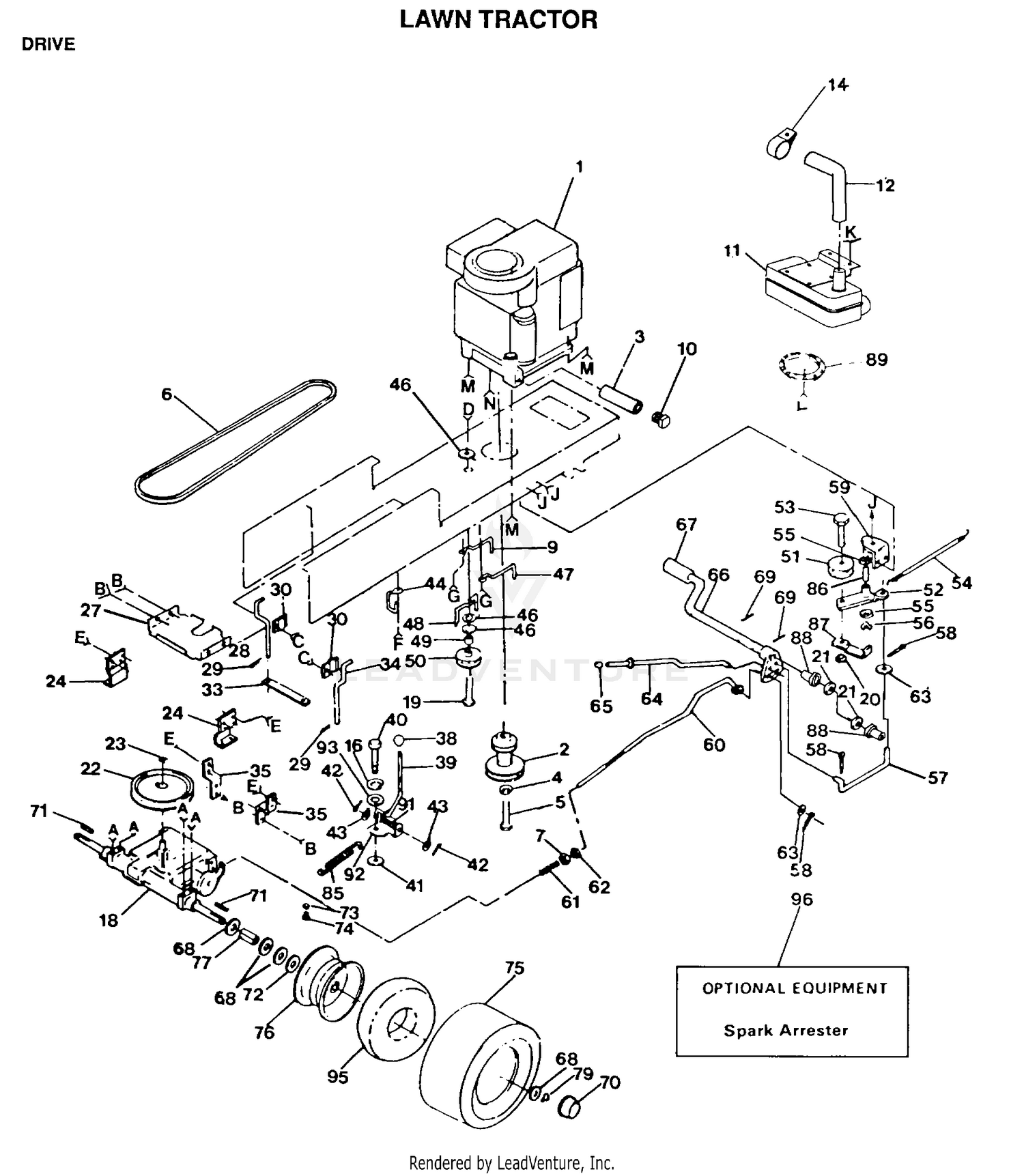

DRIVE

DRIVE

Parts (98)

RefPart NumberDescription
1 124401X ENGINE Price: Call Us
2 105731X SUB= 137326 Price: Call Us
2 84-8500-01 LEVER-PTO Price: $107.85
3 84-8520-01 BRACKET-SWITCH, PTO Price: $11.07
4 10040700 LOCKWASHER Price: Call Us
4 283-42 PIN-CLEVIS Price: $40.05
5 3272-6 PIN-COTTER Price: $0.25
5 74770720 SUB= 71130720 Price: Call Us
6 125907X BELT-V.90.0.GD.DR Price: Call Us
6 43-3860 SHAFT-PIVOT, PTO Price: $55.10
7 106-4383 BELT-V, BANDED Price: $40.02
7 73800600 NUT Price: Call Us
8 3256-28 WASHER-FLAT Price: $0.48
9 121218X KEEPER BELT ENGLH Price: Call Us
9 3272-22 PIN-COTTER Price: $0.61
10 3-6498 WASHER-THRUST Price: $4.58
11 123941X MUFFLER Price: Call Us
11 3-8812 SPACER-SPRING, ANCHOR Price: $15.47
12 123420X TUBE, EXHAUST Price: Call Us
12 3256-6 WASHER-FLAT Price: $0.34
13 5-1747 SPRING-ADJUSTMENT Price: $5.76
14 92-5727 SCREW-LOCK, PATCH Price: $0.92
15 92-5723 BUSHING-FORK, PTO Price: $4.74
16 10040400 LOCKWASHER Price: Call Us
16 110-9681-03 FORK-PTO This part replaces 92-4060-03. Price: $195.34
17 27-7370 PTO BRAKE ASM Price: $218.20
18 120898X SUB= 137367 Price: Call Us
18 93-3769 PIN-CLEVIS Price: $4.14
19 3296-28 NUT-LOCK, NI Price: $0.61
19 74760644 BOLT Price: Call Us
20 3272-11 PIN-COTTER Price: $0.99
20 73680600 SUB= 73690600 Price: Call Us
21 19211616 WASHER LT Price: Call Us
21 32121-9 PIN-ROLL, SLOTTED Price: $2.56
22 123666X PULLEY TRANS Price: Call Us
22 21-1830 SPRING-EXTENSION Price: $34.62
23 12000028 SUB= 2267J Price: Call Us
23 5-0701 ANCHOR Price: $4.07
24 109167X BRACKET LT Price: Call Us
24 212-93 CLAMP-CASING Price: $3.46
25 21-1600 CLAMP-LEVER, PTO Price: $279.65
26 3253-21 WASHER-LOCK Price: $0.28
27 108171X BRKT SUPPORT LT Price: Call Us
27 32104-6 SCREW-HH, TAP Price: $3.19
28 123662X KEEPER BELT LH Price: Call Us
29 321-4 SCREW-HH Price: $0.99
29 4921H SPRING.RETAINER Price: Call Us
30 106190X CLAMP LT Price: Call Us
30 86-7050 BRACKET-SWITCH, ACTUATOR Price: $16.28
31 3296-16 NUT-LOCK, NI Price: $1.39
32 43-9071 LIMIT SWITCH ASM Price: $182.60
33 123770X STRAP LOCATOR Price: Call Us
34 123663X KEEPER BELTRH Price: Call Us
35 121520X STRAP TORQUE Price: Call Us
38 106279X CONTROL KNOB LT Price: Call Us
39 124461X ROD SHIFTER Price: Call Us
40 71040412 SUB= 74550412 Price: Call Us
41 105701X WASH-SHFT PLT LT Price: Call Us
42 76020416 PIN COTTER 1/8 Price: Call Us
43 19151216 WASHER Price: Call Us
44 104777X SUB= 140312 Price: Call Us
48 109070X BELT KEEPER LT Price: Call Us
49 4470J SPACER T Price: Call Us
50 123674X PULLEY.IDLER.FLAT Price: Call Us
51 123766X SUB= 139245 Price: Call Us
52 123789X ARM IDLER Price: Call Us
53 74760624 SUB= 74930624 Price: Call Us
55 110812X WASHER LT Price: Call Us
56 12000039 KLIP RING Price: Call Us
58 76020412 COTTER PIN Price: Call Us
59 123102X BRKT ASM Price: Call Us
60 110437X BRAKE ROD LT Price: Call Us
61 106888X SPRING ROD LT Price: Call Us
62 73350600 NUT Price: Call Us
63 19131316 WASHER Price: Call Us
64 105758X SUB= 128904 Price: Call Us
65 7733J SUB= 71673 Price: Call Us
66 122424X SUB= 149001 Price: Call Us
67 8883R PEDAL COVER T Price: Call Us
68 121749X WASHER Price: Call Us
69 1572H SUB= 2882J Price: Call Us
70 104757X HUB CAP Price: Call Us
71 123583X SQUARE KEY Price: Call Us
72 121748X WASHER Price: Call Us
73 59192 VALVE CAP Price: Call Us
74 65139 VALVE STEM LT Price: Call Us
75 106228X SUB= 106228X417 Price: Call Us
76 106108X311 SUB= 106108X427 Price: Call Us
77 109502X SPACER LT Price: Call Us
79 12000001 E-RING LT Price: Call Us
85 110422X SUB= 146682 Price: Call Us
87 123205X RETAIN BELT Price: Call Us
88 120183X NYLON BEARING Price: Call Us
89 101326L DEFLECTOR.222573 Price: Call Us
91 105700X SPRING LT Price: Call Us
92 106919X PLATE SHIFT LT Price: Call Us
93 19091210 WASHER LT Price: Call Us
95 7152J TUBE.18X9.5-8 Price: Call Us
