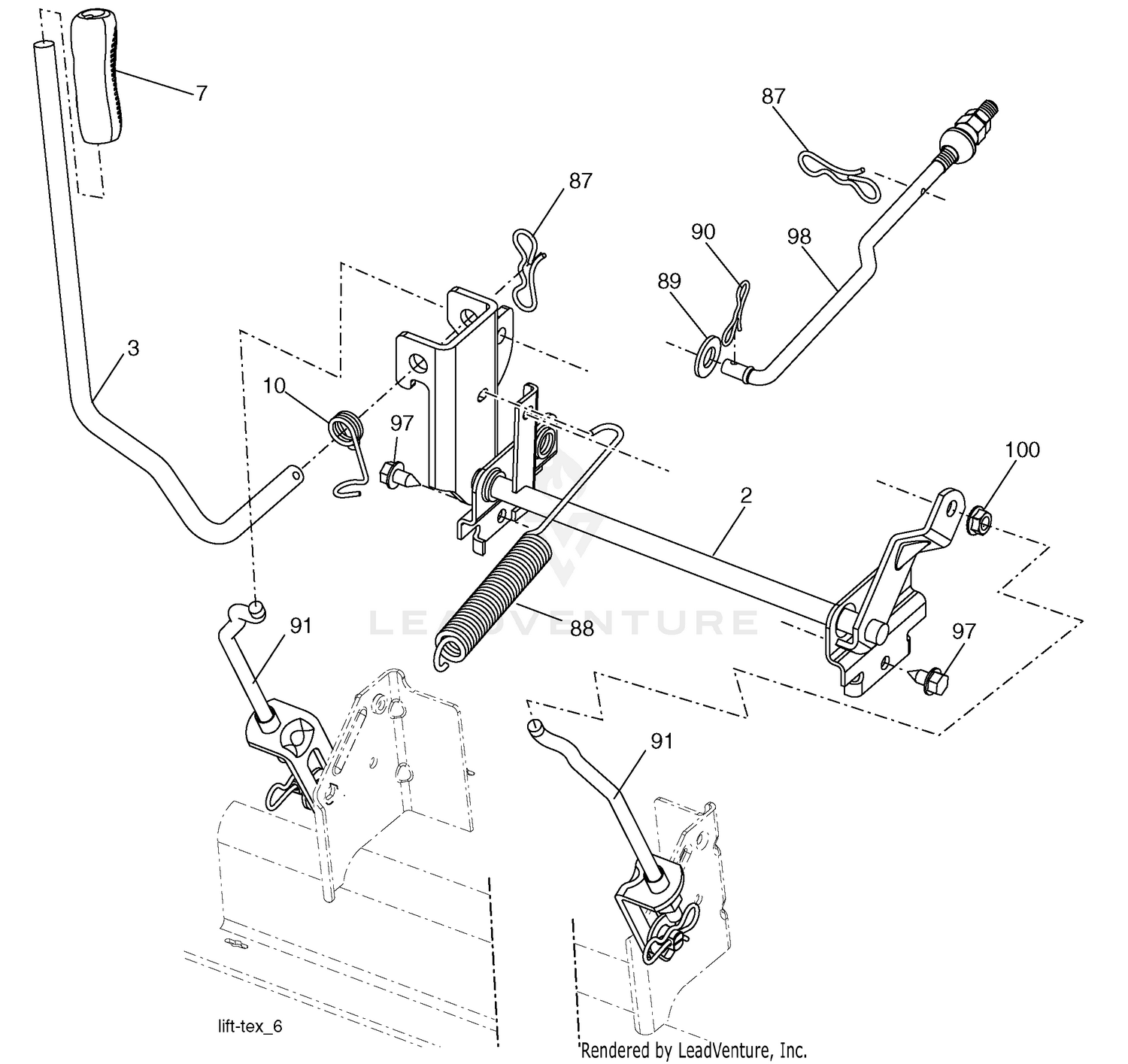

| Ref | Part Number | Description |
|---|
| 1 |
3211-15 |
SCREW-HH Price: $7.99 |
| 2 |
195223 |
Shaft Asm., Lift Price: Call Us |
| 2 |
63-8410 |
WASHER Price: $1.76 |
| 3 |
195231 |
Lever Asm., Lift RH Price: Call Us |
| 3 |
95-2596 |
MOUNT-ISO Price: $33.55 |
| 4 |
95-2595 |
POST-PIVOT Price: $69.05 |
| 5 |
256-42 |
BUSHING Price: $7.03 |
| 6 |
95-2598-03 |
LEVER ASM Price: $80.81 |
| 7 |
196492X428 |
Grip, Lever Price: Call Us |
| 7 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 8 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 9 |
33104-050 |
SCREW-HHF Price: $1.70 |
| 10 |
196314 |
Spring Torsion Price: Call Us |
| 10 |
93-5347 |
ABRASIVE-PEDAL Price: $12.38 |
| 11 |
93-5368 |
ABRASIVE-PEDAL Price: $9.23 |
| 12 |
93-5133-01 |
PEDAL-TRACTION Price: $132.14 |
| 13 |
33113-016 |
SCREW-HH Price: $0.34 |
| 14 |
3217-6 |
NUT-HEX Price: $1.19 |
| 15 |
32141-36 |
SCREW-ADJUSTMENT, LEVEL Price: $12.75 |
| 16 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
33003-00 |
NUT-HF Price: $0.25 |
| 18 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 19 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 20 |
93-5137 |
LEVER-TRACTION Price: $126.70 |
| 21 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 22 |
3220-3 |
NUT-HJ Price: $0.28 |
| 23 |
93-5129-03 |
BRACKET-PEDAL ASM Price: $99.35 |
| 24 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 25 |
100-5597-03 |
DISCONTINUED Price: Call Us |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 28 |
3211-2 |
SCREW-HH Price: $2.17 |
| 29 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 30 |
66-4310 |
DISCONTINUED Price: Call Us |
| 87 |
194209 |
Pin Cotter 7/16 Bow Tie Lock Price: Call Us |
| 88 |
410710 |
Spring Lift Assist Price: Call Us |
| 89 |
19191912 |
Washer Clear Zinc Price: Call Us |
| 90 |
194208 |
Pin Cotter 5/16 Bow Tie Lock Price: Call Us |
| 91 |
195181 |
Link Lift Susp Mower Rear Price: Call Us |
| 97 |
17000612 |
Screw 3/8-16 x .75 Price: Call Us |
| 98 |
195270 |
Link Lift Susp. Front Mower Price: Call Us |
