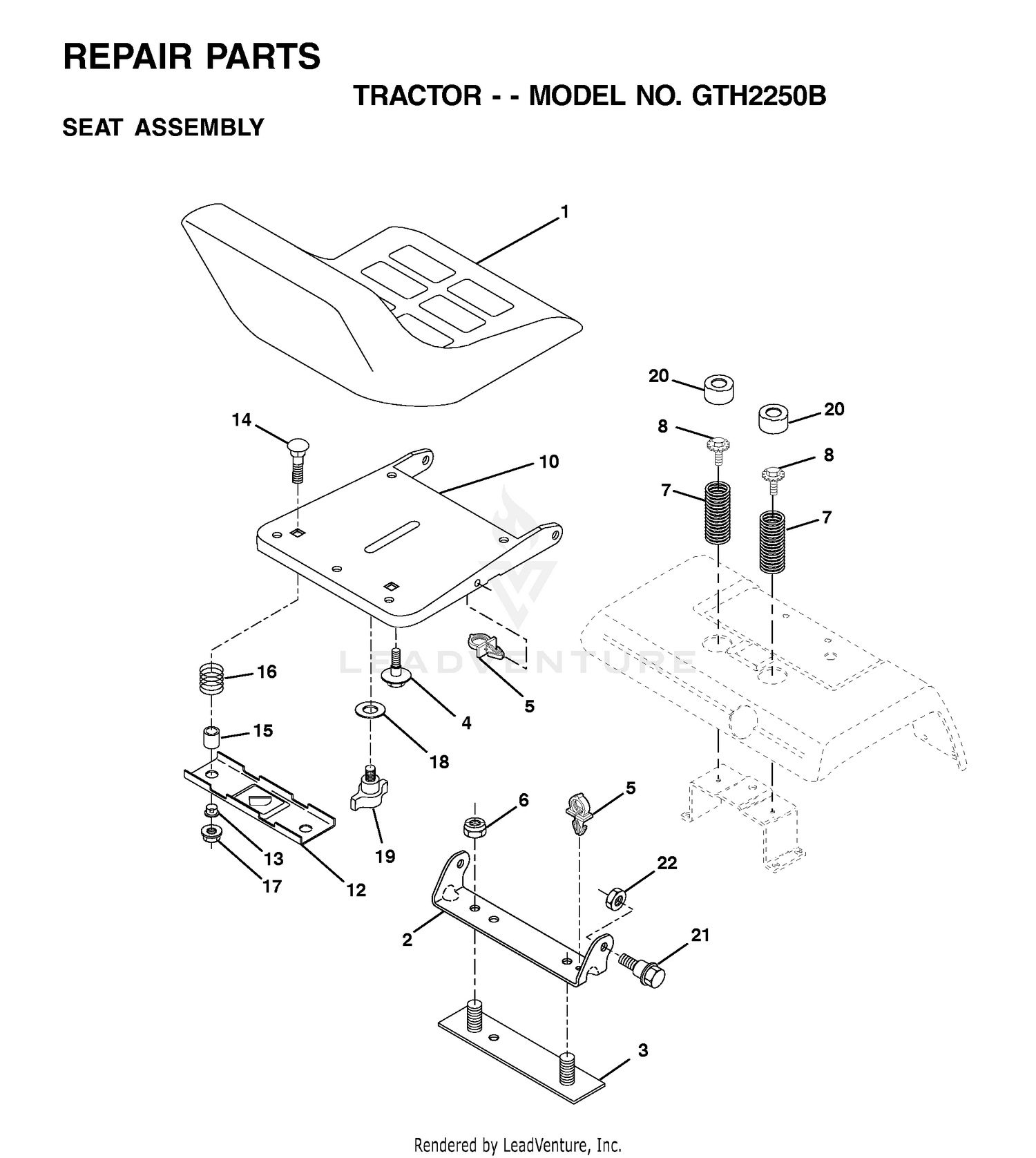

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532140840. Price: $219.99 |
| 2 |
138-1204 |
SEAL-BOOT Price: $28.62 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
138-1205 |
BEARING-CUP Price: $22.22 |
| 4 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 5 |
138-1206 |
BEARING-CONE Price: $22.22 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
138-1207 |
SCREW-SOCKET HEAD Price: $2.58 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
138-1208 |
WASHER-LOCK Price: $2.71 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532174894. Price: $17.99 |
| 12 |
138-6928 |
SPACER Price: $22.26 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
138-6929 |
WASHER Price: $5.09 |
| 14 |
138-6930 |
NUT-LOCK Price: $40.36 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
138-1209 |
GEAR-RING Price: $837.28 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
138-1210 |
RING-SNAP Price: $25.99 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
353-990 |
PLUG ASM Price: $10.01 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
237-78 |
O-RING Price: $3.85 |
| 18 |
819171912 |
WASHER Price: $3.99 |
| 19 |
138-1211 |
PLUG-FLANGE, MAGNETIC Price: $7.25 |
| 19 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 20 |
138-1212 |
O-RING Price: $1.73 |
| 20 |
532124238 |
CAP SPRING Price: $4.99 |
| 21 |
138-1213 |
CAP-END Price: $89.39 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
138-1214 |
WASHER-THRUST, SUN Price: $9.02 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 25 |
138-1215 |
GEAR-PRIMARY, SUN Price: $97.58 |
| 26 |
138-1216 |
SHAFT-DRIVE Price: $300.56 |
| 27 |
138-1217 |
PRIMARY CARRIER ASM Price: $917.18 |
| 28 |
138-1218 |
SECONDARY CARRIER ASM Price: $802.56 |
