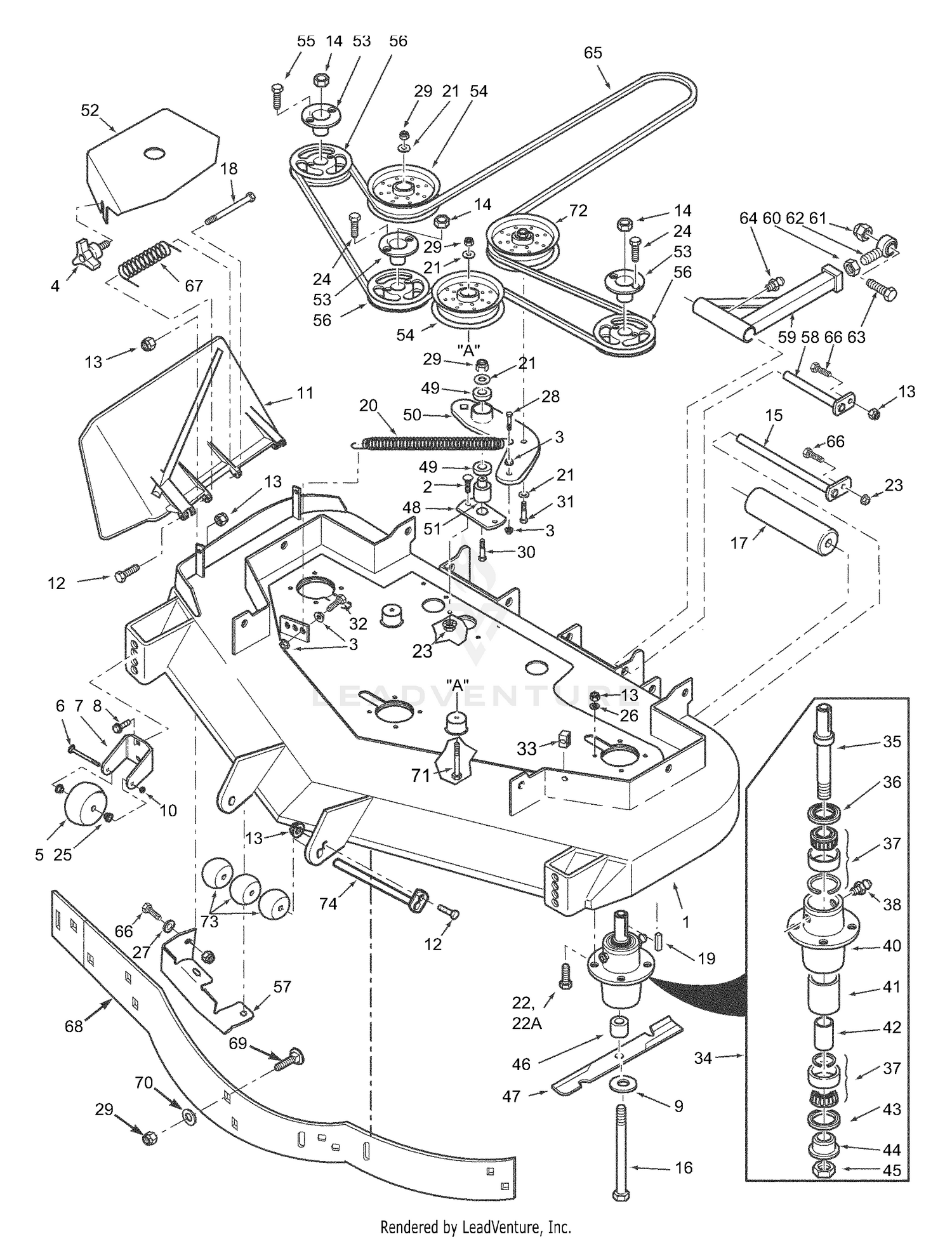

| Ref | Part Number | Description |
|---|
| 1 |
461656K |
CUTTER DECK W/ BAFFLES, SMTC-61A This part replaces 461591. Price: Call Us |
| 2 |
04003-04 |
Bolt, Carr. 5/16-18 x 1" Price: Call Us |
| 3 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 4 |
481625-01 |
Wing Nut, 3/8-16 Price: Call Us |
| 5 |
481632 |
Anti-Scalp Wheel Price: Call Us |
| 6 |
04003-26 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 7 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 8 |
04017-27 |
Bolt, Serrated Flange 3/8-16 x 1" Price: Call Us |
| 9 |
04043-06 |
Flatwasher, 5/8" Hardened Price: Call Us |
| 10 |
04021-05 |
Locknut, 3/8-16 Center Lock Price: Call Us |
| 11 |
481931 |
Discharge Chute Price: Call Us |
| 12 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2", Rear Price: Call Us |
| 13 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 14 |
04020-09 |
Nut, 5/8-11 UNC Price: Call Us |
| 15 |
45944 |
Shaft, Roller Price: Call Us |
| 16 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 17 |
48038 |
Roller, Rear Price: Call Us |
| 18 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 19 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 20 |
482718 |
Spring, Idler Price: Call Us |
| 21 |
04043-04 |
Flatwasher, 3/8" - .938 x .391 x .105 Price: Call Us |
| 22 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" Price: Call Us |
| 22A |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 23 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 24 |
04001-14 |
Bolt, Hex Head 1/2-20 x 1" Price: Call Us |
| 25 |
48100-15 |
Bushing, .376 ID Oilite Price: Call Us |
| 26 |
04030-03 |
Lockwasher 5/16" Price: Call Us |
| 27 |
04040-15 |
Flatwasher 5/16" Price: Call Us |
| 28 |
04001-136 |
Bolt, 3/8-16 x 1-1/2" Grade 8 Price: Call Us |
| 29 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 30 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 31 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 32 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2 Grade 8 Price: Call Us |
| 33 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 34 |
461663 |
Spindle Assembly This part replaces 46631. Price: Call Us |
| 35 |
43589 |
Shaft, Spindle This part replaces 43298. Price: Call Us |
| 36 |
481024 |
Seal Upper Price: Call Us |
| 37 |
481022 |
Bearing Assembly Price: Call Us |
| 38 |
48114-04 |
Grease Fitting Price: Call Us |
| 39 |
48677 |
Valve, Grease Relief Price: Call Us |
| 40 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 41 |
43312 |
Spacer, Outside Price: Call Us |
| 42 |
43296 |
Spacer, Inside Price: Call Us |
| 43 |
481025 |
Seal, Lower Price: Call Us |
| 44 |
43297 |
Bushing, Bottom Price: Call Us |
| 45 |
481035 |
Nut, Special 1-1/16 - 18 Price: Call Us |
| 46 |
43590 |
Spacer, Spindle Price: Call Us |
| 47 |
481708 |
Cutter Blade 21" This part replaces 482464. Price: Call Us |
| 48 |
422713 |
Pivot, Idler Base Price: Call Us |
| 49 |
48224 |
Bearing Price: Call Us |
| 50 |
461174 |
Idler Arm Assy. Price: Call Us |
| 51 |
43575 |
Idler Pivot, Short Price: Call Us |
| 52 |
423717 |
Belt Cover (61A) Price: Call Us |
| 53 |
48926 |
Hub, Tapered 1-1/8" Bore Price: Call Us |
| 54 |
483215 |
Pulley, 5" Dia. Idler This part replaces 482416. Price: Call Us |
| 55 |
04001-14 |
Bolt, Hex Head 1/4-20 x 1" Price: Call Us |
| 56 |
482648 |
Pulley, 5.95 Dia. Tapered Bore This part replaces 48790. Price: Call Us |
| 57 |
423957 |
Baffle, 61" Deck This part replaces 422601. Price: Call Us |
| 58 |
451240 |
Push Arm Shaft Price: Call Us |
| 60 |
04020-16 |
Nut, 5/8-18 UNF Price: Call Us |
| 61 |
04021-13 |
Nut, Elastic Stop 5/8-11 Price: Call Us |
| 62 |
48763 |
Rod End, 5/8 Male RH Thread Price: Call Us |
| 63 |
04001-79 |
Bolt, Hex Head 5/8-11 x 4-1/2" Price: Call Us |
| 64 |
48114-04 |
Grease Fitting, 90 Degree Price: Call Us |
| 65 |
482652 |
Belt, Cutter Deck Drive (61A) Price: Call Us |
| 66 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 67 |
482245 |
Spring, Discharge Chute Price: Call Us |
| 68 |
451509 |
Baffle Weldment, 61A Price: Call Us |
| 69 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 70 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 71 |
04001-51 |
Bolt, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 72 |
483210 |
Pulley, 5" Idler This part replaces 482743. Price: Call Us |
| 73 |
482295 |
Wheel, Anti Scalp Price: Call Us |
