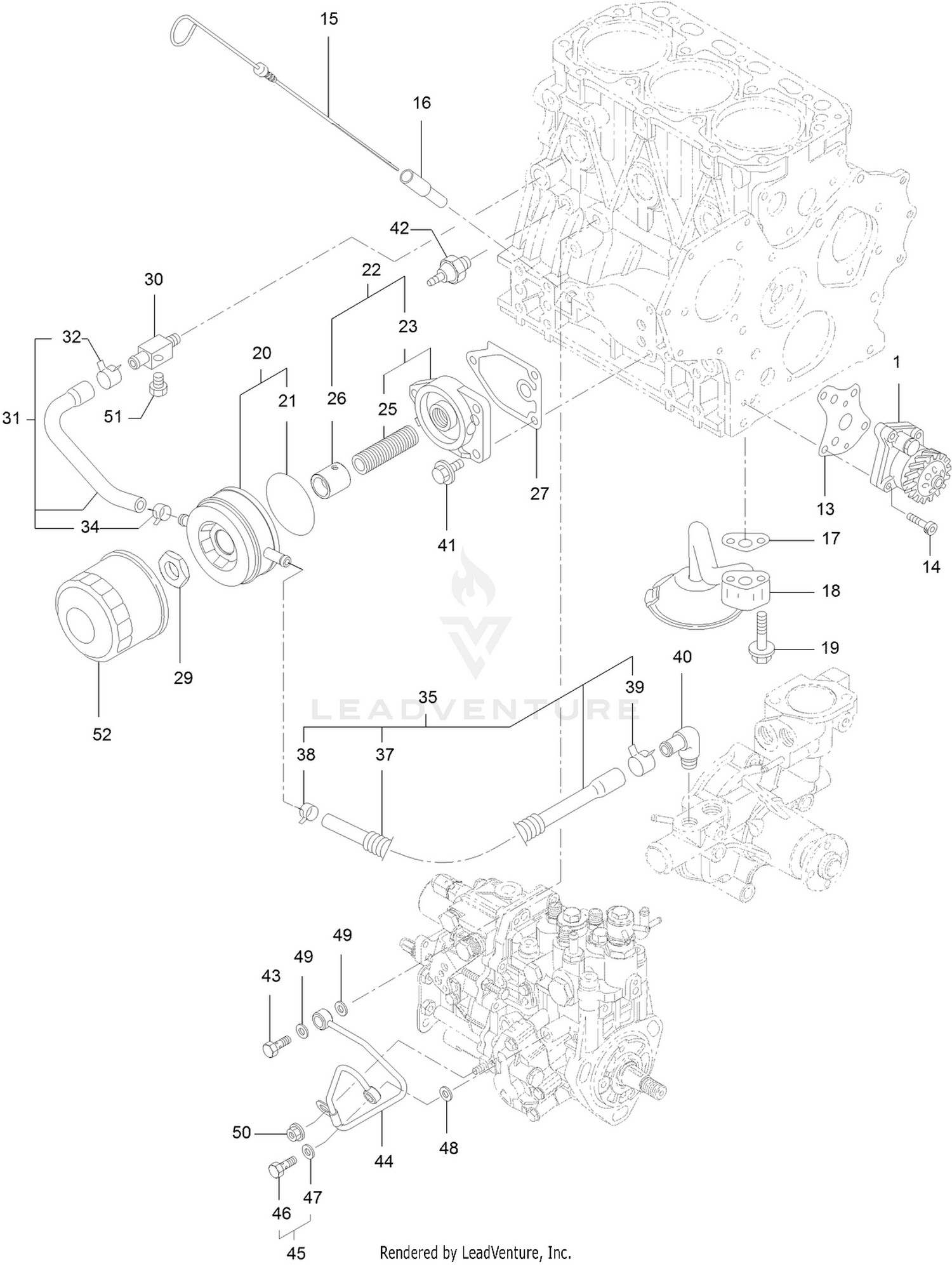

Oil Pump and Filter Assembly
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 144-0605 | PUMP ASSY, OIL Price: Call Us |
| 13 | 125-7021 | GASKET Price: $2.87 |
| 14 | 125-7232 | BOLT Price: $3.28 |
| 15 | 140-7168 | DIPSTICK-OIL Price: $63.53 |
| 16 | 125-6954 | GUIDE-DIPSTICK Price: $9.80 |
| 17 | 125-7022 | GASKET Price: $7.07 |
| 18 | 135-4017 | OIL INLET PIPE ASM Price: $100.99 |
| 19 | 125-7217 | BOLT Price: $4.58 |
| 20 | 135-4018 | OIL COOLER ASM Price: $1,288.99 |
| 21 | 135-4019 | PACKING-OIL COOLER Price: $13.99 |
| 22 | 135-4021 | LO FILTER BRACKET ASM Price: $111.99 |
| 23 | 140-7169 | FILTER BRACKET ASM Price: Call Us |
| 25 | 125-7042 | STUD Price: $37.63 |
| 26 | 135-4022 | COLLAR-COOLER, OIL Price: $12.99 |
| 27 | 125-7024 | GASKET Price: $3.16 |
| 29 | 135-4020 | NUT Price: $8.99 |
| 30 | 125-6990 | JOINT Price: $64.80 |
| 31 | 125-7078 | PIPE ASM Price: $40.64 |
| 32 | 125-7162 | CLIP Price: $6.55 |
| 34 | 125-7191 | CLAMP-HOSE Price: $15.78 |
| 35 | 127-3804 | PIPE ASM Price: $31.64 |
| 37 | 127-3805 | TUBE Price: $15.40 |
| 38 | 125-7191 | CLAMP-HOSE Price: $15.78 |
| 39 | 125-7162 | CLIP Price: $6.55 |
| 40 | 125-7001 | ELBOW Price: $40.49 |
| 41 | 125-7595 | BOLT Price: $2.39 |
| 42 | 134-1377 | SWITCH-HYDRAULIC Price: $14.56 |
| 43 | 125-6975 | BOLT-JOINT, PIPE Price: $12.92 |
| 44 | 144-0606 | PIPE ASSY, OIL Price: Call Us |
| 45 | 125-6988 | JOINT BOLT ASM Price: $10.74 |
| 46 | 125-7194 | BOLT-JOINT Price: $5.25 |
| 47 | 125-7174 | WASHER-SEAL Price: $5.45 |
| 48 | 125-7174 | WASHER-SEAL Price: $5.45 |
| 49 | 125-7175 | WASHER-SEAL Price: $6.16 |
| 50 | 125-7231 | NUT Price: $3.77 |
| 51 | 125-7171 | PLUG-DRAIN Price: $23.08 |
