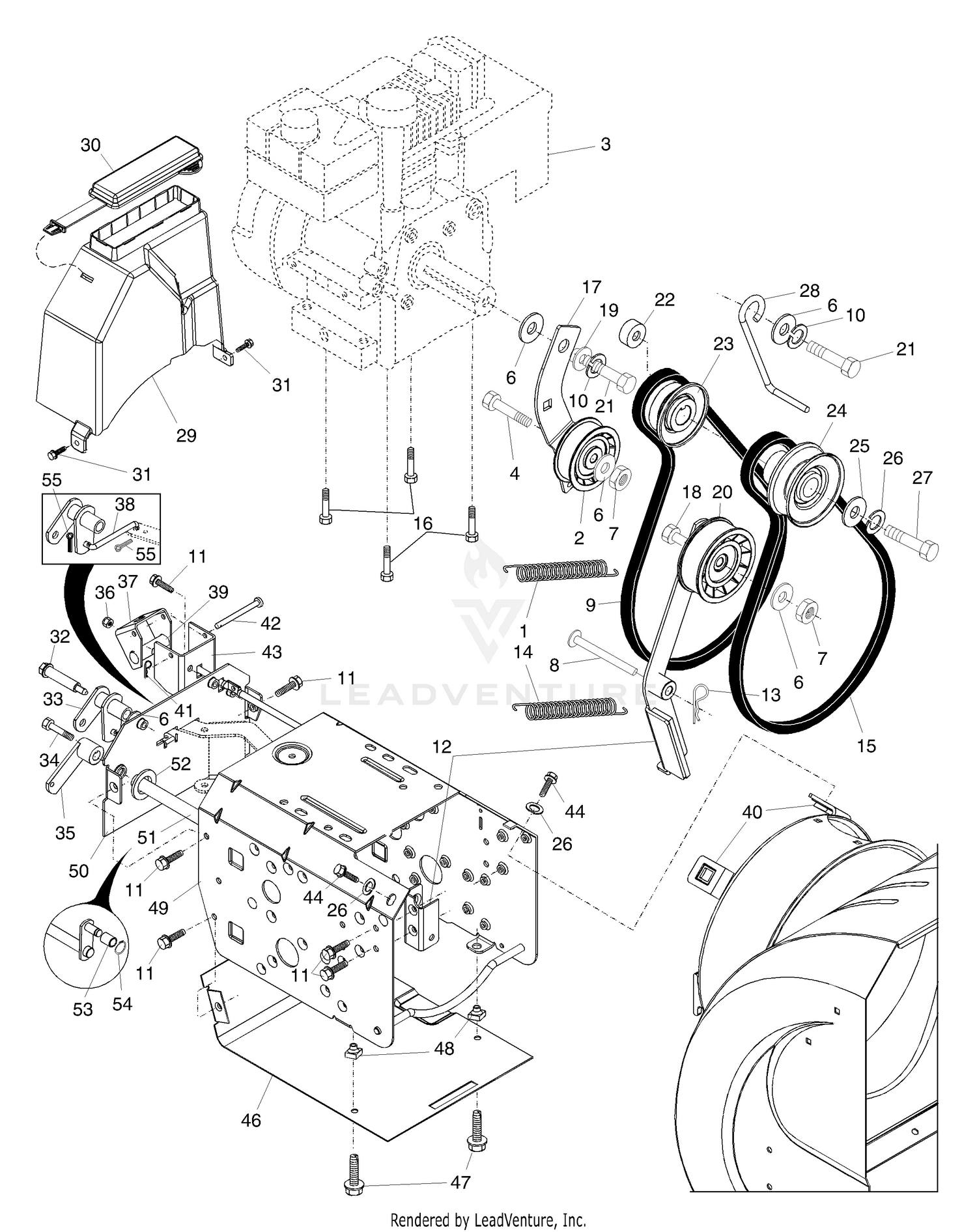

| Ref | Part Number | Description |
|---|
| 1 |
100-8666 |
NUT-REDUCER Price: $11.29 |
| 1 |
181044 |
Spring, Traction Idler Price: Call Us |
| 2 |
180522 |
Pulley, Idler (2-1/4) Price: Call Us |
| 2 |
3217-26 |
NUT-HEX Price: $0.25 |
| 3 |
100-8667 |
COUPLER-REDUCER Price: $47.60 |
| 4 |
120-8546 |
GAUGE-PRESSURE This part replaces 104-9115. Price: $172.62 |
| 4 |
74780520 |
Screw, Hex Head 5/16-18 x 1-1/4 Price: Call Us |
| 5 |
94-7290 |
PLUG-HOLE Price: $0.88 |
| 6 |
42610 |
VOLTMETER Price: $114.72 |
| 6 |
59289 |
Washer, Flat Price: Call Us |
| 7 |
42609 |
DISCONTINUED Price: Call Us |
| 7 |
73930500 |
Nut, Jam, Lock 5/16-18 Price: Call Us |
| 8 |
107-1570 |
TEMPERATURE GAUGE KIT This part replaces 42608. Price: $141.04 |
| 8 |
175330 |
Pin, Idler Pivot Price: Call Us |
| 9 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 9 |
179092 |
V-Belt, Traction Drive Price: Call Us |
| 10 |
10040500 |
Washer, Lock 5/16 Price: Call Us |
| 10 |
41230 |
R-Clamp Price: Call Us |
| 11 |
108-3292 |
KEY SWITCH This part replaces 42607. Price: $80.97 |
| 11 |
150078 |
Screw, Hex Head 5/16-18 x 3/4 Price: Call Us |
| 12 |
42863 |
STRIP-JUMPER Price: $2.90 |
| 13 |
32144-125 |
SCREW-SHWH Price: $0.81 |
| 13 |
85179 |
Retainer, Hairpin Price: Call Us |
| 14 |
104-9007 |
SWITCH-ROCKER Price: $75.33 |
| 14 |
178828 |
Spring, Brake Price: Call Us |
| 15 |
100-8469 |
SWITCH-ROCKER Price: $24.75 |
| 15 |
183533 |
V-Belt, Impeller Drive Price: Call Us |
| 16 |
150406 |
Screw, Hex Head 3/8-16 x 1-1/4 Price: Call Us |
| 16 |
42862 |
BLOCK-TERMINAL, GROUND Price: $19.58 |
| 17 |
179354X008 |
Arm, Idler Price: Call Us |
| 17 |
94-7079 |
SOLENOID-ACCESSORY Price: $145.88 |
| 18 |
74780524 |
Screw, Hex Head 5/16-18 x 1-1/2 Price: Call Us |
| 18 |
92-0034 |
BOOT-TERMINAL Price: $5.80 |
| 19 |
175331 |
Bushing, Idler Pivot Price: Call Us |
| 19 |
41187 |
BOOT-TERMINAL Price: $3.57 |
| 20 |
180523 |
Pulley, Idler (2-3/4) Price: Call Us |
| 20 |
94-7092 |
CABLE-BATTERY, POSITIVE Price: $37.57 |
| 21 |
3217-5 |
NUT-HEX Price: $0.25 |
| 21 |
74610516 |
Screw, Hex Head 5/16-18 x 1 Price: Call Us |
| 22 |
179371 |
Spacer, Engine Pulley Price: Call Us |
| 22 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 23 |
180478 |
Pulley, Engine, Traction Drive Price: Call Us |
| 23 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 24 |
106-5036 |
HARNESS-WIRE This part replaces 104-9152. Price: $516.72 |
| 24 |
179157 |
Pulley, Engine, Impeller Drive Price: Call Us |
| 25 |
62735 |
Washer, Flat 3/8 Price: Call Us |
| 26 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 27 |
851084 |
Screw, Hex Head 3/8-24 x 1-3/8 Price: Call Us |
| 28 |
155452 |
Guide, Belt Price: Call Us |
| 29 |
180465 |
Cover, Belt Price: Call Us |
| 30 |
178830 |
Cover, Toolbox Price: Call Us |
| 31 |
17490408 |
Screw, Hex Head 1/4-20 x 1/2 Price: Call Us |
| 32 |
179256 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 33 |
179250 |
Bellcrank Shifter Price: Call Us |
| 34 |
180401 |
Screw, Hex Head 1/4-28 x 3/4 Price: Call Us |
| 35 |
179240 |
Arm, Auger Control Price: Call Us |
| 36 |
73800500 |
Nut, Lock 5/16-18 Price: Call Us |
| 37 |
178833X479 |
Bellcrank Assembly Price: Call Us |
| 38 |
179251 |
Link, Speed Control Price: Call Us |
| 39 |
179064 |
Trunnion, Pivot Bracket Price: Call Us |
| 40 |
178890 |
Nut, Cage 3/8-16 Price: Call Us |
| 41 |
76020208 |
Pin, Cotter 1/16 x 1/2 Price: Call Us |
| 42 |
179065 |
Pin, Pivot Bracket Price: Call Us |
| 43 |
179063X479 |
Bracket, Bellcrank Price: Call Us |
| 44 |
74780624 |
Screw, Hex Head 3/8-16 x 1-1/2 Price: Call Us |
| 46 |
178624X479 |
Pan, Frame Bottom Price: Call Us |
| 47 |
71020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: Call Us |
| 48 |
181156 |
Nut, Speed 5/16-18 Price: Call Us |
| 49 |
183852X428 |
Frame Assembly Price: Call Us |
| 50 |
178693X428 |
Plate, Frame End Price: Call Us |
| 51 |
179068X008 |
Shaft, Auger Control Price: Call Us |
| 52 |
57079 |
Washer, Hardened Price: Call Us |
| 53 |
179062 |
Roller Price: Call Us |
| 54 |
12000010 |
Ring, Retaining Price: Call Us |
