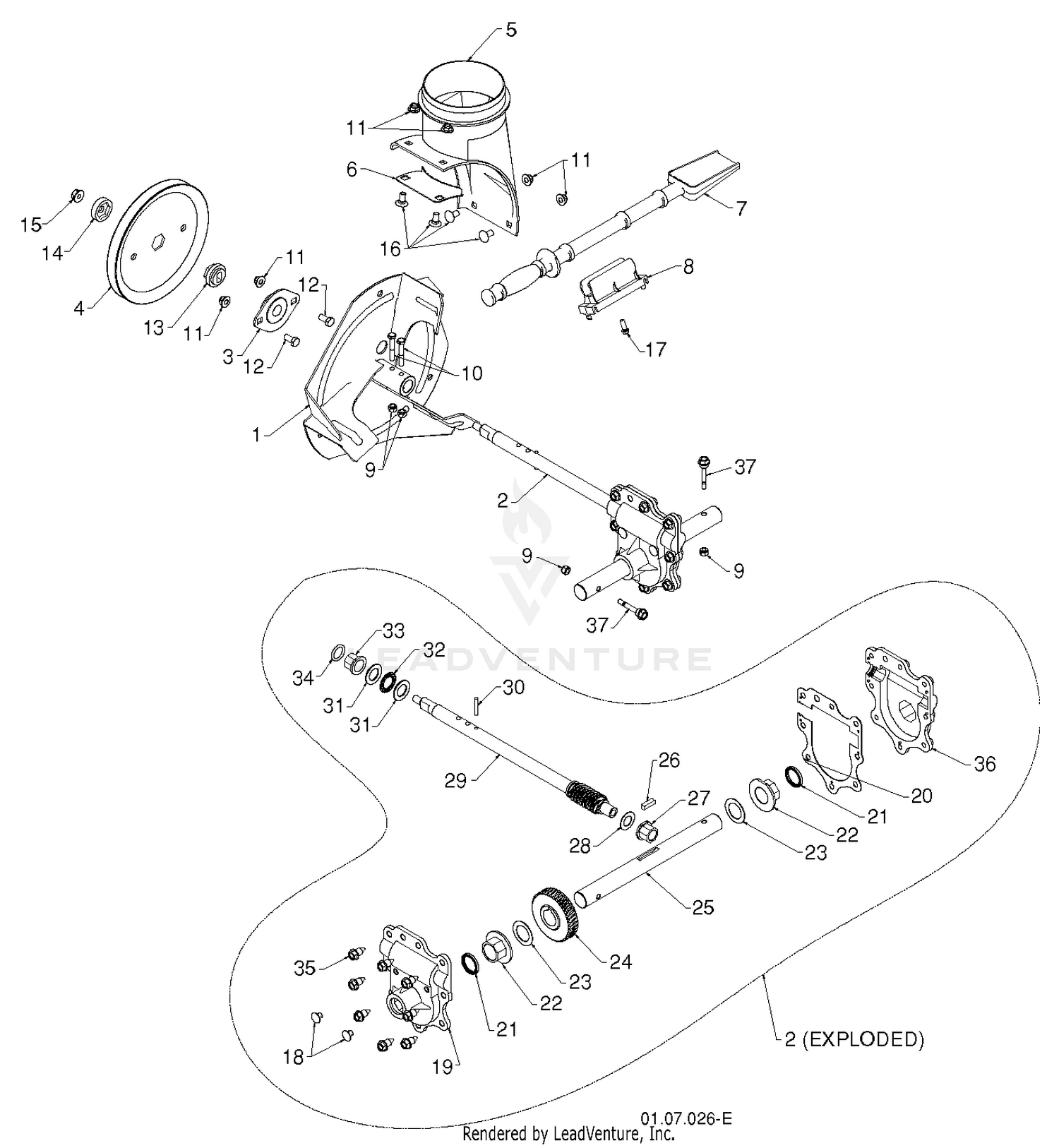

| Ref | Part Number | Description |
|---|
| 1 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 2 |
598831601 |
Service Kit This part replaces 532427148. Price: $199.99 |
| 3 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 4 |
532427146 |
PULLEY.FLANGE.IMPELLER Price: $29.99 |
| 5 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532442438. Price: $9.99 |
| 6 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $14.99 |
| 8 |
532405400 |
CLIP.CLEANOUT.TOOL Price: $2.99 |
| 9 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 10 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 11 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 532427942. Price: $5.99 |
| 12 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 13 |
532427145 |
HUB.IMP.PULLEY.D-SHAFT Price: $4.99 |
| 14 |
532427154 |
SLEEVE.IMP.PULLEY.D-SHAFT Price: $3.99 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 17 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $4.99 |
| 18 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW This part replaces 532407760. Price: $3.99 |
| 20 |
532427345 |
GASKET.GEAR.BOX Price: $4.99 |
| 21 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $4.99 |
| 22 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $29.99 |
| 23 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 24 |
598831601 |
Service Kit This part replaces 532407763. Price: $199.99 |
| 25 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $59.99 |
| 26 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 27 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $22.99 |
| 28 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 29 |
532427147 |
SHAFT.IMPELLER.D-SHAFT Price: $74.99 |
| 30 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 31 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 32 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $7.99 |
| 34 |
532407768 |
O-RING Price: $3.99 |
| 35 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $4.99 |
