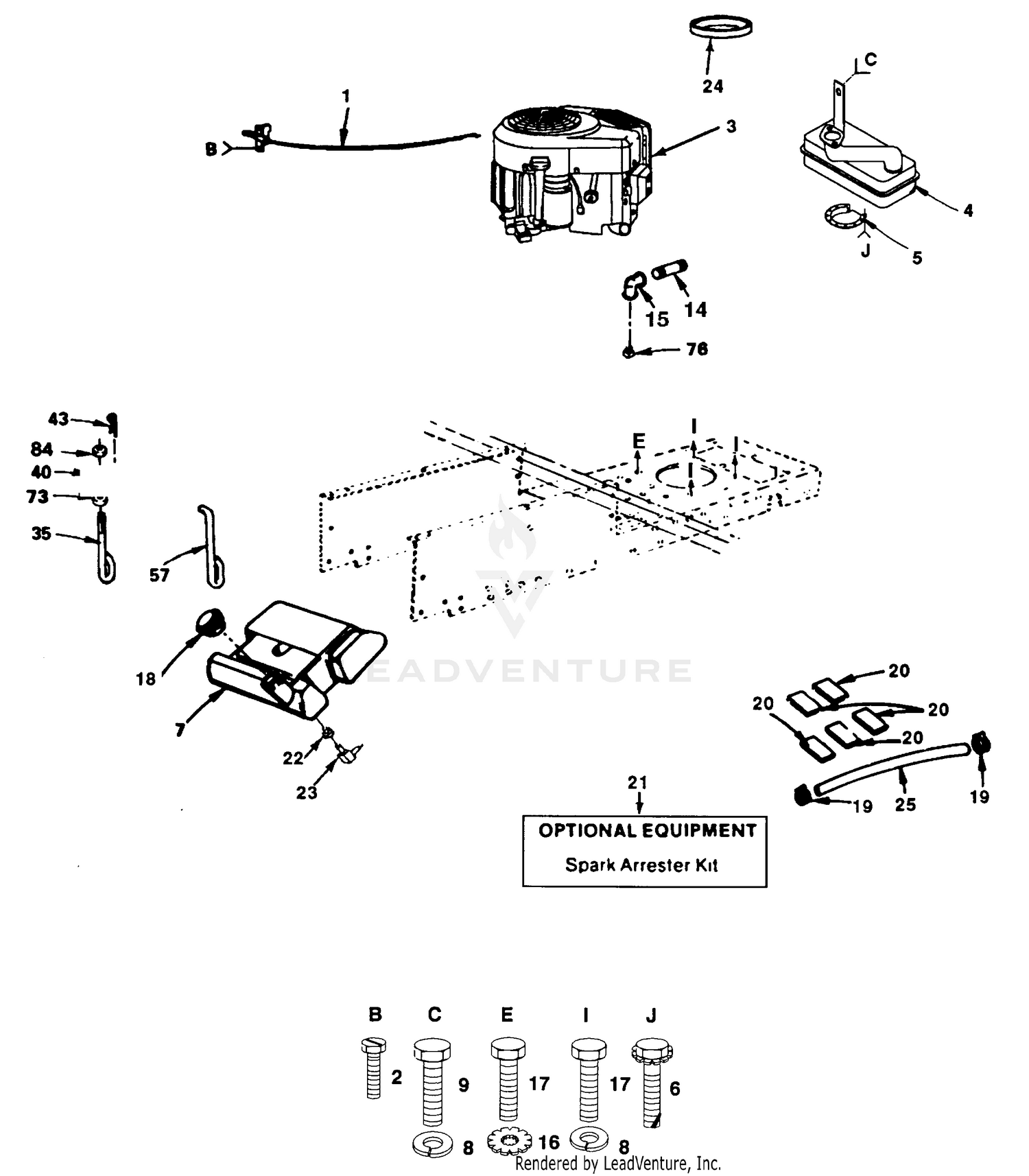

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
532132753 |
Control, Throttle (AYP part number) Price: $13.81 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 2 |
817720410 |
Screw, Hex Thread Cut 1/4-20 x 5/8 (AYP part number) Price: $5.99 |
| 3 |
107-2996 |
FRONT GRASS SHIELD ASM Price: $69.51 |
| 3 |
532133738 |
Engine Kohler Price: Call Us |
| 4 |
125-2098 |
SHIELD-GRASS, REAR (5 INCH) Price: $62.97 |
| 4 |
532124196 |
Muffler (AYP part number) Price: $3.33 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 5 |
532101326 |
Deflector, Muffler (AYP part number) Price: $4.01 |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 6 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 7 |
110-1706 |
DEFLECTOR Price: $4.76 |
| 7 |
532106020 |
Tank, Fuel (AYP part number) Price: $55.00 |
| 8 |
810040500 |
Washer, Lock Heavy Helical Spring (AYP part number) Price: $2.99 |
| 9 |
874760508 |
Bolt, Hex Head 5/16-18 UNC x 1/2 (AYP part number) Price: $3.99 |
| 14 |
813280336 |
Pipe Nipple, Standard (AYP part number) Price: Call Us |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 16 |
810040500 |
LOCKWASHER This part replaces 811050500. Price: $2.99 |
| 17 |
532125006 |
Screw M8 x 1.25 x 25 mm Price: $4.62 |
| 18 |
532123549 |
Cap, Fuel (AYP part number) Price: $11.99 |
| 19 |
532123487 |
Clamp, Hose (AYP part number) Price: $3.99 |
| 20 |
532106082 |
Pad, Spacer (AYP part number) Price: $2.99 |
| 21 |
532122083 |
Spark Arrester Kit (AYP part number) Price: Call Us |
| 22 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $2.99 |
| 23 |
532008710 |
Fuel Tank Stem (AYP part number) This part replaces 532124951. Price: $2.52 |
| 24 |
532127073 |
Strip, Foam (AYP part number) Price: $3.33 |
