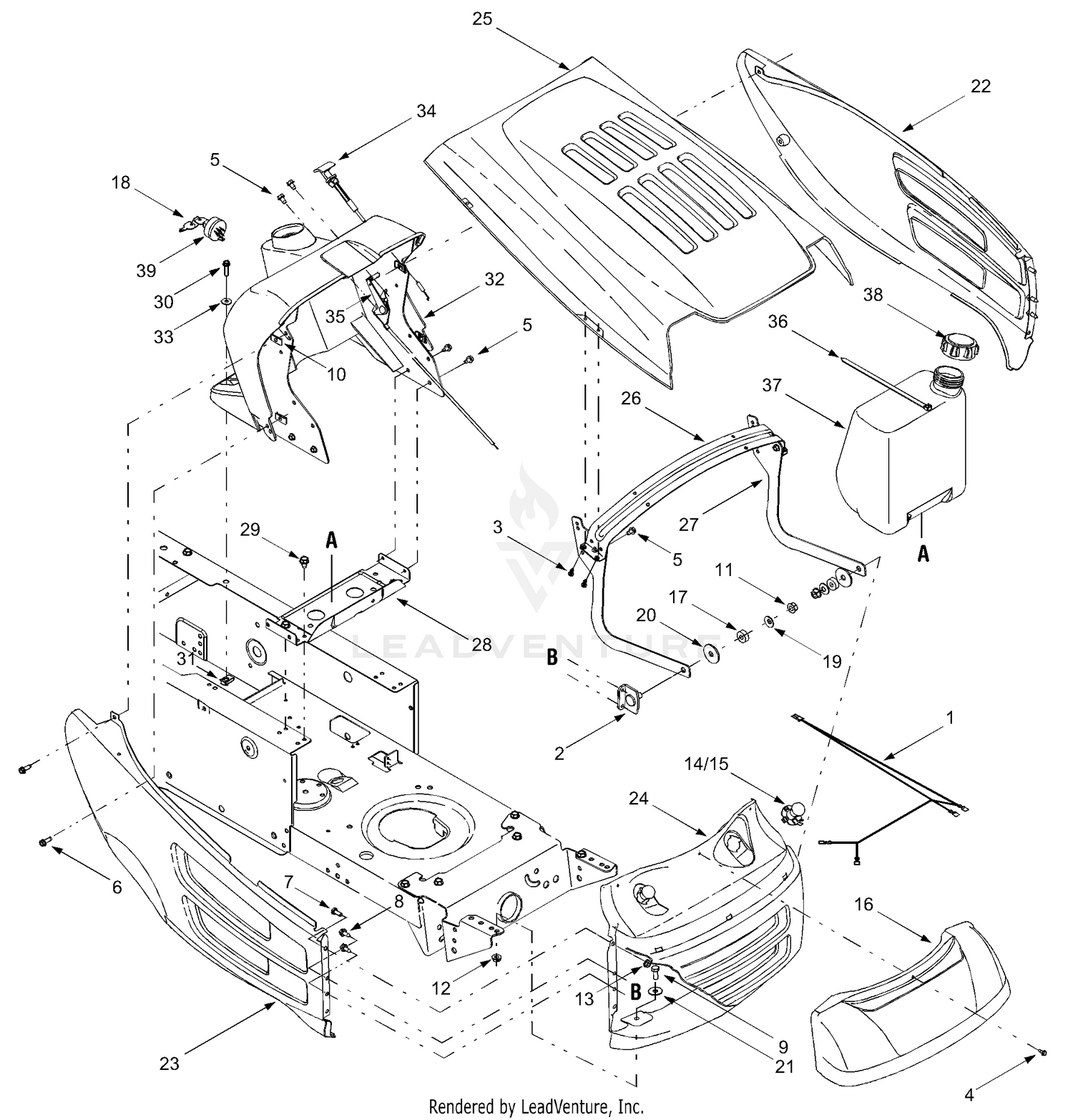

| Ref | Part Number | Description |
|---|
| 1 |
929-0469B |
HEADLIGHT HARNESS Not Available This part replaces 629-0469B. Price: |
| 2 |
683-0195-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-0195. Price: |
| 3 |
710-0351 |
Screw, #10-16 x .50 Price: $3.90 |
| 4 |
710-0456 |
HEX SCREW #10-16 x 0.500 Not Available Price: |
| 5 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 6 |
710-0642 |
Self-tapping Screw, 1/4-20 x .75 Price: $4.05 |
| 7 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 8 |
710-0896 |
Hex Index Washer Screw, 1/4-14 x .0625 Price: $3.86 |
| 9 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 10 |
712-0185 |
SPEED NUT 1/4-20 Not Available Price: |
| 11 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 12 |
712-0429 |
Lock Nut, 5/16-18 Price: $3.56 |
| 13 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 14 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 15 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 16 |
931-1854A |
Headlight Lens (8-style) This part replaces 731-1854A. Price: $72.82 |
| 17 |
735-0126A |
RUBBER WASHER Not Available This part replaces 735-0126. Price: |
| 18 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 19 |
736-0300 |
Flat Washer, .406 x .875 x .059 Price: $3.93 |
| 20 |
736-3039 |
Flat Washer, .406 x 1.5 x 11 gauge Price: $4.42 |
| 21 |
736-3078 |
Flat Washer, .344 x 1.0 x .063 Price: $3.95 |
| 22 |
783-0475C |
SIDE PANEL (LH) 8STY Not Available This part replaces 783-0475B. Price: |
| 23 |
783-0476C |
SIDE PANEL (RH) 8STY Not Available Price: |
| 24 |
783-0477A |
GRILLE Not Available Price: |
| 25 |
983-0478B |
HOOD-8 STYLE Not Available This part replaces 783-0478B. Price: |
| 26 |
783-0553A-0637 |
HOOD SUPPORT BRACKET Not Available This part replaces 783-0553A. Price: |
| 27 |
783-1495 |
Hood Side Bracket Price: Call Us |
| 28 |
17632D |
BRACKET-GA Not Available Price: |
| 29 |
710-0607 |
Self-tapping Screw, 5/16-18 x .5 Price: $6.06 |
| 30 |
710-0788 |
Self-tapping Screw, 1/4-20 x 1.0 Price: $6.20 |
| 31 |
726-3054 |
U-type Speed Nut, 1/4-20 Price: $4.08 |
| 33 |
736-3090 |
Flat Washer, .260 x .720 x .060 Price: $5.79 |
| 34 |
746-0614A |
Choke Control, 38" Price: $22.93 |
| 35 |
746-04020A |
Throttle / Choke Control, 18.5" Price: $34.82 |
| 36 |
726-0230 |
Cable Tie This part replaces 726-0209. Price: $23.95 |
| 37 |
751-0555D |
FUEL TANK 1.36 GAL This part replaces 751-0555B. Price: $78.46 |
| 38 |
751-0603B |
TANK CAP This part replaces 751-0603. Price: $20.42 |
