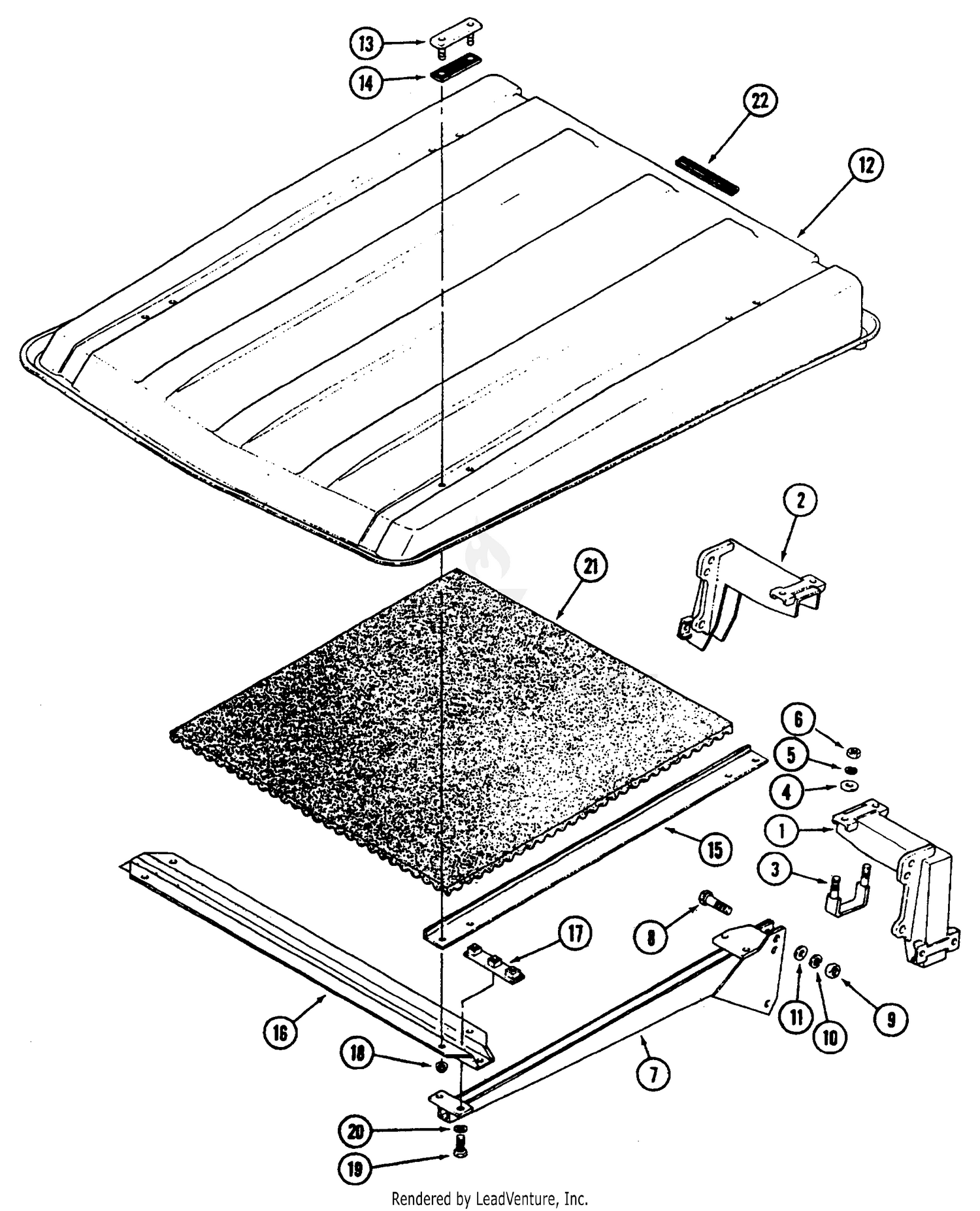

Sun Shade
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-9 | NUT-HEX Price: $0.25 |
| 1 | MA-12186021AN0 | Support L.H. Price: Call Us |
| 2 | 29-6163 | SWITCH-MICRO Price: $91.23 |
| 2 | MA-12186023AN0 | Support R.H. Price: Call Us |
| 3 | 85-9150 | PLATE-SWITCH Price: $5.42 |
| 3 | MA-12186025000 | U-Bolt Price: Call Us |
| 4 | 323-10 | SCREW-HH Price: $0.89 |
| 4 | MA-12186029000 | Washer Price: Call Us |
| 5 | 85-8300-03 | PUMP LEVER ASM This part replaces 85-8300. Price: $116.03 |
| 5 | MA-12186030000 | Washer Price: Call Us |
| 6 | 32105-21 | SCREW-HH Price: $1.09 |
| 6 | MA-A3030412002 | Nut Price: Call Us |
| 7 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 7 | MA-12186027AN0 | Frame Price: Call Us |
| 8 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 8 | MA-12186039000 | Bolt Price: Call Us |
| 9 | 93-9051 | DECAL-BOLT, ECCENTRIC Price: $16.37 |
| 9 | MA-A3030414002 | Nut Price: Call Us |
| 10 | 95-0553 | DISCONTINUED Price: $39.13 |
| 10 | MA-12186041000 | Washer Price: Call Us |
| 11 | 3296-4 | NUT-LOCK Price: $0.25 |
| 11 | MA-12186042000 | Washer Price: Call Us |
| 12 | 18-6380 | PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 13 | 85-9030 | SPRING-EXTENSION Price: $45.40 |
| 13 | MA-12186036000 | Clamp, Roof Price: Call Us |
| 14 | 256-113 | BUSHING-FLANGE Price: $5.58 |
| 14 | MA-12186037000 | Packing Price: Call Us |
| 15 | 85-8460 | SWITCH ARM ASM Price: $109.84 |
| 15 | MA-12186038AN0 | Plate Price: Call Us |
| 16 | 302-60 | FITTING-GREASE Price: $2.26 |
| 16 | MA-12186032AN0 | Frame Price: Call Us |
| 17 | 3-6498 | WASHER-THRUST Price: $4.58 |
| 17 | MA-12186033000 | Clamp Price: Call Us |
| 18 | 76-8640 | STUD-TRACTION Price: $23.60 |
| 18 | MA-A3010410002 | Nut Price: Call Us |
| 19 | 322-8 | SCREW-HH Price: $1.26 |
| 19 | MA-12186044000 | Bolt Price: Call Us |
| 20 | 251-259 | BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 20 | MA-12186045000 | Washer Price: Call Us |
| 21 | 85-9120 | SPACER-PIVOT, TILT Price: $4.01 |
| 21 | MA-12186035200 | Cushion Price: Call Us |
| 22 | 75-5470 | SPACER-BEARING Price: $3.06 |
| 503217516 | 503217516 | SCREW Price: $2.99 |
| 537026101 | 537189601 | GRASS SHIELD COMPLETE This part replaces 537026101. Price: $22.99 |
