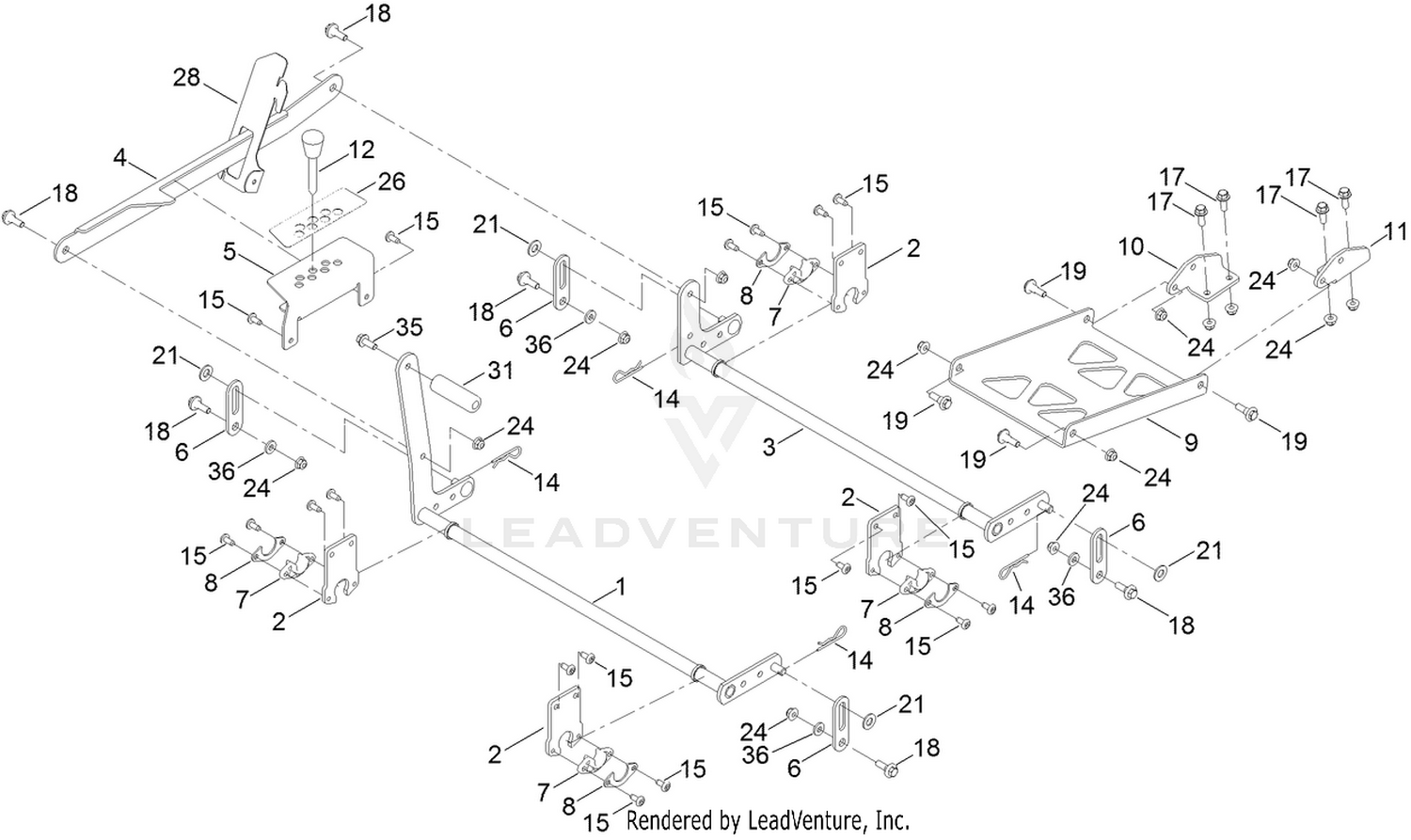

Deck Lift Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 138-2503-03 | PIVOT FRONT ASM Price: $55.94 |
| 2 | 138-9804-03 | SUPPORT-CROSS, SHAFT Price: $7.60 |
| 3 | 138-2504-03 | REAR PIVOT ASM Price: $39.16 |
| 4 | 137-5091-03 | LINK-HOC Price: $29.07 |
| 5 | 137-5092-03 | BRACKET-HOC Price: $21.23 |
| 6 | 137-7001-03 | LINK-DECKLIFT Price: $15.64 |
| 7 | 139-5872 | BEARING-FLANGE Price: $1.10 |
| 8 | 138-7204 | GUSSET-DECK LIFT Price: $1.73 |
| 9 | 139-2435-03 | PAN-DECK PIVOT Price: $72.75 |
| 10 | 139-3200-01 | MOUNT-PAN, LH Price: $15.97 |
| 11 | 139-3201-01 | MOUNT-PAN, RH Price: $15.97 |
| 12 | 140-2146 | HOC PIN ASM Price: $11.18 |
| 14 | 1-806005 | PIN-COTTER Price: $2.39 |
| 15 | 138-9753 | SCREW Price: $0.39 |
| 17 | 3234-42 | SCREW-HHF Price: $1.10 |
| 18 | 137-9847 | SCREW-SHOULDER Price: $0.66 |
| 19 | 109-9840 | SCREW-SHOULDER, HHF Price: $4.19 |
| 21 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 24 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 26 | 139-5892 | DECAL-HOC Price: $4.79 |
| 28 | 139-5804-03 | BRACKET-HOC Price: $16.78 |
| 31 | 139-7452 | PEDAL-FOOT LIFT Price: $13.42 |
| 35 | 139-2597 | SCREW-HHF Price: $0.67 |
