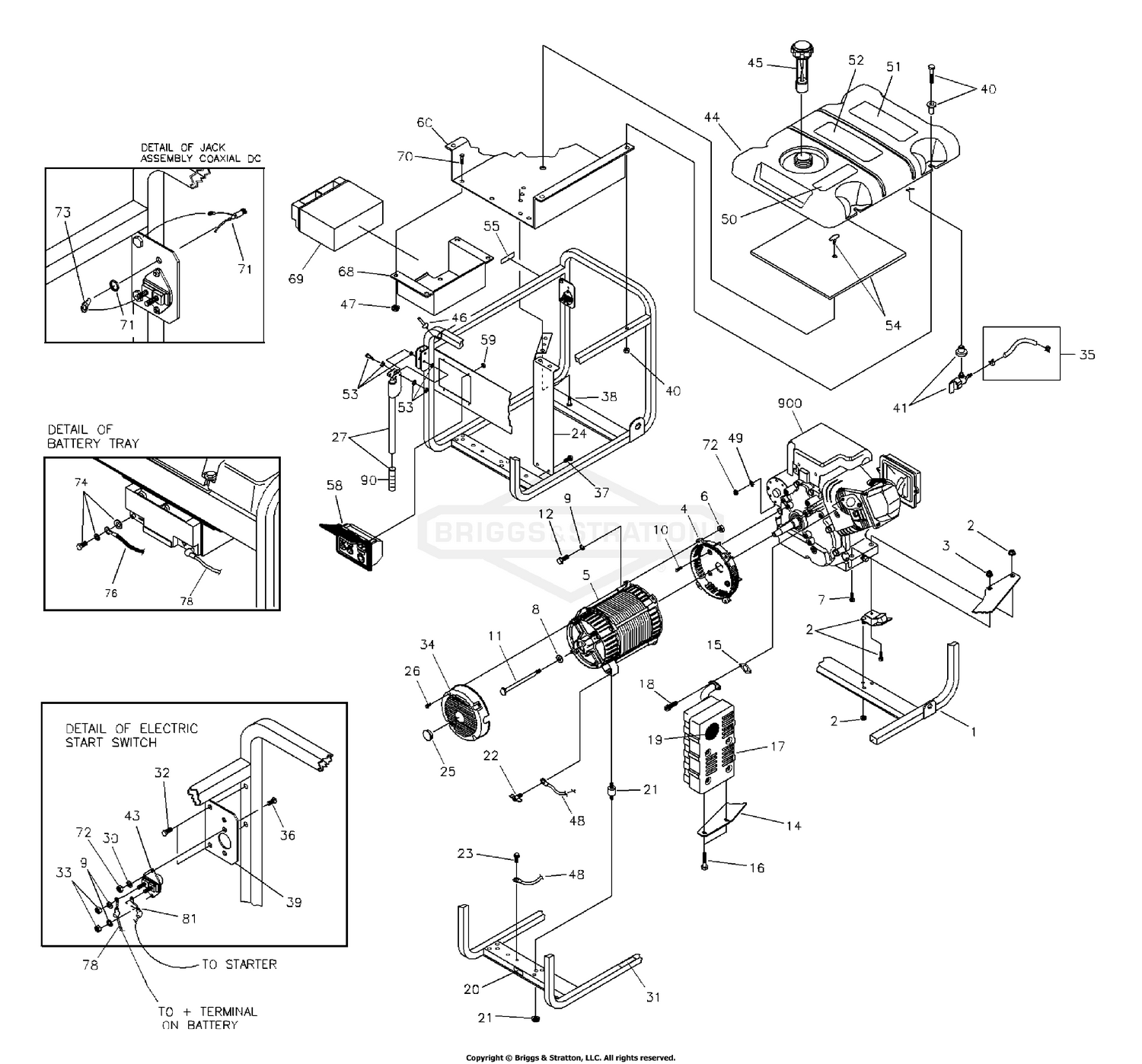

| Ref | Part Number | Description |
|---|
| 1 |
197464BNGS |
CRADLE This part replaces M197464GS. Price: $429.99 |
| 2 |
194150GS |
KIT, Vibration Mount, 45° Price: $12.92 |
| 3 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 4 |
190220GS |
HOUSING, Engine Adapter Price: $40.82 |
| 7 |
195398GS |
TPHMS, M8 - 1.25 x 35 Price: $2.49 |
| 8 |
96796GS |
WASHER, M8 Flat Price: $2.79 |
| 10 |
190274DGS |
SBHCS, 3/8-16 x 7/8 Lg. Price: $2.85 |
| 11 |
187365FGS |
HHCS, 5/16-24 x 7.44 Price: $15.29 |
| 14 |
189009GS |
BRACKET, Muffler Price: $20.75 |
| 15 |
695398 |
GASKET, Exhaust Price: $6.62 |
| 17 |
189008GS |
MUFFLER Price: $60.60 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 21 |
194153GS |
MOUNT-VIBRATION Price: $10.54 |
| 22 |
86494GS |
SCREW, Wing M6 - 1.0 x 16 Price: $2.51 |
| 23 |
313085GS |
SCREW This part replaces 86292GS. Price: $3.35 |
| 24 |
194390GS |
SHIELD, Heat Price: $75.99 |
| 25 |
191190GS |
CAP Price: $3.09 |
| 26 |
74908GS |
TAPTITE, M5-0.8 x 10 Price: $2.69 |
| 31 |
196830GS |
DECAL, Hot Muffler Price: $13.89 |
| 32 |
195094GS |
SCREW, 10 - 16 x .68 Self Drill Price: $2.49 |
| 34 |
195422GS |
COVER, Bearing Carrier w/Cap Price: $12.35 |
| 35 |
791745 |
LINE, Fuel Price: $8.97 |
| 37 |
B2153GS |
SCREW, 12-14 x 7/8 Self Drilling Price: $3.95 |
| 38 |
56893GS |
SCREW, 10-24 x 1/2 Crimptite Price: $1.95 |
| 39 |
188987GS |
BRACKET, Switch Price: $9.40 |
| 41 |
192980GS |
KIT, Valve, Tank Price: $16.43 |
| 43 |
77282GS |
SWITCH, Starter Price: $71.44 |
| 45 |
B4363GS |
CAP, Fuel Gauge Price: $38.55 |
| 46 |
B4135GS |
PIN, with Lanyard Price: $6.09 |
| 47 |
77395GS |
NUT, M6 Flange Lock Price: $3.09 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 50 |
188333GS |
DECAL, Instruction, Fuel Level Price: $20.85 |
| 51 |
194799GS |
DECAL, Danger Price: $10.48 |
| 52 |
189235GS |
DECAL, Start Instructions Price: $17.22 |
| 53 |
194034GS |
KIT, Handle Fold-down Hardware Price: $9.51 |
| 54 |
194448GS |
KIT, Insulation with Clip Price: $25.55 |
| 55 |
197798GS |
DECAL, Fuel Shut-off Price: $7.89 |
| 60 |
208564GS |
HEATSHIELD This part replaces 194389GS. Price: $107.49 |
| 68 |
195680GS |
TRAY, Battery Price: $58.29 |
| 69 |
193043GS |
BATTERY Price: $127.58 |
| 71 |
192531GS |
ASSY, Jack, DC Price: $7.55 |
| 73 |
58359GS |
LUG, 5/16 #22/18 I-S Price: $3.09 |
| 74 |
193347GS |
KIT, Battery Hardware Price: $2.49 |
| 76 |
185939KGS |
ASSY, Wire, #55 Price: $10.30 |
| 78 |
189302CGS |
ASSY, Wire, #13 Price: $12.60 |
| 81 |
189302GGS |
ASSY, Wire, #16 Price: $7.50 |
| 90 |
198669GS |
GRIP, Handle Price: $7.69 |
