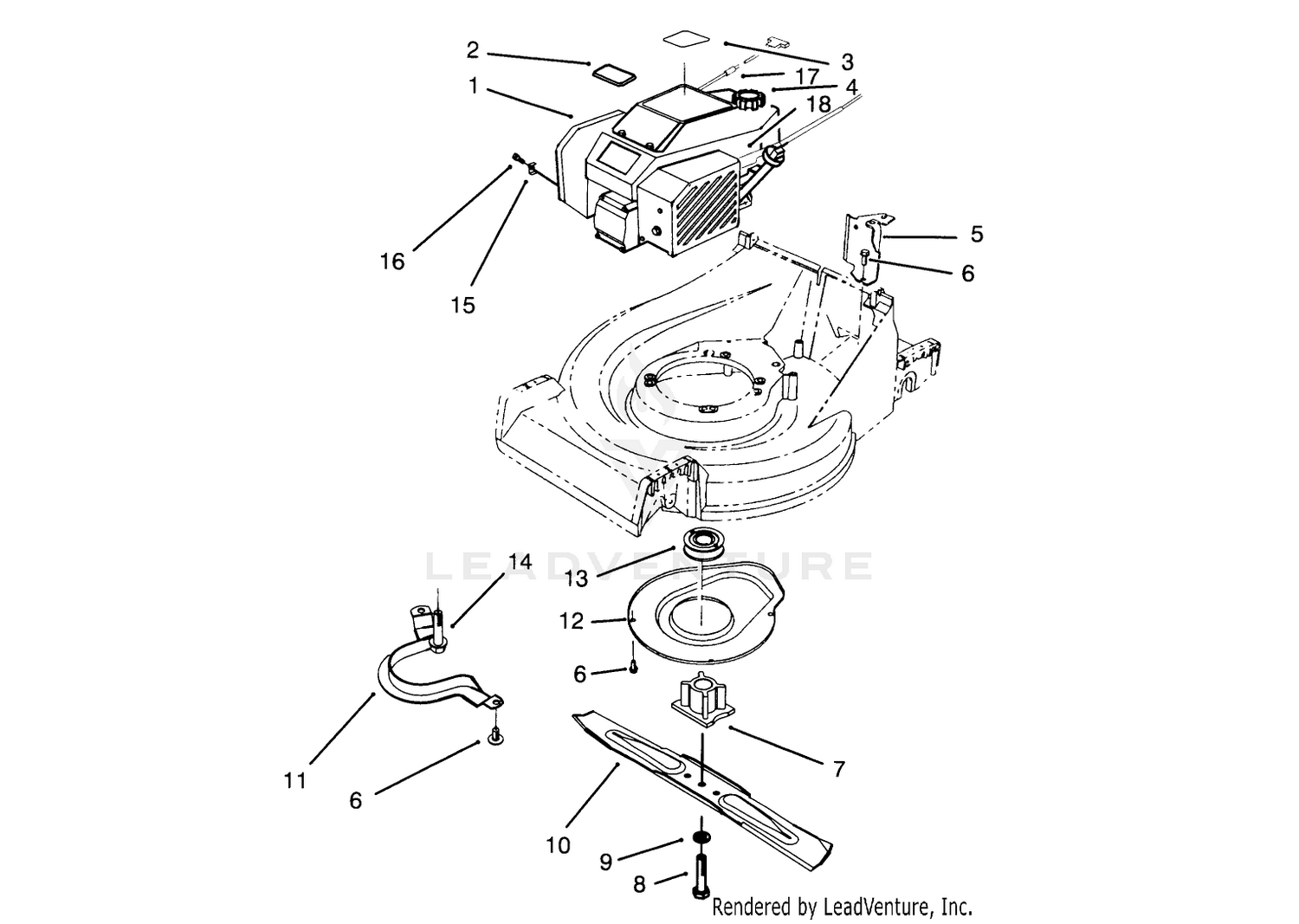

Engine Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 77-9280 | Short Block (Incl. Ref. #1, 7, 9, 9A, 45, 122, 883, 1022 pg. 11)(Incl. Ref. #16, 18, 25, 28, 29, 46, 219, 230, 615, 616, 979, 1024 pg. 12)(Incl. Ref. #163 pg. 14) This part replaces 93-1368. Price: $577.52 |
| 2 | 98-3206 | DECAL This part replaces 92-2289. Price: $1.99 |
| 3 | 93-4355 | DISCONTINUED This part replaces 92-7857. Price: Call Us |
| 4 | 55-3570 | GAS CAP ASM Price: $13.99 |
| 5 | 66-0030 | Bracket-Cable Support Price: Call Us |
| 6 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 7 | 62-7540 | BLADE RETAINER Price: $55.46 |
| 8 | 26-0670 | SCREW-BLADE Price: $3.65 |
| 9 | 3253-22 | WASHER-LOCK Price: $2.09 |
| 10 | 62-7700-03 | BLADE-21" This part replaces 62-7700. Price: $31.99 |
| 11 | 66-0570-03 | BRACKET-GUIDE, BELT This part replaces 66-0570. Price: $8.87 |
| 12 | 65-5200 | Cover Price: Call Us |
| 13 | 62-7550 | PULLEY-DRIVE, ZONE START Price: Call Us |
| 14 | 32144-102 | SCREW-HWH Price: $3.19 |
| 15 | 2210-249 | CLAMP-CASING Price: $2.05 |
| 16 | 86-7990 | CLAMP SCREW F/W ENGINE Price: $2.05 |
| 17 | 2210-316 | STOP-ROPE Price: $4.41 |
