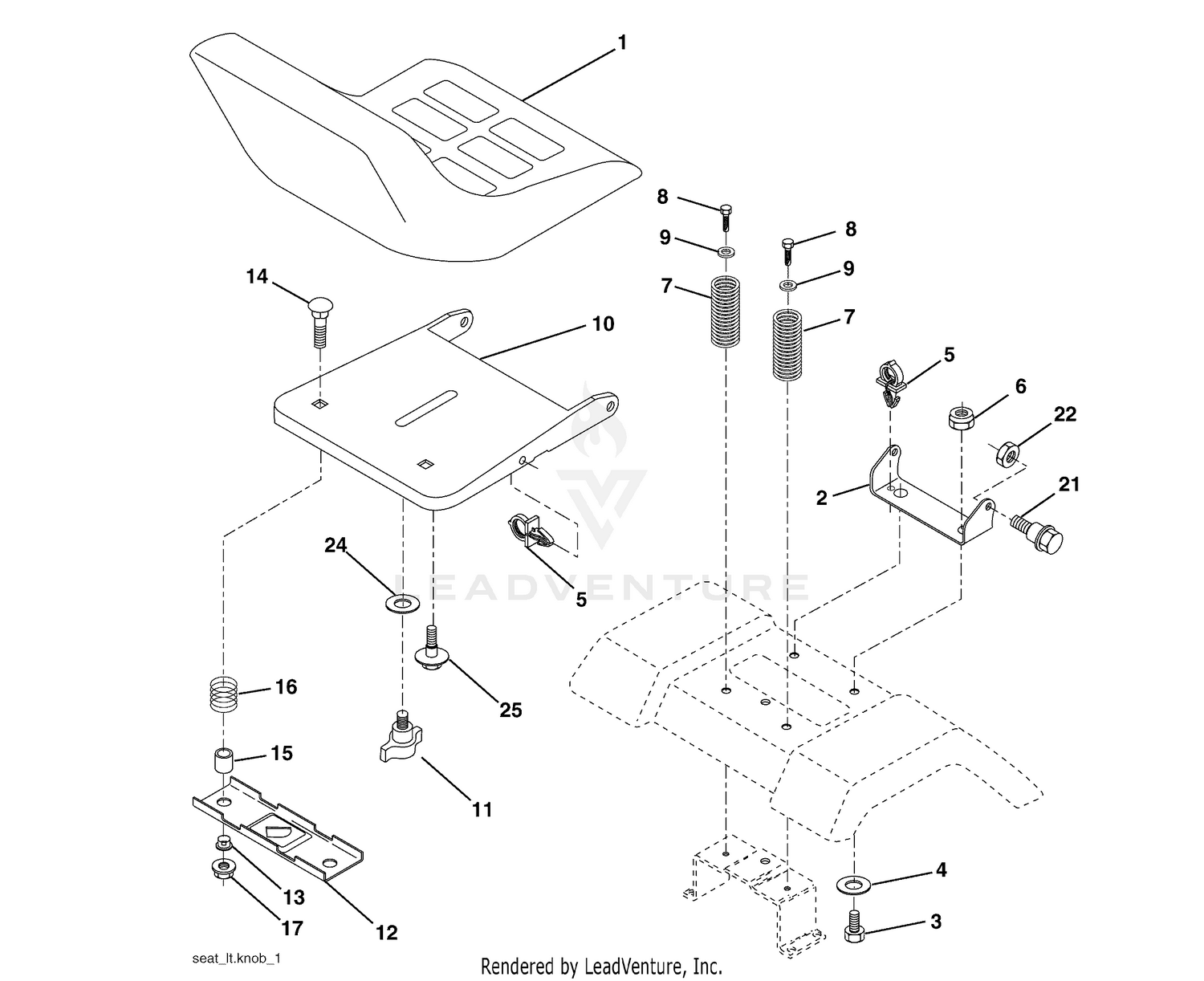

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 1 |
74-8580 |
DISCONTINUED Price: Call Us |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
60-6760 |
SCREW-HH Price: $0.55 |
| 3 |
3253-4 |
WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
74-8600 |
DISCONTINUED Price: Call Us |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
74-8610 |
PIN-SPRING Price: $2.73 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
74-8620 |
NUT - CONICAL Price: $4.43 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
74-8630 |
BUSHING-FLANGE Price: $6.93 |
| 8 |
74-8640 |
FLAT WASHER Price: $0.22 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
74-8650 |
PACER Price: $2.36 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 |
74-8660 |
INJECTION PUMP ASM Price: $4,965.85 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
74-8670 |
FUEL INLET ASM Price: $66.08 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $8.99 |
| 12 |
74-8680 |
GASKET Price: $5.51 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
48-7880 |
NUT-HEX Price: $0.25 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
3255-10 |
WASHER-LOCK / EXT This part replaces 74-8710. Price: $0.25 |
| 15 |
532121749 |
WASHER Price: $2.99 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
98-8806 |
SOLENOID VALVE This part replaces 74-8720. Price: $251.17 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
74-8730 |
SEAL RING Price: $1.30 |
| 18 |
74-8740 |
PUMP RETURN TUBE Price: $7.76 |
| 19 |
74-8750 |
INJECTION TUBE SET Price: $278.99 |
| 20 |
74-8760 |
DISCONTINUED Price: Call Us |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
74-8770 |
DISCONTINUED Price: Call Us |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 22 |
74-8780 |
DISCONTINUED Price: Call Us |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 29 |
74-8870 |
DISCONTINUED Price: Call Us |
| 31 |
74-8890 |
DISCONTINUED Price: Call Us |
| 32 |
46-0330 |
NUT-LOCK Price: $0.60 |
| 33 |
74-8900 |
WASHER-FLAT Price: $2.29 |
| 34 |
60-6700 |
BOLT-HH Price: $1.29 |
| 35 |
76-4910 |
STUD Price: $1.24 |
| 36 |
3253-4 |
WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 37 |
76-4930 |
WASHER Price: $0.93 |
| 38 |
76-4940 |
PULLEY-PUMP Price: $196.38 |
| 39 |
76-4950 |
NUT-FLANGE Price: $12.75 |
| 40 |
76-4960 |
DISCONTINUED Price: Call Us |
| 41 |
74-7560 |
LOCKWASHER Price: $0.67 |
