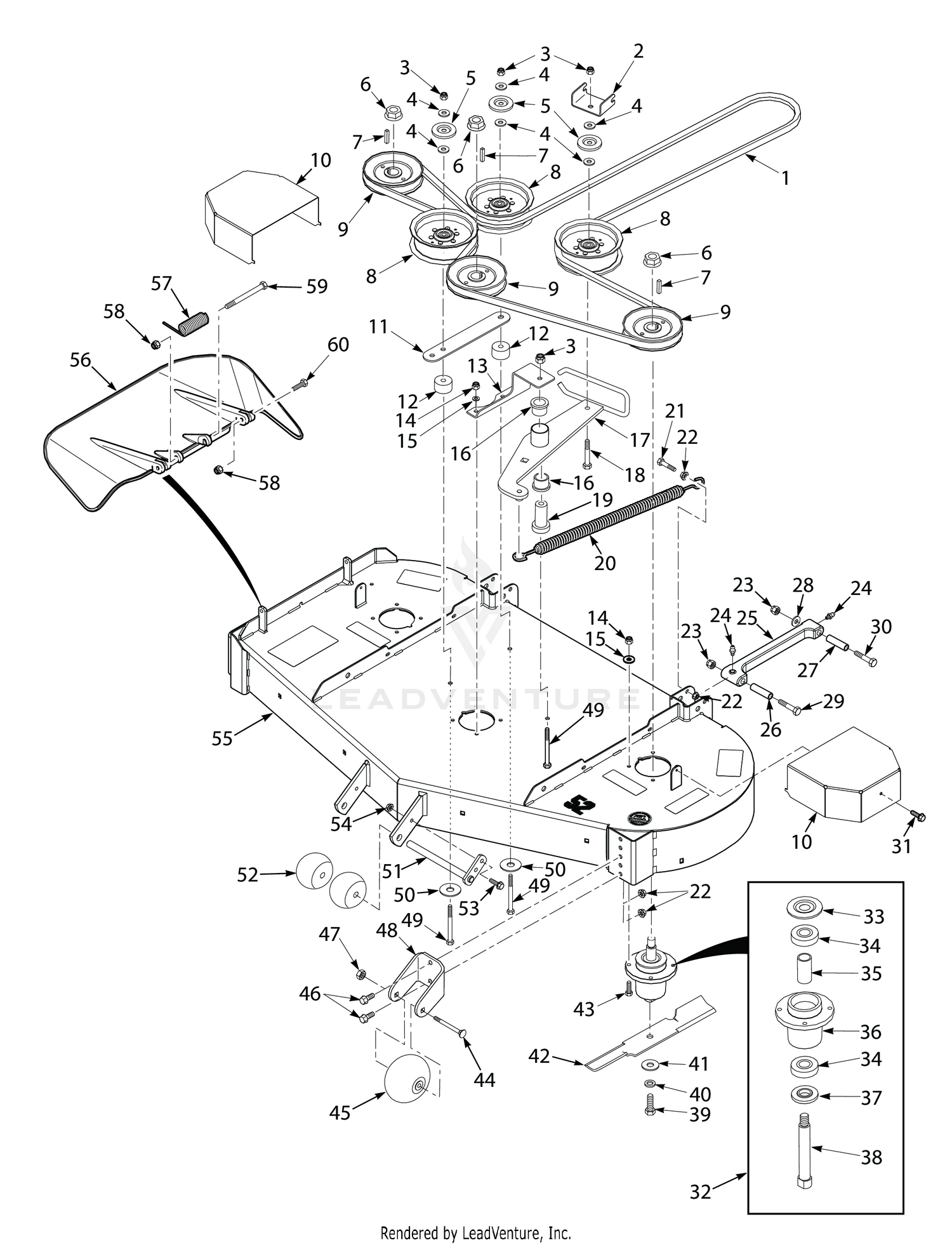

| Ref | Part Number | Description |
|---|
| 1 |
3217-7 |
NUT-HEX Price: $0.28 |
| 1 |
485424 |
Belt, Cutter Deck - 52H Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 3 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 3 |
27-3270-03 |
FAN SHROUD ASM This part replaces 27-3270. Price: $49.22 |
| 4 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 4 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 5 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 5 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 6 |
04112-06 |
Nut, 3/4-16 Spriral Lock Price: Call Us |
| 6 |
27-4160 |
PUMP CONTROL TUBE WA Price: $213.39 |
| 7 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Pulley Mtg. Price: Call Us |
| 7 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 8 |
27-4340-03 |
MASKED HUB & PLUG ASM This part replaces 27-4340. Price: $139.67 |
| 8 |
483422 |
Pulley, 5" Idler Price: Call Us |
| 9 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 9 |
483324 |
Pulley, 5.73" OD - 25mm Bore (52H) Price: Call Us |
| 10 |
27-3670 |
DISCONTINUED X-REF Price: Call Us |
| 10 |
426729 |
Belt Cover (52H) Price: Call Us |
| 11 |
274370 |
Pump Hub Price: Call Us |
| 11 |
424479 |
Brace, Pulley Price: Call Us |
| 12 |
3210-8 |
SCREW-HH Price: $1.02 |
| 12 |
43711 |
Spacer, Idler Pulley Price: Call Us |
| 13 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
424547 |
Support, Idler Pivot (52H) Price: Call Us |
| 14 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 14 |
33-2020 |
DISCONTINUED Price: Call Us |
| 15 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 15 |
32152-5 |
NUT-HEX Price: $0.54 |
| 16 |
323-38 |
SCREW-HH Price: $2.62 |
| 16 |
483453-03 |
Bearing, Plastic Price: Call Us |
| 17 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 17 |
462037 |
Idler Arm Price: Call Us |
| 18 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 18 |
27-3680 |
SPACER-MOUNTING Price: $6.65 |
| 19 |
43708 |
Pivot, Idler Price: Call Us |
| 19 |
86-7220 |
GEAR-PINION This part replaces 23-4810. Price: $81.33 |
| 20 |
32120-72 |
RING-SNAP Price: $2.09 |
| 20 |
483375 |
Spring, Cutter Deck Idler Price: Call Us |
| 21 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 21 |
27-3690 |
GASKET-TRANSMISSION Price: $8.27 |
| 22 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 22 |
27-3740 |
DISCONTINUED Price: Call Us |
| 23 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 23 |
27-4360 |
WASHER Price: $3.64 |
| 24 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 24 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 25 |
462769 |
Pusharm Assembly, LH Price: Call Us |
| 25 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 26 |
3218-5 |
NUT-JAM Price: $0.27 |
| 26 |
43985 |
Spacer, Pusharm - Deck Price: Call Us |
| 27 |
321-2 |
SCREW-HH Price: $2.79 |
| 27 |
43986 |
Spacer, Pusharm - Axle Price: Call Us |
| 28 |
04040-07 |
Flatwasher, 1/2 - .531 x 1.062 x .095 Price: Call Us |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
04001-145 |
Bolt, Hex Head 1/2-13 x 3-1/2" Price: Call Us |
| 29 |
27-5310-03 |
DISCONTINUED This part replaces 27-5310. Price: Call Us |
| 30 |
04001-52 |
Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower) Price: Call Us |
| 31 |
04011-29 |
Screw, 1/4-20 x .375" (52H) Price: Call Us |
| 32 |
461950 |
Spindle Assembly Price: Call Us |
| 33 |
483304 |
Debris Shield Price: Call Us |
| 34 |
483303 |
Bearing Price: Call Us |
| 35 |
43693 |
Spacer, Bearing Price: Call Us |
| 36 |
462014 |
Spindle Housing Assembly Price: Call Us |
| 37 |
43694 |
Protector, Bearing Price: Call Us |
| 38 |
43695 |
Shaft, Spindle Price: Call Us |
| 39 |
04001-121 |
Bolt, Hex Head 5/8-11 x 1-1/2" Price: Call Us |
| 40 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 41 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 42 |
482878 |
Cutter Blade, 18" (52H) Price: Call Us |
| 43 |
04001-175 |
Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8 Price: Call Us |
| 44 |
04003-26 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 45 |
481632 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 46 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 47 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 48 |
427865 |
Bracket, Anti-Scalp, (Black) Price: Call Us |
| 49 |
04001-77 |
Bolt, Hex Head, 3/8-16 x 3-1/2" Price: Call Us |
| 50 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .1875 Price: Call Us |
| 51 |
451926 |
Shaft Weldment, Guide Roller Price: Call Us |
| 52 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 53 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 54 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 55 |
463266 |
Cutter Deck w/Decals (52H) Price: Call Us |
| 56 |
462032 |
Discharge Chute (52H) Price: Call Us |
| 57 |
482245 |
Spring, Discharge Chute Price: Call Us |
| 58 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 59 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
| 462770 |
Pusharm |
Assembly, RH Price: Call Us 462770 |
