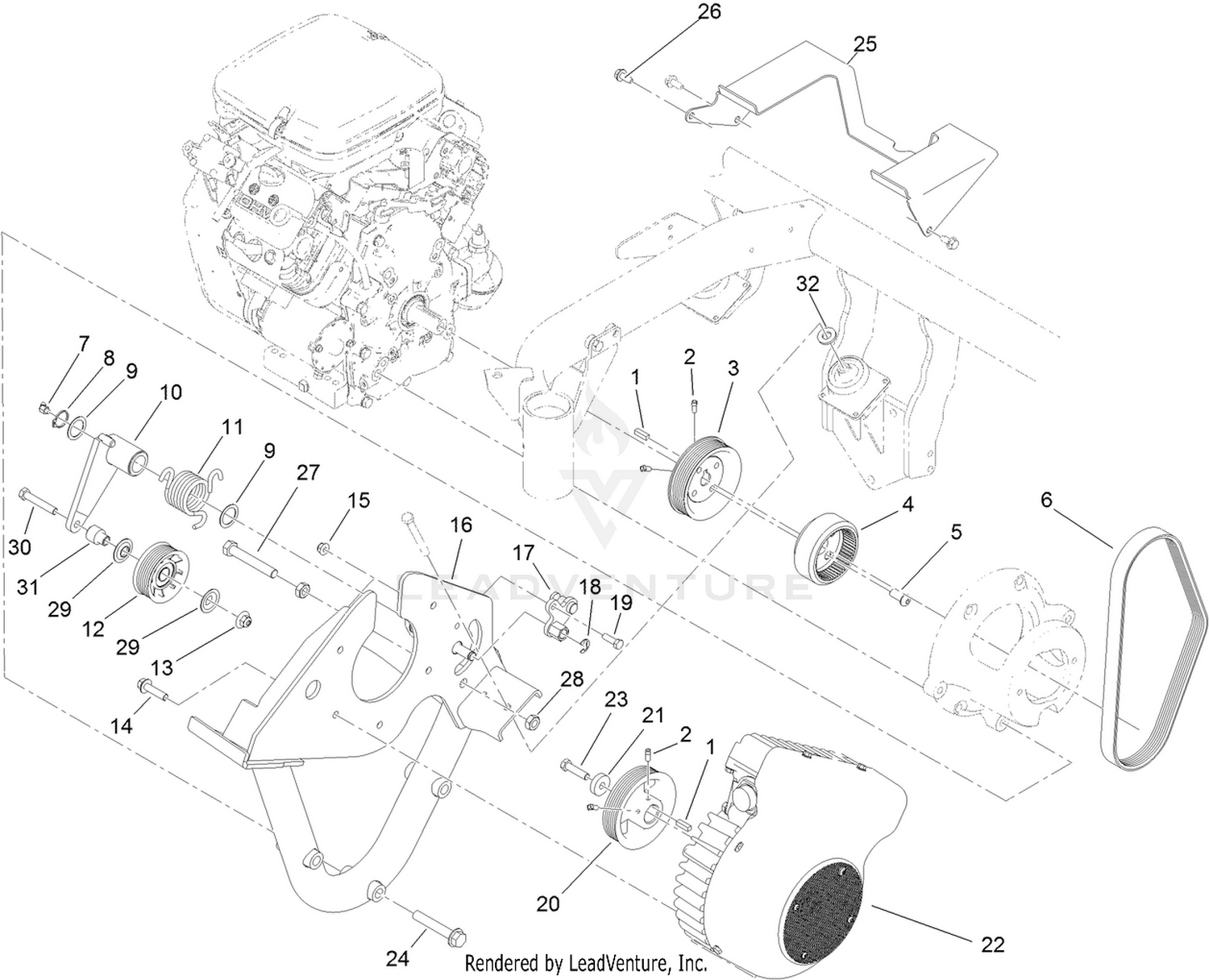

| Ref | Part Number | Description |
|---|
| 1 |
10-7070 |
KEY-SQUARE Price: $1.02 |
| 2 |
3241-7 |
SCREW-SQH Price: $3.39 |
| 3 |
117-4449 |
PULLEY-ENGINE Price: $360.10 |
| 4 |
119-4484 |
COUPLING Price: $90.93 |
| 5 |
119-8195 |
SCREW-HSBH Price: $1.97 |
| 6 |
117-4406 |
BELT-V Price: $70.50 |
| 7 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 8 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 9 |
74-1810 |
WASHER Price: $0.39 |
| 10 |
145-0052 |
IDLER BRACKET ASM This part replaces 117-9292. Price: $106.25 |
| 11 |
117-9282 |
SPRING-TORSION Price: $18.48 |
| 12 |
120-5766 |
PULLEY Price: $53.38 |
| 13 |
109-6658 |
NUT-FLANGE, NI Price: $0.89 |
| 14 |
114-4681 |
SCREW-HHF Price: $0.89 |
| 15 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 16 |
117-4423-03 |
FRAME-ENGINE Price: $579.42 |
| 17 |
117-9289 |
ADJUSTER-SPRING Price: $30.83 |
| 18 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 19 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 20 |
115-9806 |
PULLEY-GENERATOR Price: $263.47 |
| 21 |
117-3657 |
SPACER Price: $27.69 |
| 22 |
127-2580 |
GENERATOR/CONTROLLER ASM This part replaces 117-8185. Price: $7,179.45 |
| 23 |
3211-6 |
SCREW-HH Price: $3.87 |
| 24 |
3234-40 |
SCREW-HF Price: $3.38 |
| 25 |
145-4561-03 |
SHIELD-BELT This part replaces 115-8197-03. Price: $72.53 |
| 26 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 27 |
325-13 |
SCREW-HH Price: $3.57 |
| 28 |
3218-5 |
NUT-JAM Price: $0.27 |
| 29 |
120-5757 |
WASHER-FLANGE Price: $6.31 |
| 30 |
323-11 |
SCREW-HH Price: $1.08 |
| 31 |
120-2009 |
SPACER-PULLEY, IDLER Price: $53.47 |
