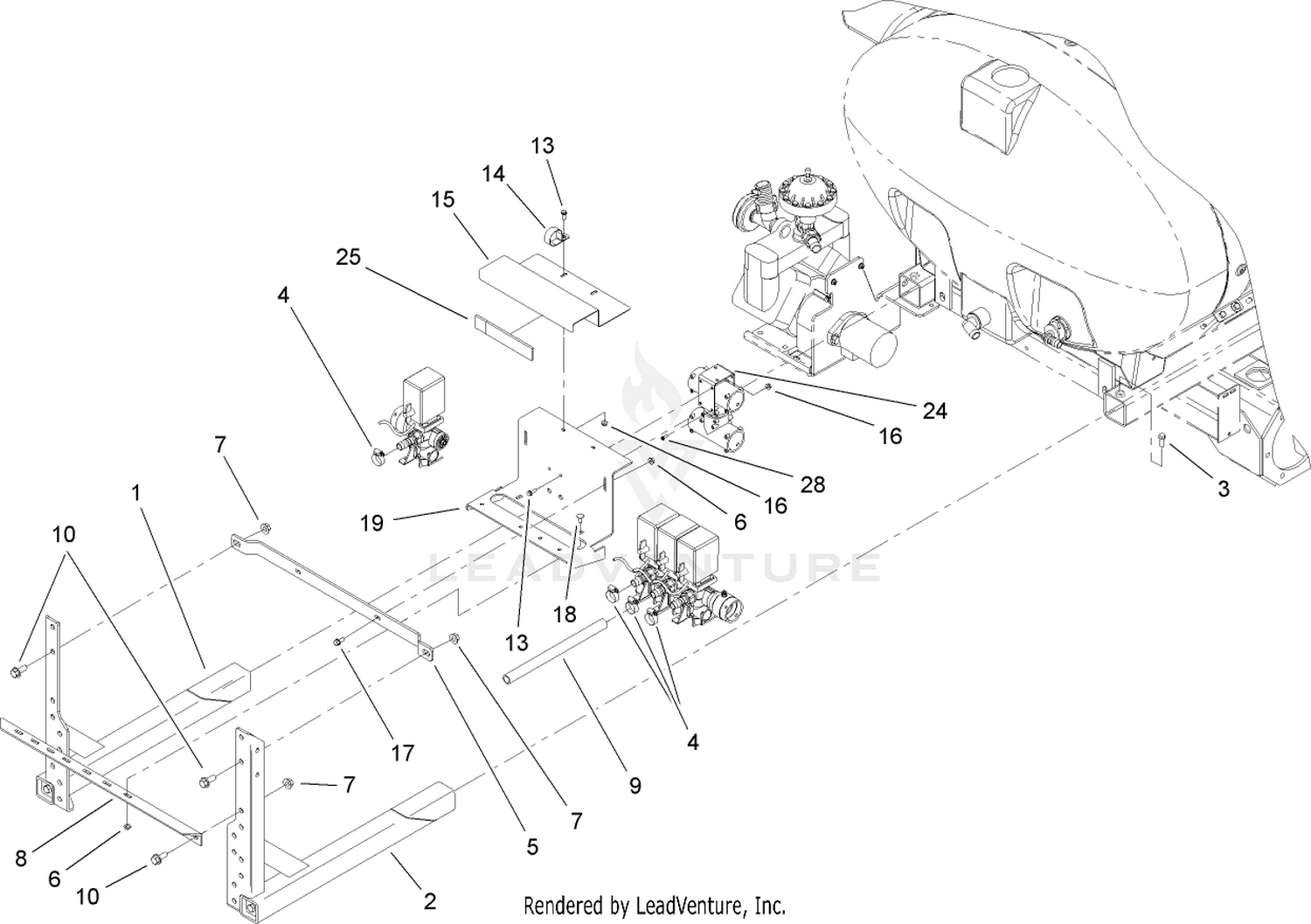

Sprayer Component Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 325-4 | SCREW-HH Price: $0.95 |
| 4 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 5 | 104-9073-03 | BAR-MOUNTING, VALVE Price: $60.17 |
| 6 | 32128-20 | NUT-HF Price: $0.99 |
| 7 | 108-3745 | NUT-HHF, WHIZ Price: $1.15 |
| 8 | 42225-03 | ANGLE-SUPPORT, CROSS Price: $59.95 |
| 9 | 108-3256 | HOSE-JUMPER Price: $32.21 |
| 10 | 110-5057 | CAPSCREW-HHF Price: $2.71 |
| 13 | 3234-4 | SCREW-HHF Price: $0.50 |
| 14 | 2412-147 | CLAMP-R Price: $2.51 |
| 15 | 108-3711-03 | BRACKET-SUPPORT, VALVE Price: $50.61 |
| 16 | 32128-33 | NUT-HF Price: $0.25 |
| 17 | 3234-5 | SCREW-HHF Price: $0.42 |
| 18 | 3230-1 | BOLT-CARR Price: $1.49 |
| 19 | 108-3712-03 | BRACKET-VALVE, BOOM Price: $138.93 |
| 24 | 100-8478 | BRACKET-TEE Price: $56.89 |
| 25 | 100-8524 | STRIP-FOAM Price: $13.65 |
