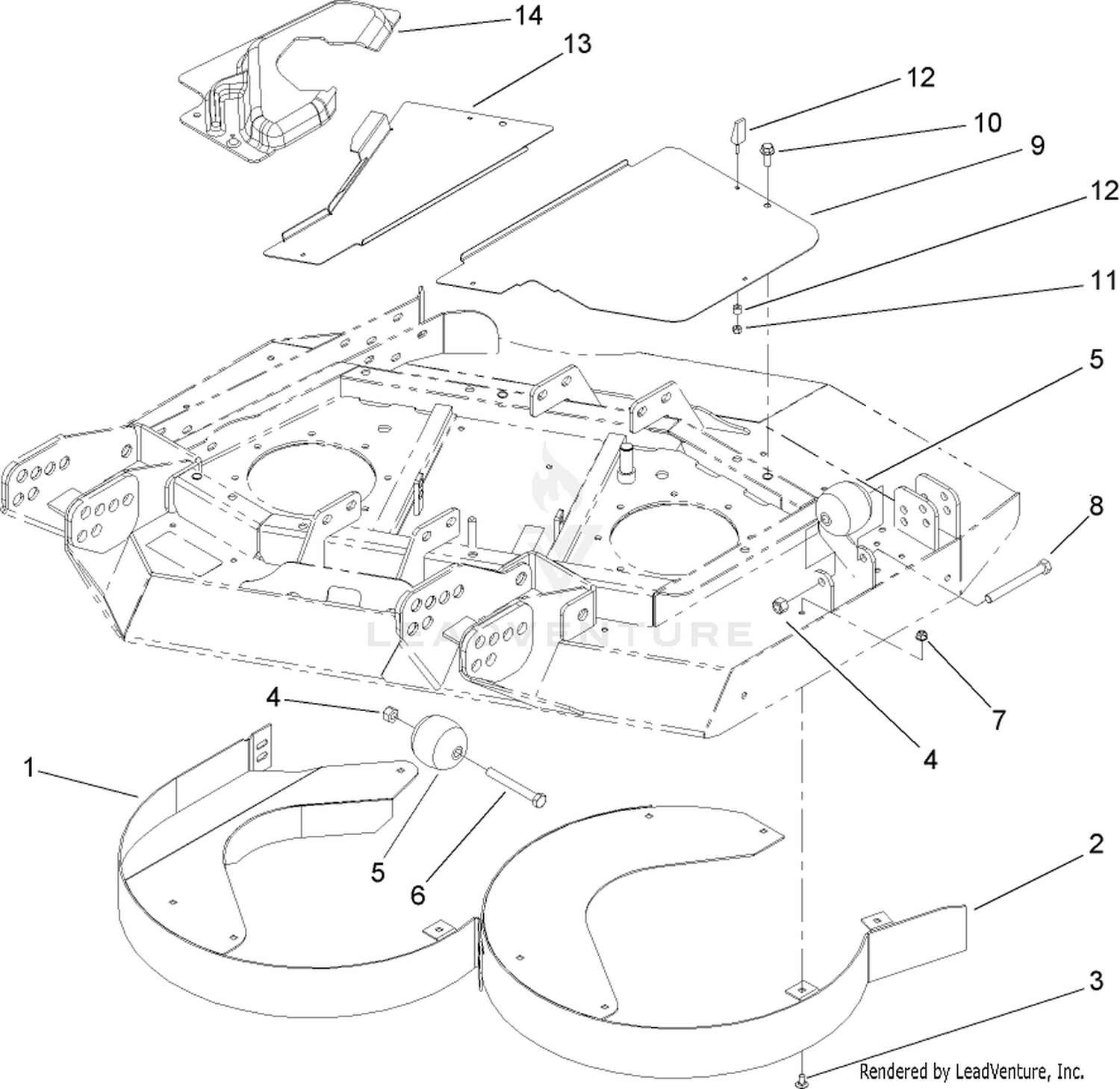

Right Hand Deck Rear Discharge Chamber and Cover Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-2203-01 | OUTER CHAMBER ASM Price: $312.00 |
| 2 | 104-2204-01 | CHAMBER-INNER Price: $332.19 |
| 3 | 3230-18 | SCREW-CARR Price: $4.09 |
| 4 | 3296-25 | NUT-LOCK, NI Price: $1.34 |
| 5 | 29-4820 | ROLLER Price: $14.88 |
| 6 | 325-17 | SCREW-HH Price: $2.90 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 325-18 | SCREW-HH Price: $3.19 |
| 9 | 100-5668-03 | PLATE-COVER, RH SIDE Price: $77.06 |
| 10 | 3234-42 | SCREW-HHF Price: $1.10 |
| 11 | 1-804254 | NUT-LOCK, HH Price: $1.29 |
| 12 | 74-5950 | LATCH-SWELL Price: $21.28 |
| 13 | 100-5665-03 | PLATE-COVER, RH Price: $73.07 |
