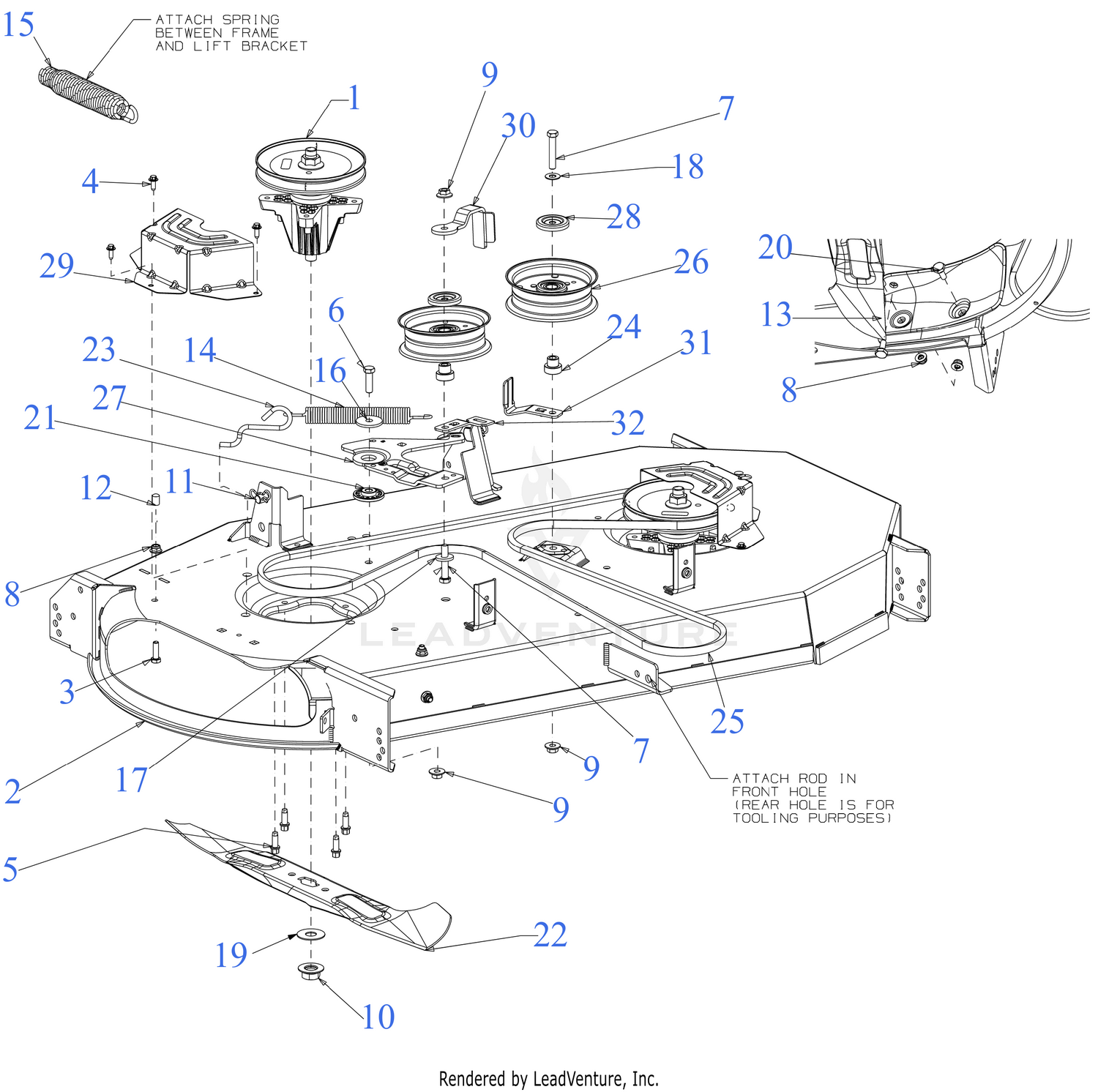

| Ref | Part Number | Description |
|---|
| 3 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 4 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 5 |
710-06322 |
SCREW 5/16-18 x .875 Price: $4.55 |
| 6 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 8 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 9 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 10 |
712-07050 |
HEX FLANGE NUT 5/8-18 GR5 Price: $5.16 |
| 11 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 12 |
720-05010 |
VINYL CAP Price: $3.70 |
| 13 |
731-10629A |
DISCHARGE BAFFLE Price: $18.25 |
| 14 |
732-04960 |
EXTENSION SPRING Price: $13.05 |
| 15 |
732-05242C |
LIFT ASSIST SPRING (LARGE) Price: $19.33 |
| 16 |
736-0227 |
FLAT WASHER .390x1.500x.134 Price: $5.78 |
| 17 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 18 |
736-05080 |
FLAT WASHER .401X.88 Price: $2.72 |
| 19 |
736-3088 |
FLAT WASHER .635X1.585X.062 HDN Price: $3.90 |
| 20 |
738-04033 |
SHOULDER SCREW This part replaces 938-04033. Price: $4.38 |
| 21 |
738-05099 |
SHOULDER SPACER Price: $6.47 |
| 23 |
747-05608A |
DECK SPRING HOOK Price: $2.94 |
| 24 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 25 |
954-05087A |
V-BELT A SECX108.3 Price: $72.07 |
| 26 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 28 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 30 |
783Z08619A |
BELT KEEPER This part replaces 783E08619A. Price: $21.88 |
