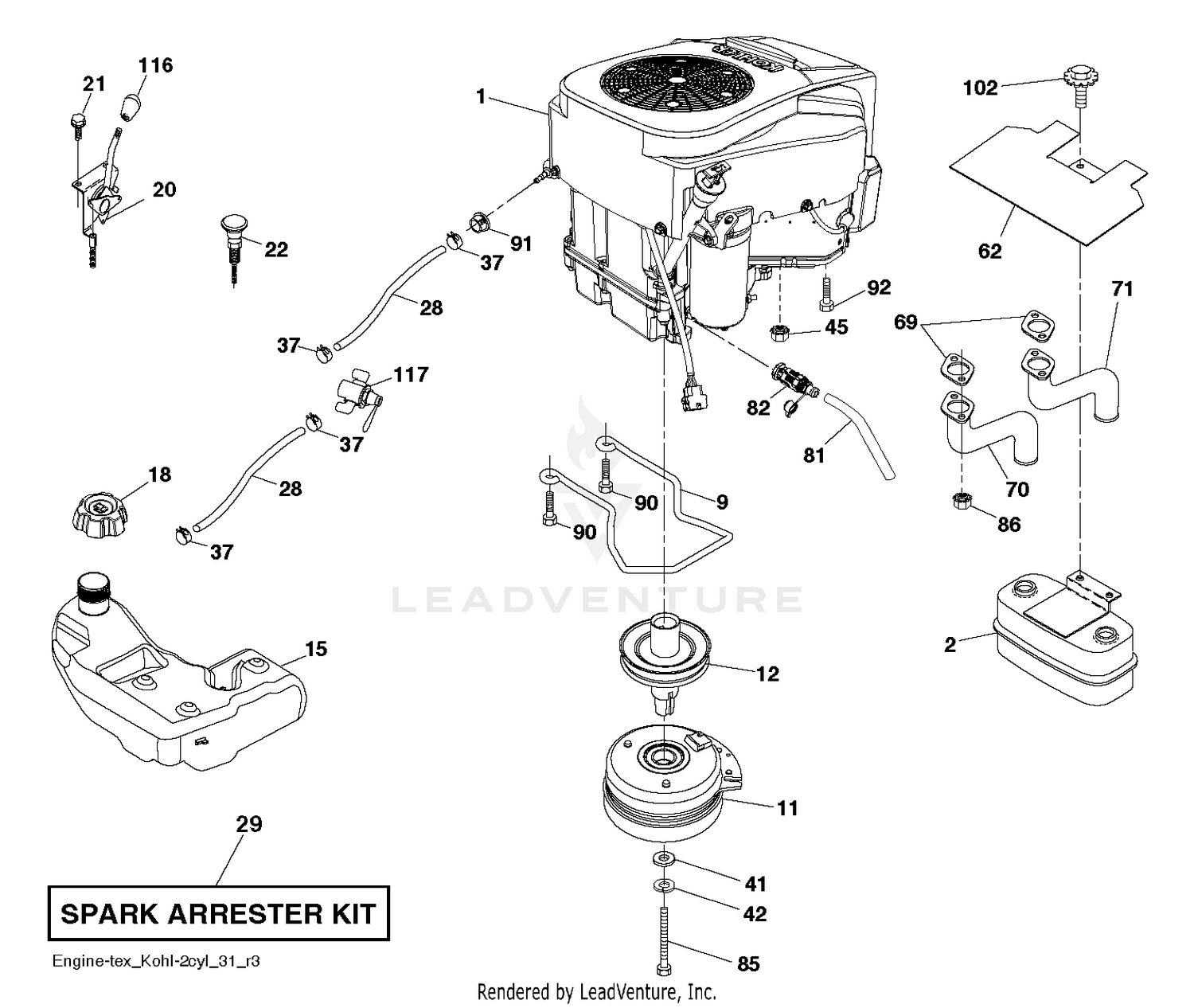

| Ref | Part Number | Description |
|---|
| 1 |
119-8040 |
KNOBS SERVICE KIT Price: $104.29 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 6 |
108-4584 |
WEIGHT INDICATOR SERVICE KIT Price: $54.95 |
| 7 |
108-9632 |
ROLLER Price: $5.85 |
| 8 |
108-9633 |
SPRING-EXTENSION Price: $49.40 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 10 |
112-0164 |
BOOT KIT Price: $181.52 |
| 12 |
586899601 |
PULLEY.EXTENDED.SHAFT.GROUND Price: $29.99 |
| 18 |
108-9634 |
BUMPER Price: $8.80 |
| 20 |
587631703 |
THROTTLE.KOHL.PRO.#88PAD_46" Price: $27.99 |
| 21 |
108-9614 |
DAMPER Price: $191.10 |
| 21 |
583533301 |
SCREW.#10X.750 (2 2) This part replaces 532438562. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
108-9622 |
TUBE Price: $19.15 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 33 |
3290-54 |
RIVET-BLIND This part replaces 3269-16. Price: $0.25 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
3272-9 |
PIN-COTTER Price: $0.20 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 Price: $19.99 |
| 71 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 Price: $17.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606701 |
BOLT.HEX.7/16-20X5.GR5.GREEN Price: $7.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
