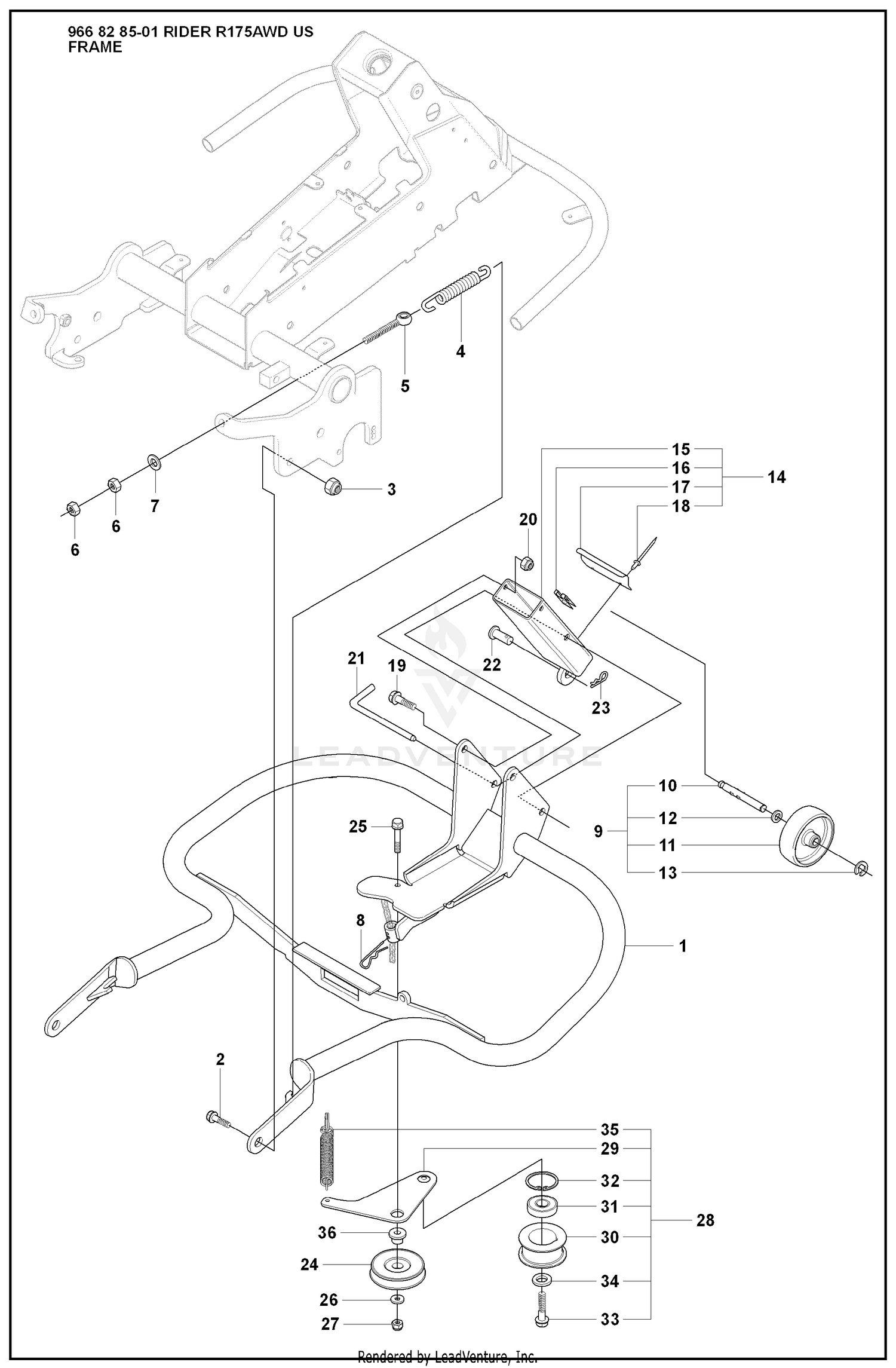

Frame
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535490102 | DECK FRAME Price: $255.99 |
| 1 | 98-5454 | TENSION ARM - RIGHT Price: Call Us |
| 2 | 506895801 | BOLT Price: $6.99 |
| 2 | 98-5833 | BALL JOINT Price: $143.57 |
| 3 | 33018-00 | NUT-HEX Price: $0.68 |
| 3 | 732252201 | Nut Price: $2.65 |
| 4 | 506837601 | SPRING Price: $27.99 |
| 4 | 98-5810 | ROD - TENSION Price: $182.67 |
| 5 | 33114-016 | SCREW-HH Price: $0.27 |
| 5 | 506837701 | SCREW Price: $8.99 |
| 6 | 3253-4 | WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 6 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 7 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 7 | 98-5455 | TENSION ARM - RIGHT Price: $206.00 |
| 8 | 506966601 | RETAINER Price: $3.99 |
| 9 | 506981401 | WHEEL ASSY Price: $11.99 |
| 9 | 98-5457 | SPACER Price: Call Us |
| 10 | 506980001 | SHAFT Price: $17.99 |
| 10 | 98-5834 | BALL JOINT,LH THREAD Price: $143.57 |
| 11 | 506979601 | WHEEL Price: $19.99 |
| 12 | 734117771 | BUSHING Price: $3.99 |
| 13 | 33114-030 | SCREW-HH Price: $0.50 |
| 13 | 735311520 | RETAINING RING Price: $2.99 |
| 14 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 14 | 506997801 | LINK ASSY Price: $39.99 |
| 15 | 33094-00 | WASHER-PLAIN Price: $0.25 |
| 15 | 506997901 | LINK Price: $84.99 |
| 16 | 506963701 | BRACKET Price: $5.99 |
| 16 | 98-5444 | BUSHING Price: $18.39 |
| 17 | 506982801 | BRACKET Price: $6.99 |
| 18 | 722783902 | Rivet Price: $1.99 |
| 18 | 98-5523 | STOP-RUBBER Price: $48.53 |
| 19 | 506597401 | BOLT Price: $5.99 |
| 20 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 21 | 506974601 | PIN Price: $19.99 |
| 21 | 98-5450 | RING Price: Call Us |
| 22 | 721861701 | BOLT Price: $8.99 |
| 23 | 721680251 | R-CLIP Price: $4.99 |
| 24 | 506974801 | PULLEY Price: $44.99 |
| 25 | 725246151 | BOLT Price: $4.99 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 28 | 535493601 | BELT TENSIONER ASSY Price: $69.99 |
| 29 | 535493701 | TENSIONER Price: $45.99 |
| 30 | 505153901 | BELT TENSIONER WHEEL ASSY This part replaces 506928901. Price: $54.99 |
| 31 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 32 | 735313810 | RETAINING RING Price: $2.99 |
| 33 | 506558302 | BOLT Price: $3.99 |
| 34 | 734116441 | SPACER Price: $3.99 |
| 35 | 594020601 | Springs This part replaces 506976801. Price: $14.99 |
