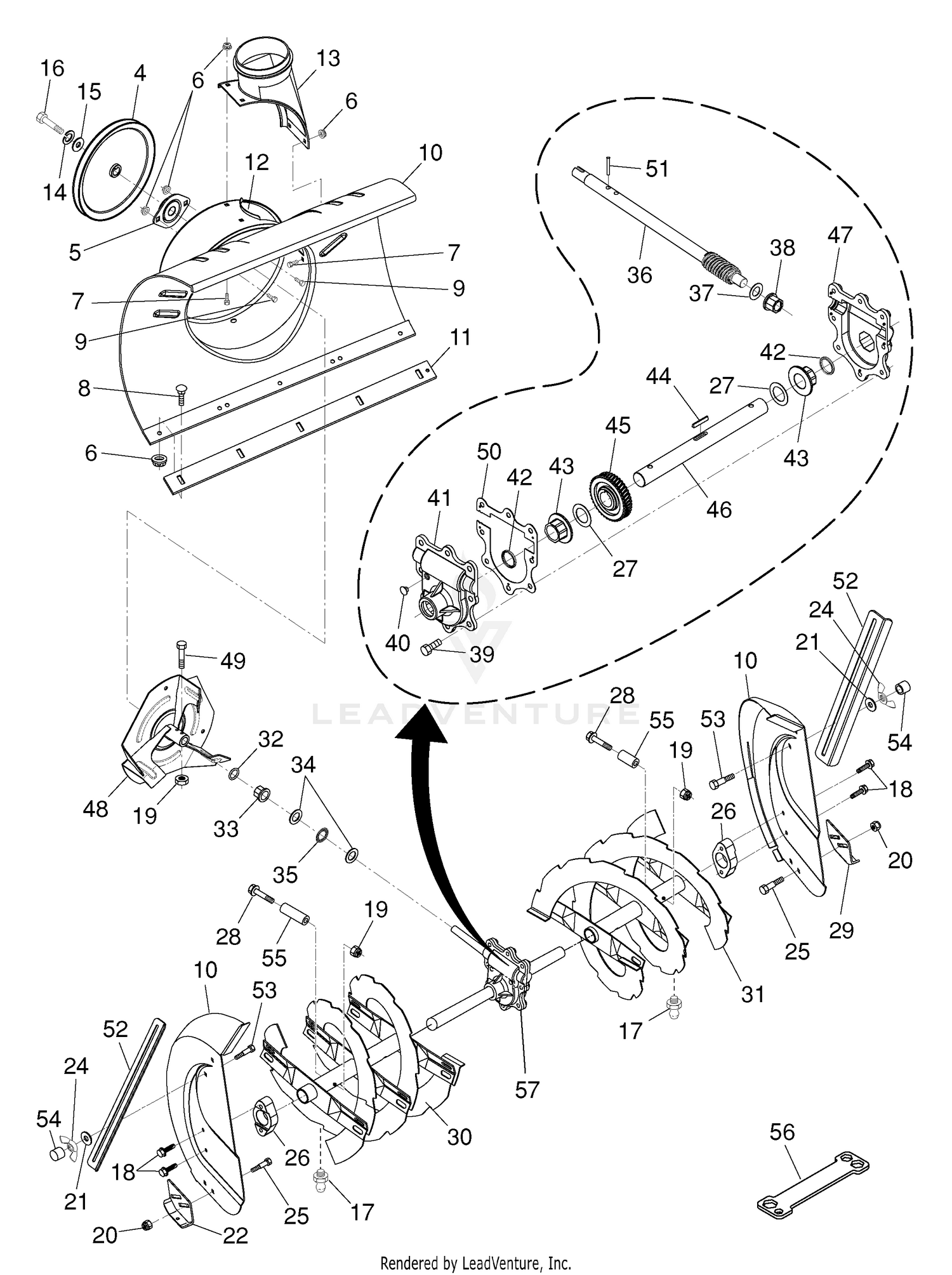

| Ref | Part Number | Description |
|---|
| 1 |
63-7440 |
SOLENOID Price: $480.88 |
| 2 |
42-9110 |
GASKET This part replaces 53-8130. Price: $29.21 |
| 3 |
76-4860 |
MUFFLER - EXHAUST This part replaces 63-6810. Price: $570.11 |
| 4 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532191079. Price: $27.99 |
| 5 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 5 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 6 |
596039201 |
GSPW Hardware This part replaces 532198541. Price: $2.99 |
| 6 |
66-2360-03 |
MUFFLER SUPPORT ASM This part replaces 66-2360. Price: $48.95 |
| 7 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 7 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 8 |
66-2870 |
CABLE-HOOD STOP Price: $27.51 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
532199879 |
BOLT.HEX Price: $6.99 |
| 10 |
581708369 |
KIT.AUGER.HOUSING.404930X668 This part replaces 532407644. Price: $279.99 |
| 10 |
93-9991-03 |
BRACKET-CLUTCH ANCHOR This part replaces 63-6700. Price: $15.31 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
532435830 |
BAR.SCRAPER.30.BLACK This part replaces 532407695. Price: $17.99 |
| 12 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 12 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 13 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 13 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 14 |
321-3 |
SCREW-HH Price: $0.28 |
| 14 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 15 |
3296-9 |
NUT-HEX Price: $0.25 |
| 15 |
532198552 |
WASHER, LOCK 5/16 Price: $6.99 |
| 16 |
63-8230 |
ANGLE-CLUTCH ANCHOR Price: $8.43 |
| 16 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 17 |
532405637 |
GREASE FITTING Price: $3.99 |
| 17 |
66-2910 |
BUMPER Price: $1.94 |
| 18 |
3250-39 |
SCREW-PPH Price: $0.25 |
| 18 |
532179582 |
SCREW, HEX HD 5/16X1 Price: $3.99 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 20 |
596039201 |
GSPW Hardware This part replaces 532198541. Price: $2.99 |
| 20 |
66-2900 |
BALLEND-FEMALE Price: $71.56 |
| 21 |
3220-2 |
NUT-JAM Price: $0.50 |
| 21 |
532401347 |
WASHER.12021.438X.75X.06.PLS Price: $2.99 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
532401347 |
WASHER.12021.438X.75X.06.PLS Price: $2.99 |
| 23 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 24 |
43-2740 |
GASKET ME 660042 Price: $8.23 |
| 24 |
532128638 |
NUT WING PM Price: $3.99 |
| 25 |
3212-5 |
SCREW-HH Price: $2.46 |
| 25 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 26 |
532420478 |
BEARING.AUGER.SHAFT This part replaces 532174658. Price: $7.99 |
| 26 |
63-6290 |
PIN-PTO TENSION Price: $24.06 |
| 27 |
3-6624 |
DISCONTINUED Price: Call Us |
| 27 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 28 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 28 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR This part replaces 532198636. Price: $1.00 |
| 29 |
532407834 |
SKID PLATE Price: $17.99 |
| 29 |
66-3100 |
SCREW-HH Price: $2.58 |
| 30 |
547572001 |
AUGER KIT 30" RH 420498X498 This part replaces 532407647. Price: $149.99 |
| 30 |
67-1631 |
SPACER Price: $13.71 |
| 31 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 31 |
547571901 |
AUGER KIT 30" LH 420497X498 This part replaces 532407646. Price: $149.99 |
| 32 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 32 |
532407768 |
O-RING Price: $3.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $7.99 |
| 33 |
92-8799 |
BEARING-FLANGE This part replaces 251-335. Price: $126.15 |
| 34 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 34 |
63-6250 |
DISCONTINUED Price: Call Us |
| 35 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 35 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 36 |
256-299 |
BUSHING-STRAIGHT Price: $10.86 |
| 36 |
532407757 |
SHAFT, IMPELLER Price: $89.99 |
| 37 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 37 |
67-1800 |
DISCONTINUED Price: Call Us |
| 38 |
3-4324 |
WASHER-FLAT Price: $1.22 |
| 38 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $22.99 |
| 39 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $4.99 |
| 40 |
110-9697 |
ELECTRIC CLUTCH KIT This part replaces 63-6050. Price: $1,166.55 |
| 40 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW This part replaces 532407760. Price: $3.99 |
| 41 |
532174688 |
HOUSING.GEARBOX.RH.SNOW This part replaces 532407761. Price: $22.99 |
| 41 |
63-8150 |
KEY-SQUARE Price: $9.44 |
| 42 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $4.99 |
| 42 |
63-6690 |
DISCONTINUED Price: Call Us |
| 43 |
323-34 |
SCREW-HH Price: $0.54 |
| 43 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $29.99 |
| 44 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 44 |
63-6030 |
CLUTCH HUB (MACHINED)*O Price: $356.75 |
| 45 |
598831601 |
Service Kit This part replaces 532407763. Price: $199.99 |
| 46 |
43-2750 |
NUT MM 409671 Price: $18.31 |
| 46 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $59.99 |
| 47 |
32151-83 |
RING-SNAP Price: $0.34 |
| 47 |
532407765 |
HOUSING.GEARBOX.LH(SERVICE) Price: $22.99 |
| 48 |
33114-020 |
SCREW-HH This part replaces 66-3160. Price: $0.28 |
| 48 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 49 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 49 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 50 |
532175311 |
GASKET.AUGER.GEARBOX This part replaces 532407766. Price: $7.99 |
| 51 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 52 |
532435832 |
BAR.DRIFT.CUTTER.BLACK This part replaces 532407651. Price: $19.99 |
| 53 |
532198648 |
BOLT, HEX HEAD Price: $3.99 |
| 54 |
532198709 |
STOP.11261.PLASTIC.30X50L.RED Price: $5.99 |
| 55 |
532198638 |
SPACER.3943.SLEEVE.250X.47 Price: $5.99 |
| 56 |
532429112 |
WRENCH.SNOWTHROWER.ZINC.YZ This part replaces 532180684. Price: $3.99 |
