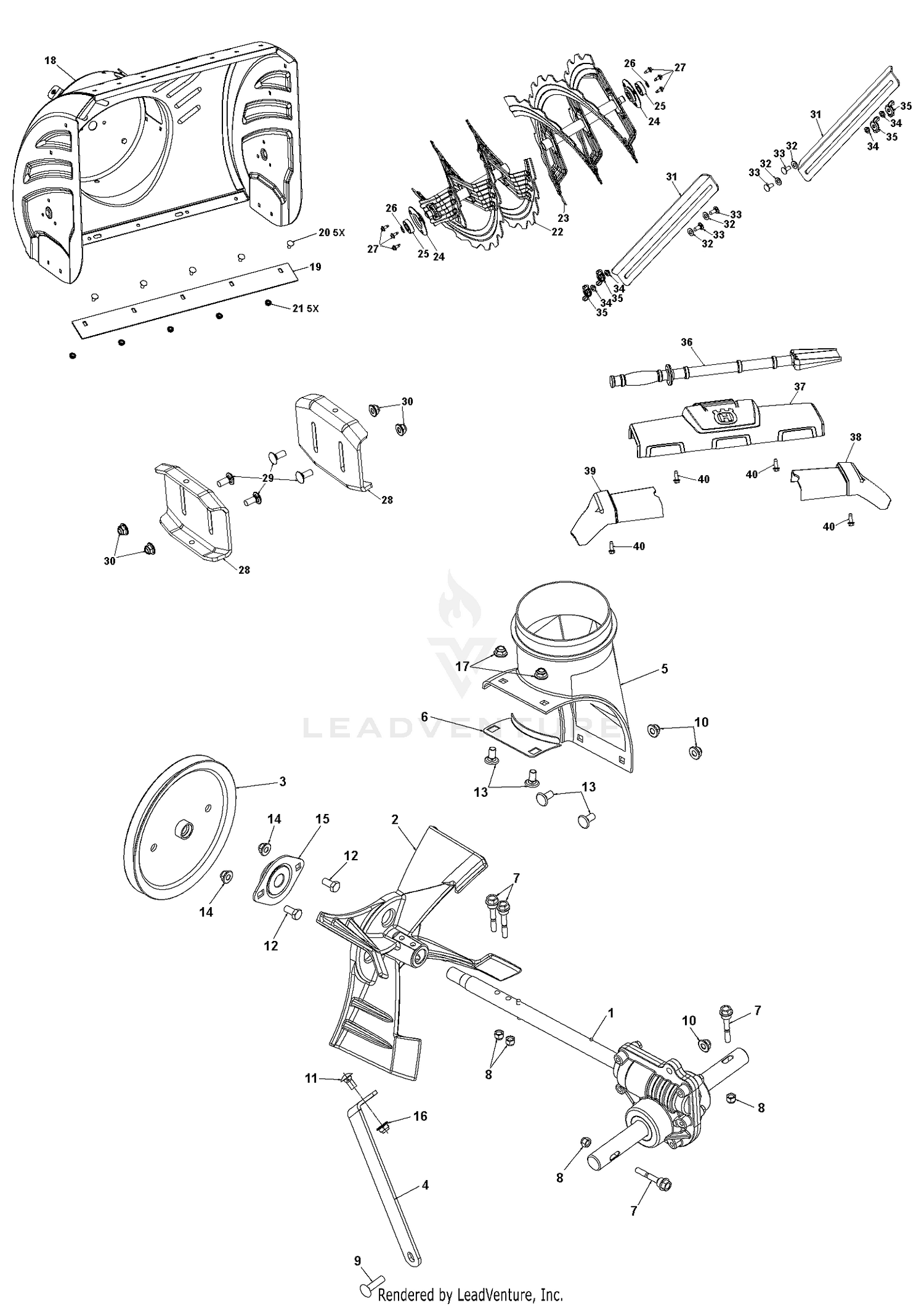

| Ref | Part Number | Description |
|---|
| 1 |
597371601 |
KIT.GEARBOX.CAST.DD.SHAFT This part replaces 586715001. Price: $279.99 |
| 2 |
585198303 |
IMPELLER CAST.IRON.12IN MS 417 Price: $119.99 |
| 3 |
586715401 |
PULLEY SCREW ON 7.9 Price: $29.99 |
| 4 |
585109004 |
SUPPORT.GEARBOX.LS.498 Price: $6.99 |
| 5 |
585056901 |
CHUTE.DISCHARGE.BASE Price: $9.99 |
| 6 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 7 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR This part replaces 588077501. Price: $1.00 |
| 8 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 9 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 11 |
585832001 |
BOLT CAR BLK 5/16-18 X 5/8 Price: $3.99 |
| 12 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 13 |
585691201 |
BOLT CARR WAFER BLK 5_16-18 X Price: $3.99 |
| 14 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 532427942. Price: $5.99 |
| 15 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 17 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 18 |
581708377 |
KIT.AUGER.HOUSING.581976802 Price: $329.99 |
| 19 |
585048402 |
PLATE.SHAVE.27.LS.SNOW.BLACK Price: $27.99 |
| 20 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 21 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 24 |
580855501 |
SUPPORT.BEARING.SINGLE.STAGE.B Price: $4.99 |
| 25 |
532110485 |
BEARING This part replaces 532437622. Price: $11.99 |
| 26 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 27 |
585517801 |
HEX.WASHER.HEAD 1/4-20 X .65 Price: $2.99 |
| 31 |
532435832 |
BAR.DRIFT.CUTTER.BLACK This part replaces 532184747. Price: $19.99 |
| 32 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 33 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
532128638 |
NUT WING PM Price: $3.99 |
| 36 |
532192199 |
CLEAN OUT TOOL Price: $14.99 |
| 37 |
586414802 |
TRIM AUGER FRONT TRIM ASSEMBLY This part replaces 586414801. Price: $79.99 |
| 38 |
586330302 |
TRIM AUGER.HOUSING.WING.RH MS Price: $24.99 |
| 39 |
586330402 |
TRIM AUGER.HOUSING.WING.LH MS Price: $24.99 |
| 40 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
