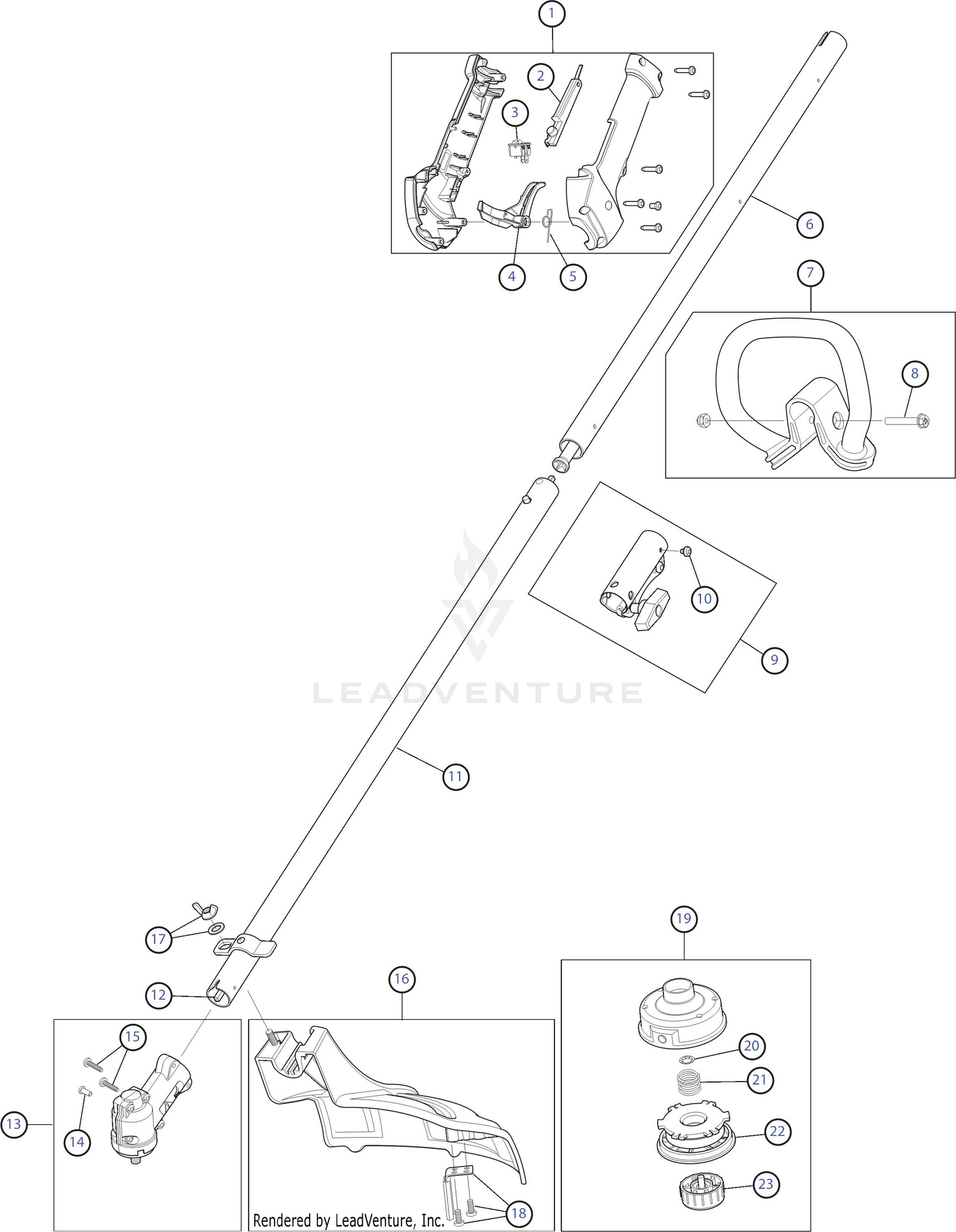

| Ref | Part Number | Description |
|---|
| 1 |
753-08344 |
Throttle Housing Assembly (Incl. 2 - 5) Price: $26.74 |
| 2 |
731-08433C-10 |
Throttle Trigger Lock-Out This part replaces 731-08433A-10. Price: $2.72 |
| 3 |
791-182405 |
Throttle Switch Assembly Price: $9.29 |
| 4 |
731-04970B-10 |
Throttle Trigger Price: $8.16 |
| 5 |
753-05007 |
TRIGGER SPRING Price: $4.42 |
| 6 |
753-06880 |
Upper Shaft Housing Assembly Price: $17.42 |
| 7 |
753-08042 |
D-Handle (Incl. 8) Price: $4.35 |
| 8 |
753-06040 |
D-Handle Bolt Price: $6.01 |
| 9 |
753-1190 |
Split Boom Coupler (Incl. 10) Price: $20.56 |
| 10 |
791-182057 |
Coupler Anti-Rotation Screw Price: $3.93 |
| 11 |
753-08356 |
Lower Shaft Housing Assembly Price: $21.68 |
| 12 |
753-05267 |
LOWER DRIVE SHAFT Price: $37.46 |
| 13 |
753-08180 |
Gearbox Assembly (Incl. 14 & 15) Price: $40.11 |
| 14 |
791-182519 |
Gearbox Anti-Rotation Screw Price: $4.37 |
| 15 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 16 |
753-08354 |
Shield Assembly (Incl. 17 & 18) Price: $14.86 |
| 17 |
753-04282 |
Shield Mounting Hardware Price: $23.73 |
| 18 |
753-08355 |
Blade Assembly Price: $3.61 |
| 19 |
753-08561 |
Outer Spool Assembly (Incl. 20 - 23) Price: $15.08 |
| 20 |
791-610660 |
Retainer Price: $4.29 |
| 21 |
791-610317B |
Spring Price: $9.47 |
| 22 |
753-08560 |
Inner Reel Price: $8.76 |
