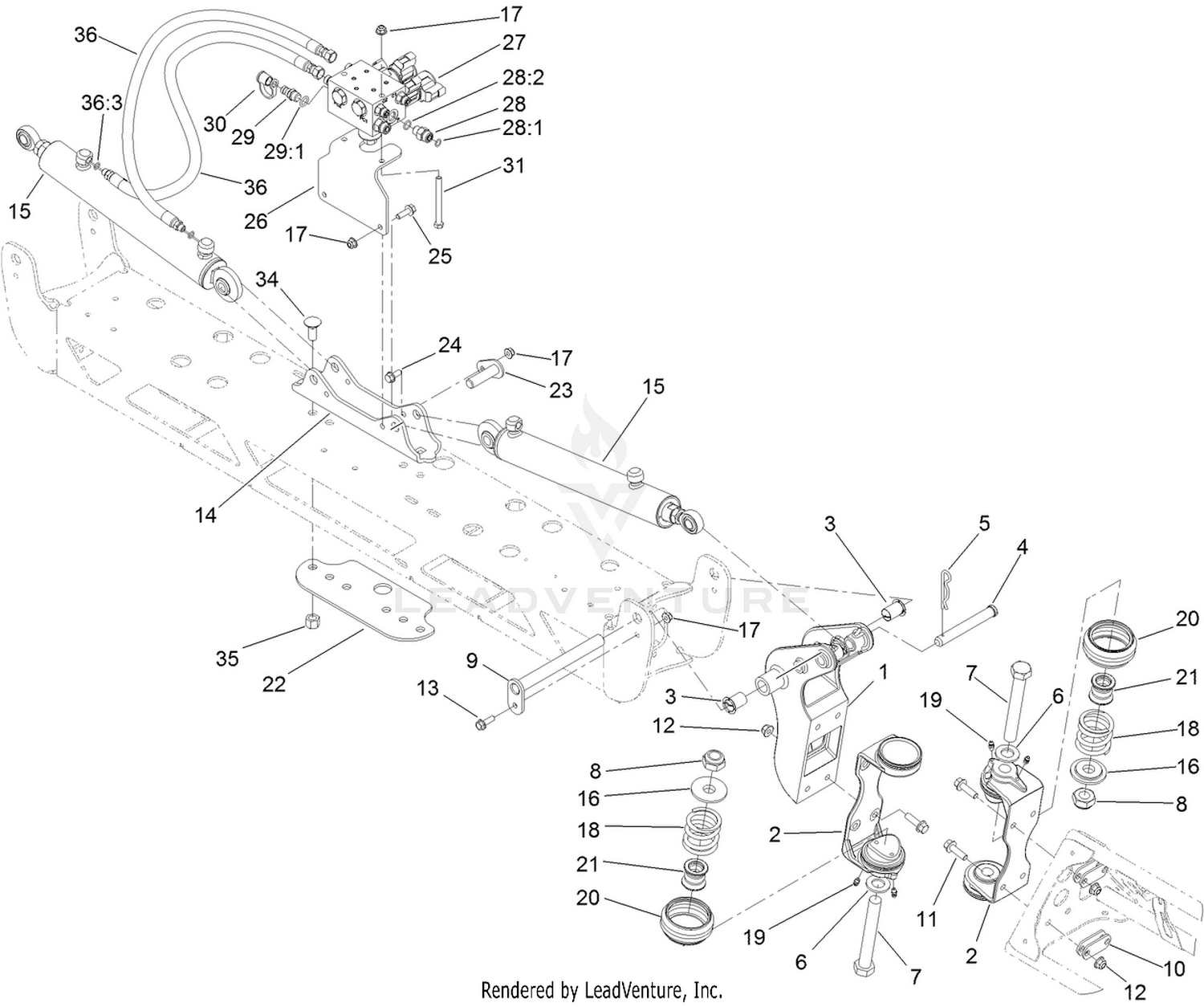

| Ref | Part Number | Description |
|---|
| 1 |
137-1673 |
BRACKET-PIVOT This part replaces 119-4993-03. Price: $270.35 |
| 2 |
137-1674 |
HINGE This part replaces 108-3471-03. Price: $86.08 |
| 3 |
100-8541 |
BUSHING-A ARM Price: $3.49 |
| 4 |
108-3436 |
PIN-CLEVIS Price: $44.88 |
| 5 |
3290-468 |
PIN-COTTER Price: $0.95 |
| 6 |
110-5054 |
WASHER-FLAT Price: $1.75 |
| 7 |
108-3738 |
SCREW-HH Price: $14.09 |
| 8 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 9 |
108-3419 |
PIVOT PIN ASM Price: $49.14 |
| 10 |
108-3605 |
PLATE-BACKING Price: $9.08 |
| 11 |
110-5050 |
SCREW-HHF Price: $2.59 |
| 12 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
108-3748 |
SCREW-HHF Price: $1.90 |
| 14 |
119-4856-03 |
PLATE-MOUNT, CYLINDERS Price: $67.32 |
| 15 |
117-0701 |
HYDRAULIC CYLINDER ASM Price: $984.97 |
| 16 |
108-3444 |
RETAINER-SPRING Price: $23.03 |
| 17 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 18 |
108-3440 |
SPRING-BREAKAWAY, BOOM Price: $20.19 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
108-3459 |
BOOT-HINGE Price: $16.67 |
| 21 |
120-8541 |
DAMPENER-HINGE Price: $15.09 |
| 22 |
108-3469-03 |
PLATE-WASHER Price: $35.72 |
| 23 |
112-7884 |
PIN-PIVOT Price: $20.16 |
| 24 |
110-5053 |
SCREW-HHF Price: $0.88 |
| 25 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 26 |
117-0711-03 |
PLATE-MOUNT, BOOM VALVE Price: $40.62 |
| 27 |
136-2400 |
ON-OFF BOOM LIFT VALVE ASM This part replaces 117-0702. Price: $1,383.95 |
| 28 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 29 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 30 |
354-79 |
CAP-DUST Price: $7.81 |
| 31 |
322-14 |
SCREW-HH Price: $1.01 |
| 34 |
110-5067 |
SCREW-CARR Price: $2.17 |
| 35 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 36 |
119-4859 |
HOSE ASM Price: $65.75 |
