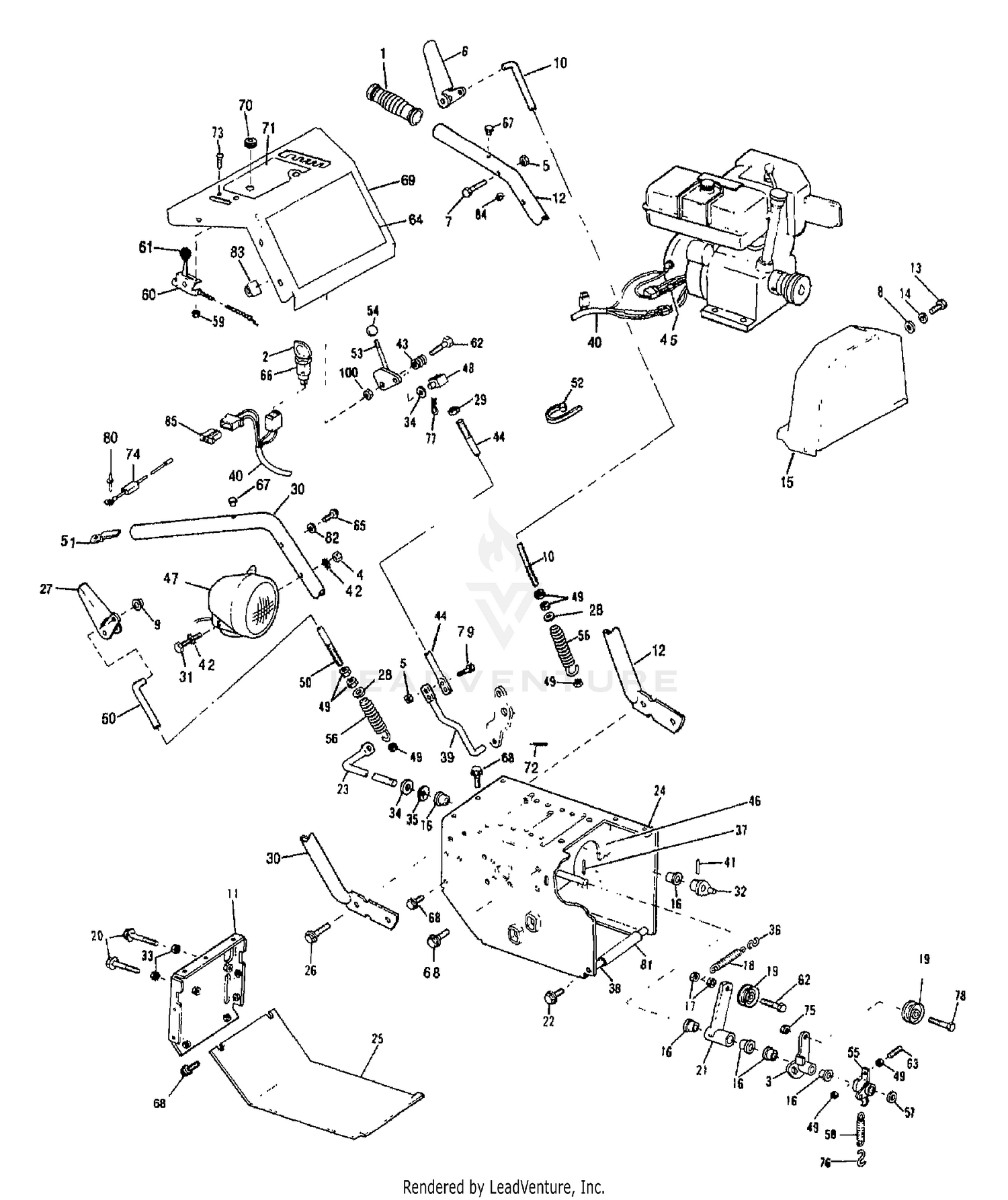

| Ref | Part Number | Description |
|---|
| 1 |
720-04083 |
Handlebars Grip This part replaces 1745576. Price: $12.95 |
| 2 |
1727326 |
KEY Not Available Price: |
| 3 |
1739937 |
IDLER ARM Not Available Price: |
| 4 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 5 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93 |
| 6 |
1745673010 |
LEVER-CONTROL Not Available Price: |
| 9 |
726-0106 |
PUSH NUT This part replaces 1728072. Price: $3.37 |
| 10 |
1758132 |
ROD-WHEEL Not Available Price: |
| 11 |
1757828GAR |
PLATE-BACK Price: Call Us |
| 12 |
1757511GAR |
HANDLEBAR-LH Price: Call Us |
| 15 |
1757792GAR |
BELT COVER Price: Call Us |
| 16 |
1715716 |
BUSHING-.5X.21 NYLON FLNG Not Available Price: |
| 17 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1185506. Price: $4.02 |
| 18 |
1740011 |
EXTENSION SPRING Not Available Price: |
| 19 |
1729440 |
PULLEY-IDL Not Available Price: |
| 21 |
1739935 |
IDLER ARM Not Available Price: |
| 22 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 25 |
1739838GAR |
COVER-BOTT Not Available Price: |
| 27 |
1745672001 |
HANDLE-CONTROL (LH) Not Available This part replaces 1745672010. Price: |
| 30 |
1757510GAR |
HANDLEBAR-RH Price: Call Us |
| 34 |
GW-20546 |
WASHER Not Available This part replaces 1890234. Price: |
| 36 |
1740989 |
HOOK-J Not Available Price: |
| 38 |
1739756 |
CROSSMEMBE Not Available Price: |
| 39 |
1752107 |
CONTROL ROD LOWER Not Available Price: |
| 40 |
1748837 |
HARNESS Price: Call Us |
| 43 |
1713167 |
COMPRESSION SPRING Not Available Price: |
| 44 |
1758134 |
ROD-SPEED CONTROL Price: Call Us |
| 45 |
1721038 |
CONNECTOR Not Available Price: |
| 47 |
1757879 |
ASSM-LIGHT Price: Call Us |
| 48 |
1727053 |
BLOCK-SWIVEL Not Available Price: |
| 50 |
1758133 |
ROD-AUGER CLUTCH Price: Call Us |
| 51 |
1746516 |
CLAMP Not Available Price: |
| 53 |
1739715 |
LEVER-SPEE Not Available Price: |
| 54 |
1715817 |
KNOB Not Available Price: |
| 55 |
1739941 |
ASSM-BRAKE Not Available Price: |
| 56 |
1739745 |
EXTENSION SPRING Not Available Price: |
| 58 |
1740990 |
EXTENSION SPRING Not Available Price: |
| 60 |
1734795 |
CABLE-THROTTLE BLNS SNOWTHR Price: Call Us |
| 61 |
731-0108 |
Knob, Throttle Control This part replaces 1737118. Price: $8.12 |
| 63 |
1741847 |
SCR SET-HXSKT 1/4-20X1.25 Price: Call Us |
| 64 |
1757853 |
DECAL-LOGO Not Available Price: |
| 66 |
925-0873 |
KEY SWITCH Not Available This part replaces 1727321. Price: |
| 67 |
1750796 |
BUMPER-RUB Not Available Price: |
| 68 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 1724491. Price: $3.34 |
| 69 |
1757507GAR |
ASSM-CONSOLE Price: Call Us |
| 70 |
1185585 |
GROMMET-FLIP Not Available Price: |
| 71 |
1757850 |
DECAL-INST Price: Call Us |
| 72 |
914-0507 |
Cotter Pin, 3/32 x .75 This part replaces 1100346. Price: $3.93 |
| 74 |
1746515 |
ASSEMBLY RESISTOR Not Available Price: |
| 76 |
1742250 |
HOOK-S Price: Call Us |
| 77 |
714-0145 |
Click Pin This part replaces 1703011. Price: $4.42 |
| 79 |
710-3015 |
Hex Cap Screw, 1/4-20 x .75 This part replaces 1100805. Price: $3.65 |
| 80 |
1186424 |
RIVET-POP .125 Price: Call Us |
| 81 |
1746607 |
TUBE-PLAST Not Available Price: |
| 83 |
1724879 |
CLIP-CORD Not Available Price: |
| 84 |
1748835 |
BUSHING Not Available Price: |
| 85 |
1748836 |
CONNECTOR Price: Call Us |
