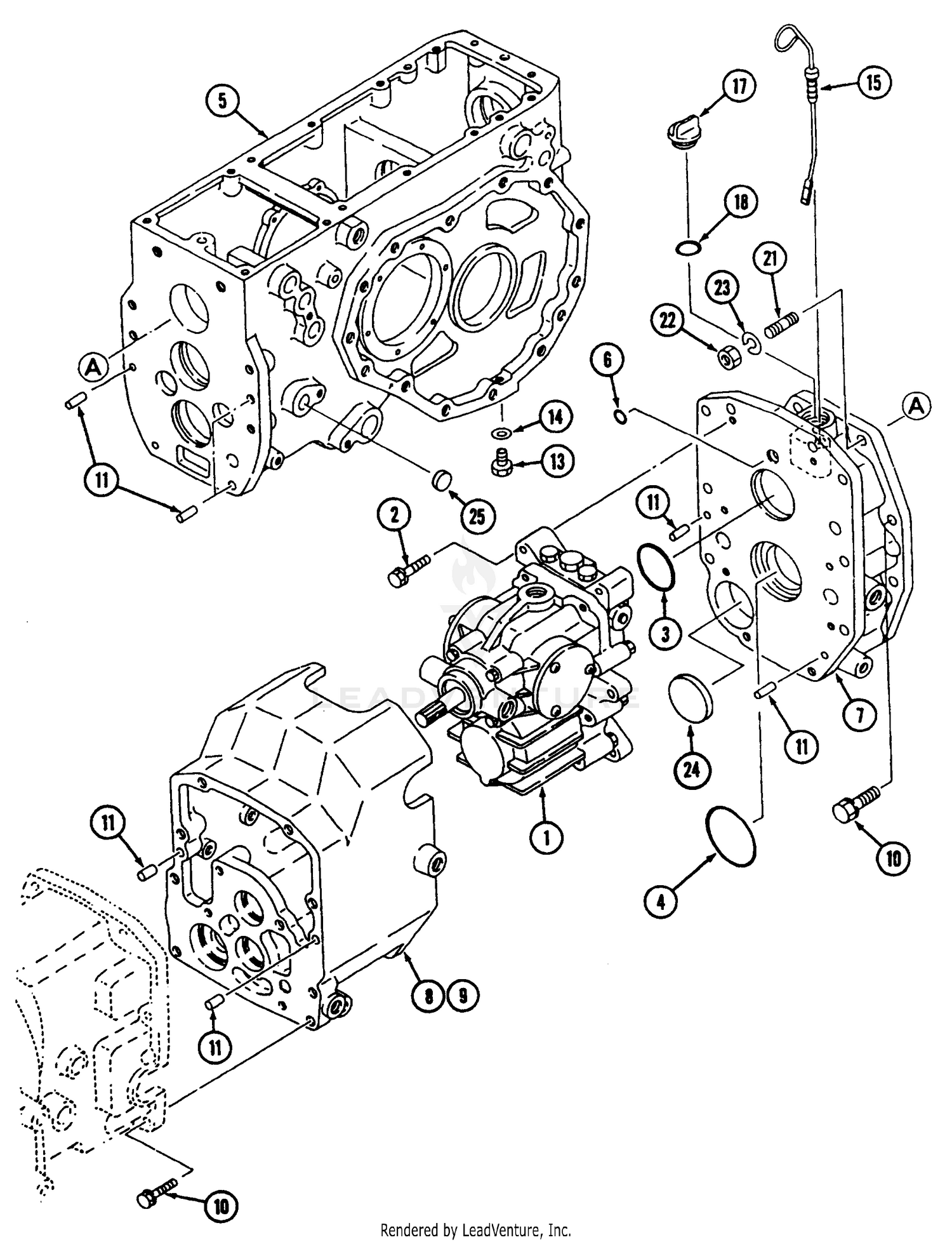

Hydrostatic MFD
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 60-6190 | O-RING Price: $3.76 |
| 1 | MA-19641301000 | HST UNIT Not Available Price: |
| 2 | 95-6050 | PIN-DOWEL Price: $2.59 |
| 2 | MA-F1550110055 | BOLT,W/SPRING WASH Not Available Price: |
| 3 | 60-6250 | WASHER Price: $9.70 |
| 3 | MA-08300500560 | O-RING Not Available Price: |
| 4 | 76-7010 | RING-RETAINING This part replaces 60-6260. Price: $3.66 |
| 4 | MA-08300200700 | O-RING Not Available Price: |
| 5 | 60-6270 | RING Price: $2.40 |
| 5 | MA-19641211AG2 | CASE-TRANSMISSION Not Available Price: |
| 6 | 60-6330 | SCREW Price: $6.91 |
| 6 | MA-08301100140 | O-RING Not Available Price: |
| 7 | MA-19641302AG0 | CASE,CENTER Not Available Price: |
| 8 | MA-19641303AG1 | CASE, HST Not Available Price: |
| 10 | 60-6120 | COVER-SEAL Price: $17.87 |
| 10 | MA-F1540112035 | BOLT,W/SPRING WASH Not Available Price: |
| 11 | 60-6010 | COVER-TRUNNION Price: $11.26 |
| 11 | MA-05401010020 | PIN Not Available Price: |
| 12 | 99-8702 | O-RING COVER Price: $64.56 |
| 13 | 60-5990 | RACE Price: $51.48 |
| 13 | MA-F5000-16000 | PLUG Not Available Price: |
| 14 | 60-6110 | BEARING Price: $47.19 |
| 14 | MA-08331001601 | SEAL WASHER Not Available This part replaces MA-08331001600. Price: |
| 15 | 60-6130 | GASKET Price: $19.03 |
| 15 | MA-19641319000 | GAGE OIL Not Available Price: |
| 16 | 76-6950 | RACE-THRUST This part replaces 60-6160. Price: $25.65 |
| 17 | 76-6960 | BEARING-THRUST This part replaces 60-6170. Price: $23.23 |
| 17 | MA-67472-10601 | PLUG OILING Not Available Price: |
| 18 | 60-6230 | SCREW-HH Price: $4.80 |
| 18 | MA-08300100280 | O-RING Not Available Price: |
| 19 | 60-6220 | SCREW-HH Price: $5.33 |
| 20 | 105-3331 | SEAL-SHAFT This part replaces 60-6300. Price: $35.63 |
| 21 | 104-4861 | SEAL-SHAFT This part replaces 42-2720. Price: $28.44 |
| 21 | MA-A0620112032 | BOLT,STUD Not Available Price: |
| 22 | 68-6460 | RELIEF VALVE KIT Price: $545.19 |
| 22 | MA-A3010112002 | NUT Not Available Price: |
| 23 | 99-8703 | HOUSING ASM Price: $819.08 |
| 23 | MA-A3600101202 | SPRING,WASHER Not Available Price: |
| 25 | 99-8705 | BACKPLATE ASM Price: $1,560.57 |
| 26 | 99-8704 | PLATE-VALVE Price: $457.47 |
| 27 | 60-6140 | SHAFT Price: $420.62 |
| 28 | 60-6020 | CAMPLATE Price: $784.96 |
| 29 | 60-6200 | ADAPTER Price: $537.89 |
| 30 | 99-8706 | GEROTOR-INNER Price: $153.64 |
| 31 | 107-4445 | DISCONTINUED This part replaces 99-8707. Price: $568.49 |
| 32 | 60-6280 | PLUG Price: $24.83 |
| 34 | 60-6320 | KEY Price: $5.45 |
| 35 | 99-8708 | O-RING Price: $21.71 |
| 36 | 60-6240 | WASHER Price: $15.20 |
| 37 | 60-6310 | KEY Price: $8.97 |
| 38 | 3256-73 | WASHER-FLAT Price: $1.31 |
| 39 | 95-6056 | SEAL KIT Price: $111.09 |
| 503443201 | 591375401 | KIT FUEL FILTER This part replaces 503443201. Price: $8.99 |
| 503735801 | 503735801 | FUEL TANK BUSHING Price: $5.99 |
| 503911802 | 590324802 | TANK CAP This part replaces 503911802. Price: $14.99 |
| 503936601 | 503936601 | AIR PURGE BUBBLE Price: $9.99 |
| 537042412 | 537042412 | HOSE Price: $4.99 |
| 537052301 | 537052301 | HOSE Price: $6.99 |
| 537184901 | 537184901 | O-RING Price: $3.99 |
| 544328801 | 544328801 | TANK ASSY Price: $17.99 |
