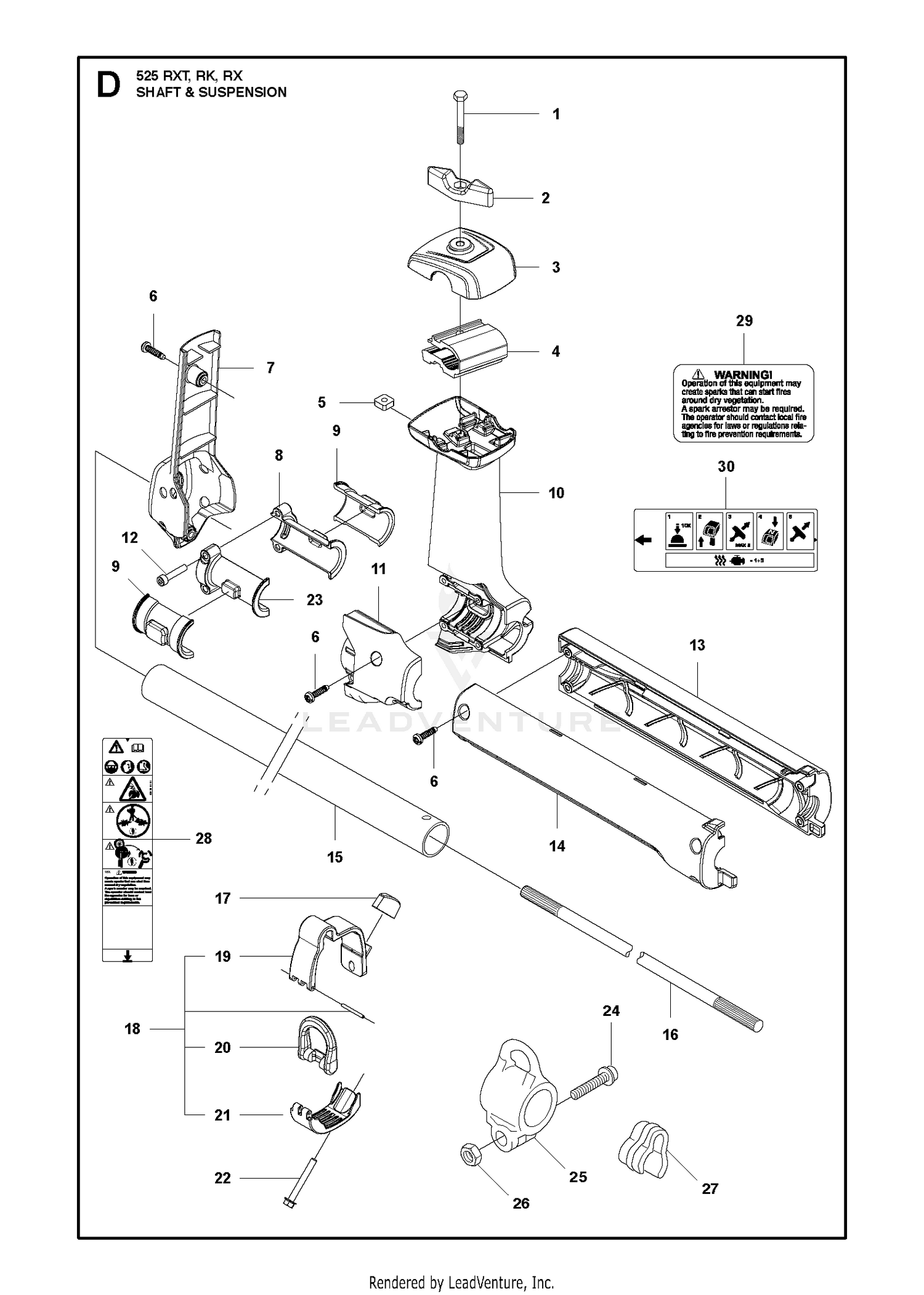

SHAFT & HANDLE
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33115-030 | SCREW-HH Price: $0.68 |
| 2 | 100-5363-03 | INDICATOR-DEPTH, LH Price: $122.46 |
| 2 | 502203801 | HANDLE Price: $5.99 |
| 3 | 100-5364-03 | INDICATOR-DEPTH, RH Price: $122.46 |
| 3 | 577558201 | CAP TOWER Price: $5.99 |
| 4 | 100-5371 | KNOB-CASTOR Price: $54.42 |
| 4 | 544020901 | CLAMP Price: $12.99 |
| 5 | 100-7555-03 | PLATE-SCRAPER Price: $198.23 |
| 5 | 502197101 | NUT Price: $0.25 |
| 6 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 6 | 525764604 | SCREW ITXSCT MT5X20 T27 12.9 Price: $2.99 |
| 7 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 7 | 577558101 | COVER TOWER Price: $7.99 |
| 8 | 33095-00 | WASHER-FLAT Price: $0.25 |
| 8 | 578139001 | BRACKET (A) Price: $5.99 |
| 9 | 100-7553-03 | ROLLER ASM Price: $2,491.70 |
| 10 | 33115-045 | SCREW-HH Price: $0.61 |
| 10 | 578247701 | HANDLE BAR BRACKET COMP Price: $17.99 |
| 11 | 33116-025 | SCREW-HH Price: $0.78 |
| 11 | 577558001 | COVER HANDLEBAR BRACKET Price: $6.99 |
| 12 | 43-5940 | WASHER-LOCK, SPRING Price: $0.70 |
| 12 | 525825001 | SCREW Price: $2.99 |
| 13 | 33096-00 | WASHER-FLAT Price: $1.76 |
| 13 | 577557501 | WEAR PROTECTION RIGHT Price: $12.99 |
| 14 | 577557601 | WEAR PROTECTION LEFT Price: $11.99 |
| 23 | 578139101 | BRACKET (B) Price: $5.99 |
| 28 | 589295101 | LABEL WARNING TRIMMERS AND BRU Price: $8.99 |
| 29 | 522928602 | DECAL SPARK ARRESTOR WARNING Price: $2.99 |
| 30 | 579562301 | DECAL START REMINDER 523/525 Price: $2.99 |
