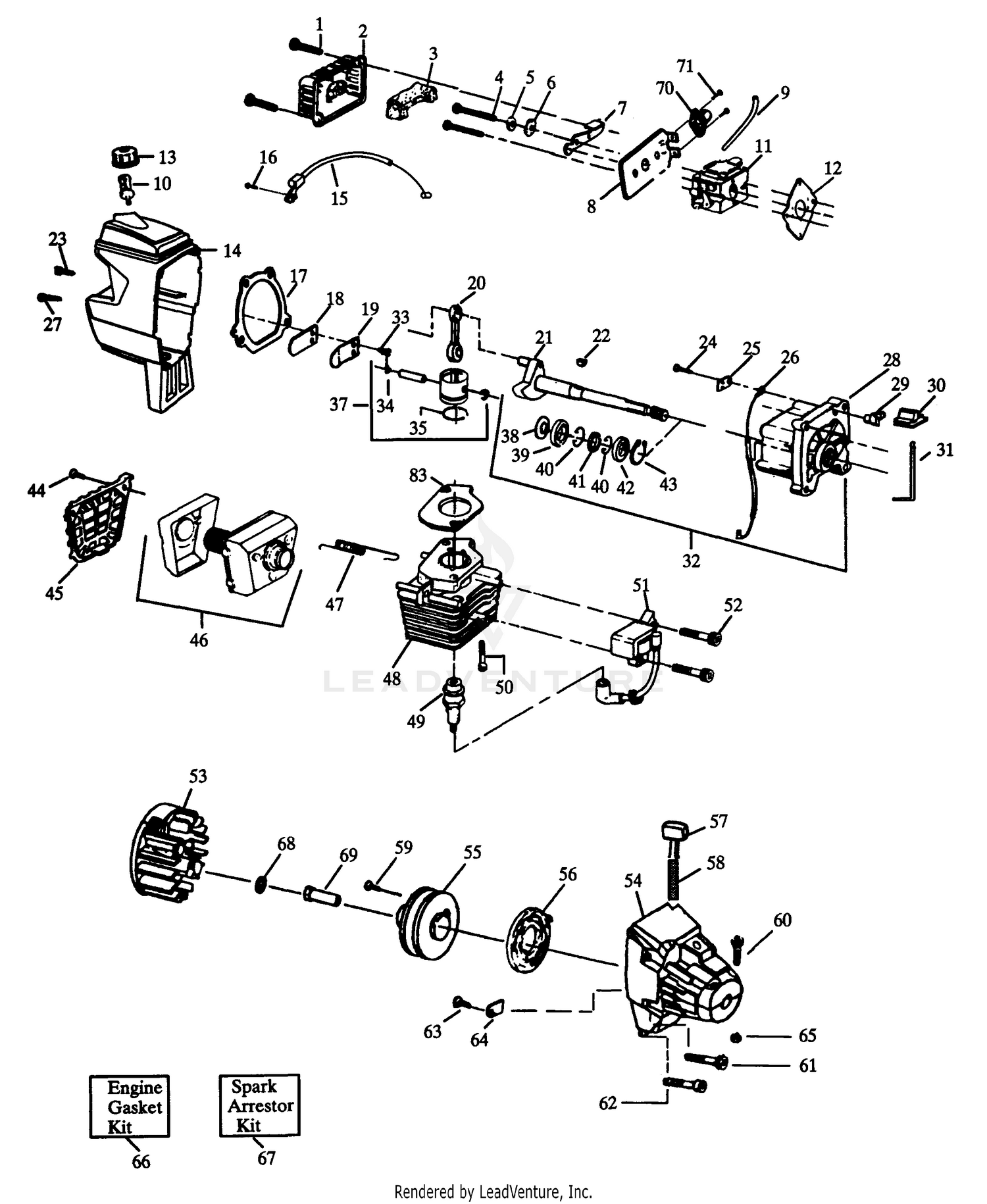

Engine Assembly
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015773 | Screw Price: $1.99 |
| 2 | 530027529 | Air Filter Cover Price: $3.42 |
| 3 | 530027530 | Air Filter Price: $1.99 |
| 4 | 530015849 | Screw Price: $1.99 |
| 5 | 530015852 | Spacer Price: $1.99 |
| 6 | 530015254 | Wave Washer Price: $1.99 |
| 8 | 530027527 | Air Filter Plate Type I Price: $2.99 |
| 9 | 530069247 | Fuel Line Kit Fuel Line Price: $3.99 |
| 10 | 530095646 | Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 12 | 530019156 | Carburetor Gasket Price: $3.99 |
| 13 | 530014347 | Fuel Cap Ass'y. Price: $4.99 |
| 14 | 530027982 | Shroud & Tank Ass'y. Type I Price: $15.84 |
| 14 | X-426-3 | Clamp-Hose Price: Call Us |
| 15 | 220368 | Stud-Valve Cover Price: Call Us |
| 15 | 530027955 | Throttle Cable Ass'y. Type I Price: $3.33 |
| 16 | 270034 | Gasket-Valve Cover Price: Call Us |
| 16 | 530015775 | Screw Price: $1.99 |
| 17 | 270036 | Cover-Valve Price: Call Us |
| 17 | 530019154 | Crankcase/Shroud Gasket Price: $1.99 |
| 18 | 530027593 | Reed Price: $1.99 |
| 19 | 530027594 | Reed Stop Price: $1.99 |
| 21 | 530010945 | Crankshaft Ass'y. Price: $49.19 |
| 22 | 530015126 | Flywheel Key Price: $1.99 |
| 23 | 530015772 | Screw Price: $1.99 |
| 24 | 530015780 | Screw Price: $1.99 |
| 25 | 530027546 | Switch Insulator Price: $2.99 |
| 26 | 530027547 | Lead Wire Price: $1.99 |
| 27 | 530015771 | Screw Price: $1.99 |
| 29 | 530027545 | Switch Ramp Price: $1.99 |
| 30 | 530038309 | Switch Button This part replaces 530027958. Price: $1.99 |
| 31 | 530027959 | Switch Spring Price: $1.99 |
| 33 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 34 | 530015162 | Piston Pin Retainer Price: $1.99 |
| 35 | 530025875 | Piston Ring Price: $4.99 |
| 36 | 530019267 | GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $2.99 |
| 38 | 530015788 | Spacer Price: $0.99 |
| 39 | 530032103 | Inner Bearing Price: Call Us |
| 40 | 530015787 | Retaining Ring Price: $1.99 |
| 41 | 530019158 | Crankshaft Seal Price: $2.99 |
| 42 | 530032102 | Outer Bearing Price: $8.99 |
| 43 | 530015789 | Crankshaft Retaining Ring Price: $2.99 |
| 44 | 530015717 | Screw Price: $1.99 |
| 45 | 530027781 | Muffler Guard Price: $1.99 |
| 46 | 530069310 | Muffler Kit This part replaces 530069257. Price: $9.99 |
| 47 | 530036409 | Muffler Attachment Spring Price: $1.99 |
| 48 | 530012235 | Cylinder Price: $3.33 |
| 49 | 530030077 | Spark Plug Price: $2.27 |
| 50 | 530001624 | Screw Price: $1.99 |
| 51 | 530039134 | Ignition Module Kit Price: $44.99 |
| 52 | 530015816 | Screw This part replaces 530015128. Price: $1.99 |
| 53 | 530047198 | Flywheel Ass'y This part replaces 530039111. Price: $23.99 |
| 54 | 530014045 | Fan Housing Price: $15.99 |
| 55 | 530071387 | Kit-Starter Pulley This part replaces 530069291. Price: $6.99 |
| 56 | 545008010 | STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 57 | 530027569 | Starter Handle Price: $1.99 |
| 58 | 530069232 | Rope Kit Price: $3.99 |
| 60 | 530015767 | Screw Price: $1.99 |
| 61 | 530015770 | Screw Price: Call Us |
| 62 | 530015769 | Screw Price: $1.99 |
| 63 | 530015496 | Screw Price: $1.99 |
| 64 | 530027523 | Retainer Price: $2.99 |
| 65 | 530015768 | Locknut Price: $1.99 |
| 67 | 952701612 | Spark Arrestor Kit Price: Call Us |
| 68 | 530015828 | Washer Price: $1.99 |
| 69 | 530027953 | Drive Coupling Price: $1.99 |
