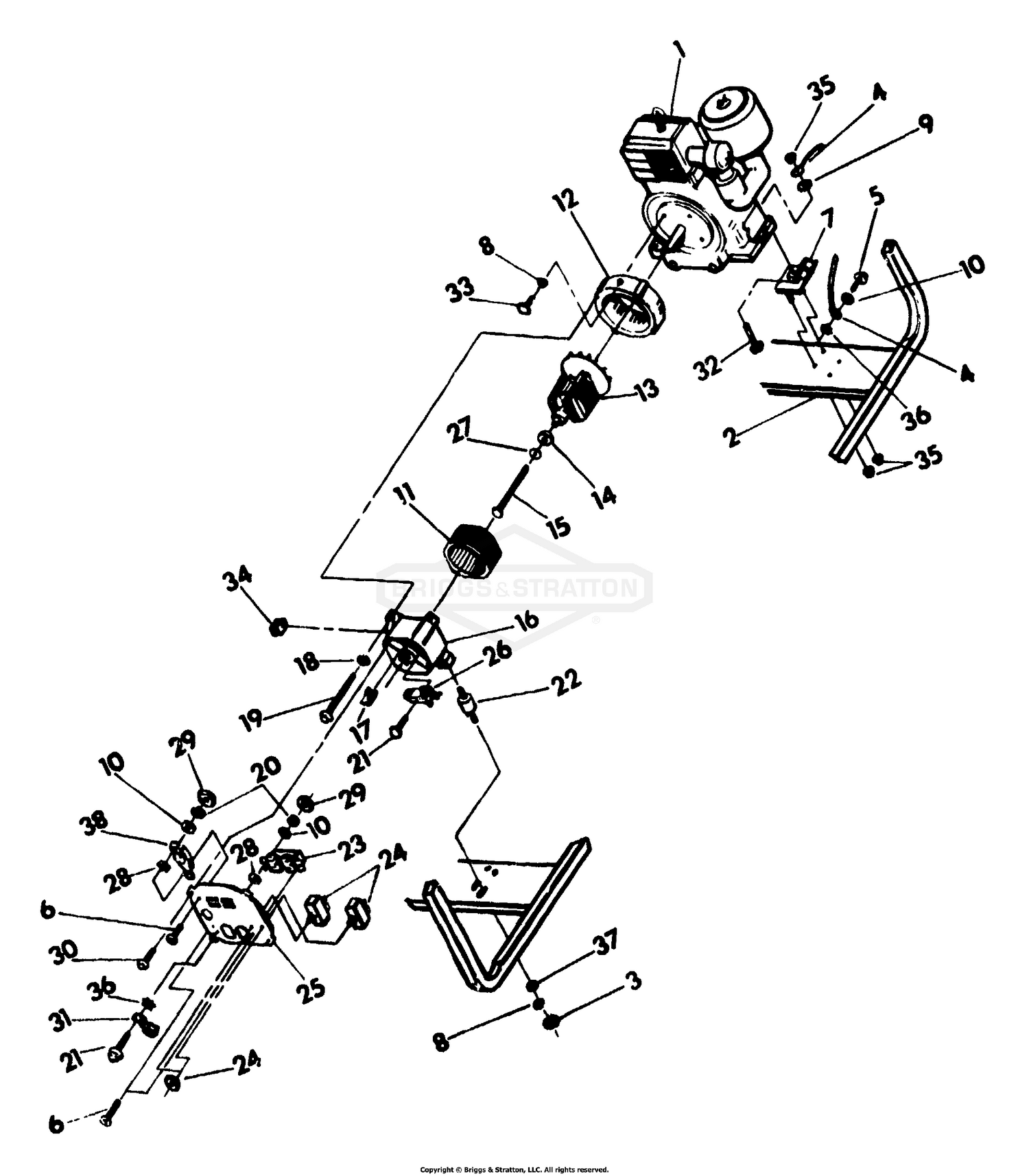

| Ref | Part Number | Description |
|---|
| 1 |
76516 |
Briggs & Stratton 8 H.P. Engine Price: Call Us |
| 2 |
75987 |
Cradle Assembly Price: Call Us |
| 3 |
25244GS |
NUT, 5/16-18 HEX This part replaces 25244. Price: $2.59 |
| 4 |
10953621 |
Ground Wire Price: Call Us |
| 5 |
24911GS |
TRILOBLAR, 8-32 x 3/8 This part replaces 24911. Price: $2.64 |
| 6 |
75475 |
M4-0.7 x 10mm Pan Head Machine Screw Price: $24.95 |
| 7 |
70642GS |
MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27 |
| 8 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 9 |
27482GS |
WASHER, 5/16" Ext. Shakeproof This part replaces 27482. Price: $2.19 |
| 10 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 11 |
72062 |
Stator Assembly Price: Call Us |
| 12 |
66365GGS |
HOUSING, Engine Adapter This part replaces 66365G. Price: Call Us |
| 13 |
81870 |
Rotor Assembly Price: Call Us |
| 14 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 16 |
66825A |
Rear Bearing Carrier Price: Call Us |
| 17 |
67107GS |
REGULATOR, VOLT This part replaces 67107. Price: $243.41 |
| 18 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 19 |
66449D |
M6-1.0 x 115mm Stator Bolt Price: Call Us |
| 20 |
22264 |
No. 8 Lock Washer Price: $8.99 |
| 21 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 22 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 23 |
68759GS |
OUTLET, 20A,120V This part replaces 68759. Price: $23.24 |
| 24 |
77247GS |
BRKR, CRCT, 20A, 2P This part replaces 77247. Price: $6.90 |
| 25 |
72098 |
Control Panel (sheet metal) Price: $26.25 |
| 26 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 27 |
67451 |
Flat Washer (special) Price: Call Us |
| 28 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 29 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 30 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 31 |
25433 |
Grounding Lug Price: Call Us |
| 32 |
76222GS |
PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15 |
| 34 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 35 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 36 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
