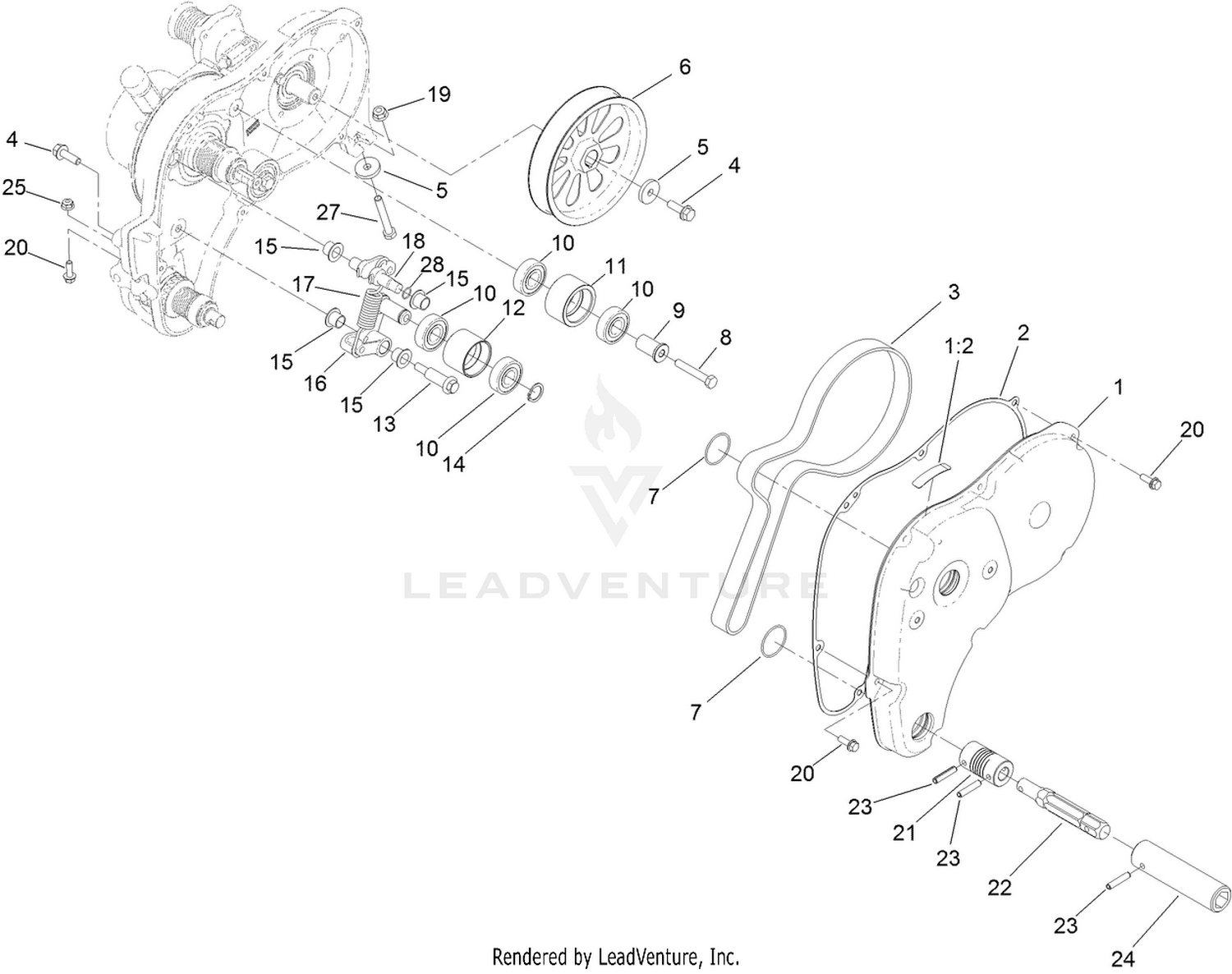

| Ref | Part Number | Description |
|---|
| 1 |
132-9589 |
TRANSMISSION COVER ASM Price: $179.58 |
| 2 |
115-7140 |
GASKET-HOUSING, MAIN Price: $6.00 |
| 3 |
115-6743 |
BELT-DRIVE, MAIN Price: $26.00 |
| 4 |
115-5142 |
SCREW-HHF Price: $0.82 |
| 5 |
115-7292 |
WASHER-HARDENED Price: $2.31 |
| 6 |
115-7285 |
PULLEY-DRIVEN Price: $89.55 |
| 7 |
107-9455 |
O-RING Price: $3.59 |
| 8 |
120-9686 |
SCREW-HH Price: $0.95 |
| 9 |
115-7129 |
BUSHING-PULLEY, IDLER Price: $71.66 |
| 10 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 11 |
115-6873 |
PULLEY-IDLER Price: $32.67 |
| 12 |
115-7133 |
PULLEY-IDLER Price: $35.19 |
| 13 |
127-1509 |
SCREW-SHOULDER Price: $4.55 |
| 14 |
32151-12 |
RING-RETAINING Price: $1.36 |
| 15 |
125-5239 |
BUSHING-FLANGE Price: $4.21 |
| 16 |
115-6847 |
IDLER-DRIVE, MAIN Price: $65.43 |
| 17 |
133-8757 |
SPRING-EXTENSION Price: $10.24 |
| 18 |
115-7128 |
LEVER-SPRING Price: $37.54 |
| 19 |
119-4041 |
NUT-HF Price: $0.48 |
| 20 |
119-1138 |
SCREW-HWH Price: $0.64 |
| 21 |
133-2341 |
COUPLING-HELICAL Price: $267.48 |
| 22 |
131-3167 |
SHAFT-HEX Price: $47.72 |
| 23 |
125-3542 |
PIN-SPRING Price: $1.13 |
| 24 |
110-2390 |
TUBE-HEX Price: $83.11 |
| 25 |
119-4040 |
NUT-FLANGE, NI Price: $0.52 |
| 27 |
120-9738 |
SCREW-HH Price: $0.84 |
