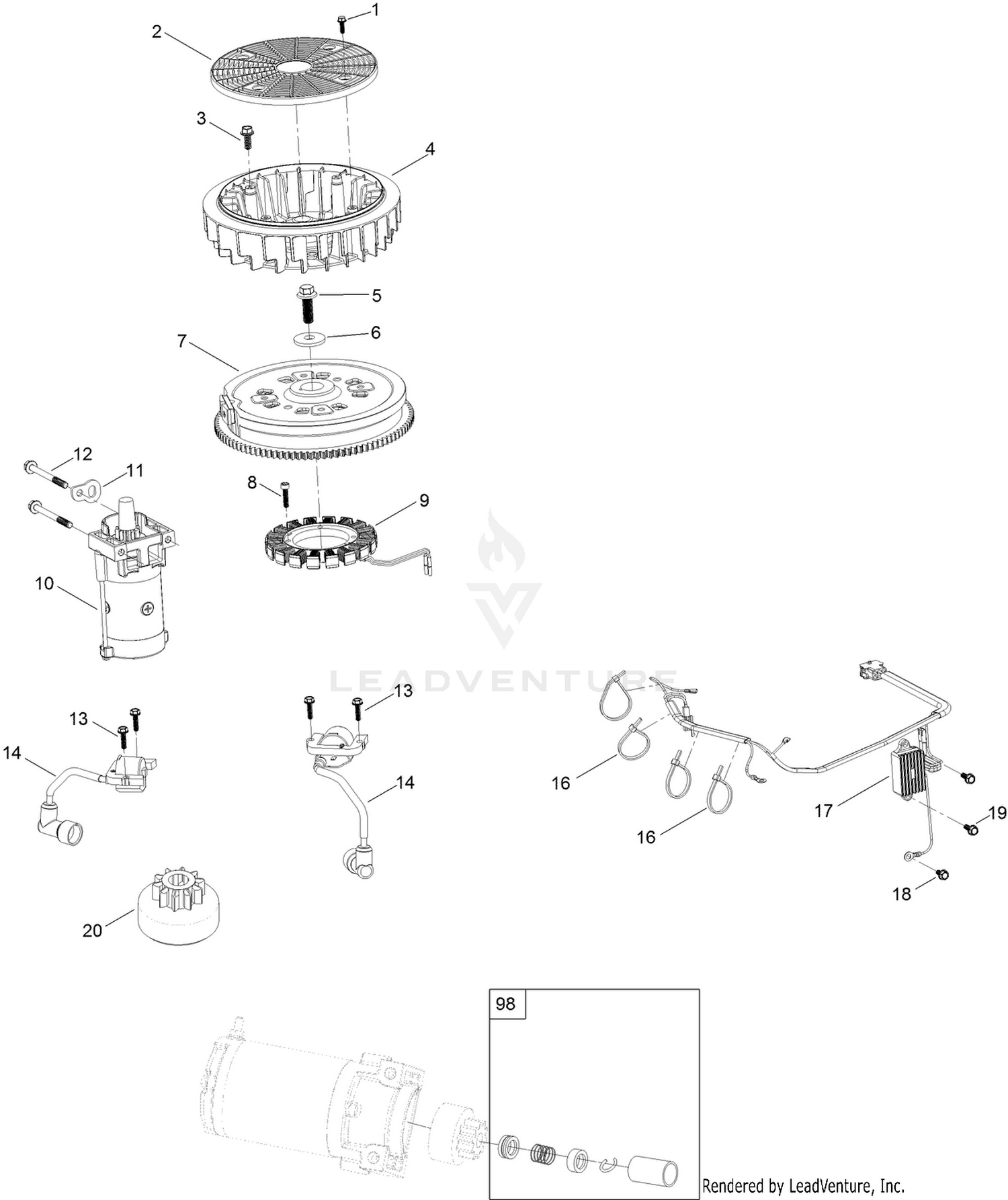

| Ref | Part Number | Description |
|---|
| 1 |
127-9197 |
SCREW-HWH Price: $0.78 |
| 2 |
127-9198 |
SCREEN-ROTATING Price: $15.98 |
| 3 |
127-9199 |
SCREW-HWH Price: $0.78 |
| 4 |
127-9200 |
FAN-COOLING Price: $36.01 |
| 5 |
127-9201 |
SCREW-HWH Price: $2.08 |
| 6 |
127-9202 |
WASHER-SPRING Price: $1.02 |
| 7 |
127-9306 |
FLYWHEEL Price: $153.46 |
| 8 |
127-9210 |
SCREW-HSH Price: $0.90 |
| 9 |
136-7876 |
ALTERNATOR This part replaces 127-9211. Price: $73.38 |
| 10 |
136-7880 |
MOTOR-STARTER This part replaces 133-9828. Price: $213.51 |
| 11 |
127-9208 |
BRACKET-LIFT Price: $1.99 |
| 12 |
120-4231 |
SCREW-HHF Price: $3.08 |
| 13 |
121-0007 |
BOLT-FLANGE Price: $0.38 |
| 14 |
139-0720 |
IGNITION COIL ASM This part replaces 127-9216. Price: $46.69 |
| 16 |
127-9220 |
TIE-ZIP Price: $0.80 |
| 17 |
136-7879 |
REGULATOR-VOLTAGE, W/HARNESS This part replaces 127-9219. Price: $46.51 |
| 18 |
120-4216 |
SCREW-HHF Price: $0.90 |
| 19 |
120-4232 |
SCREW-HHF Price: $0.90 |
| 20 |
133-1562 |
PINION-STARTER Price: $36.01 |
