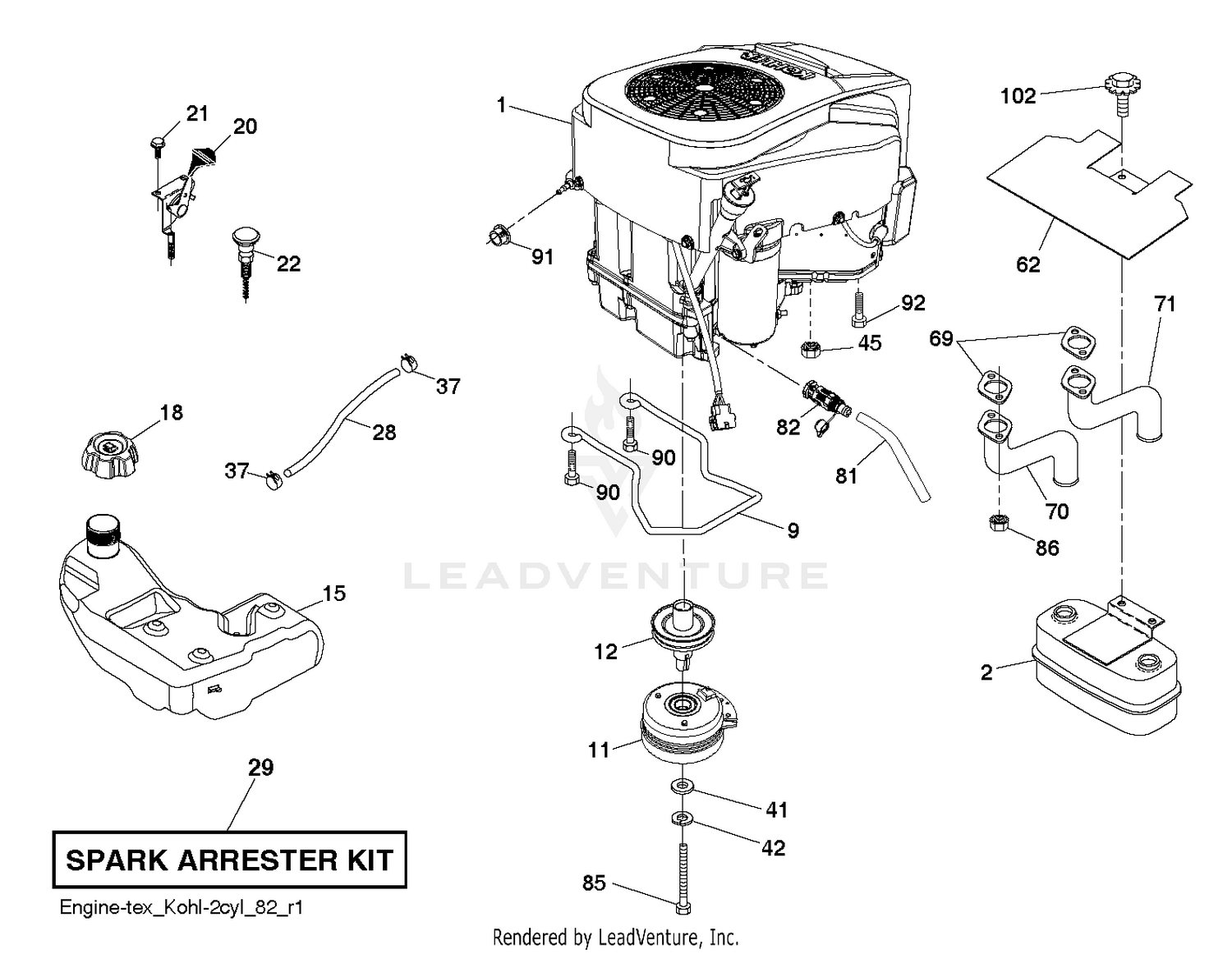

| Ref | Part Number | Description |
|---|
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 10 |
105-3741 |
SPRING-START Price: $3.78 |
| 11 |
587255001 |
CLUTCH. 5.0 PD. 2.5 OFFSET Price: $229.99 |
| 12 |
586899601 |
PULLEY.EXTENDED.SHAFT.GROUND Price: $29.99 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 20 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044860 |
HOSE.1/4".LOW.PERM.FUEL.LN.60" Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
115-4502 |
FORK LEVER ASM Price: $551.34 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
98-9692 |
ROLLER Price: $11.45 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
107-9083 |
LEVER-THRUST Price: $29.76 |
| 60 |
107-9084 |
LEVER-FORK Price: $101.37 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 65 |
108-2867 |
SPRING Price: $3.96 |
| 66 |
98-7580 |
BALL Price: $0.04 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
107-9085 |
SHAFT-LEVER, FORK Price: $24.90 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 Price: $19.99 |
| 71 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 Price: $17.99 |
| 80 |
107-9086 |
SHAFT-LEVER, FORK Price: $24.90 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606701 |
BOLT.HEX.7/16-20X5.GR5.GREEN Price: $7.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 90 |
98-9570 |
BEARING-MINIATURIZE Price: $13.60 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 100 |
115-4122 |
COVER-SHAFT, FORK LEVER Price: $6.97 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 110 |
98-9682 |
GASKET Price: $0.95 |
| 120 |
98-9350 |
BOLT Price: $0.98 |
| 130 |
98-9567 |
COLLAR Price: $3.78 |
