| Ref | Part Number | Description |
|---|
| 1 |
110-9770 |
UPPER ROPS ASM Price: $548.65 |
| 1 |

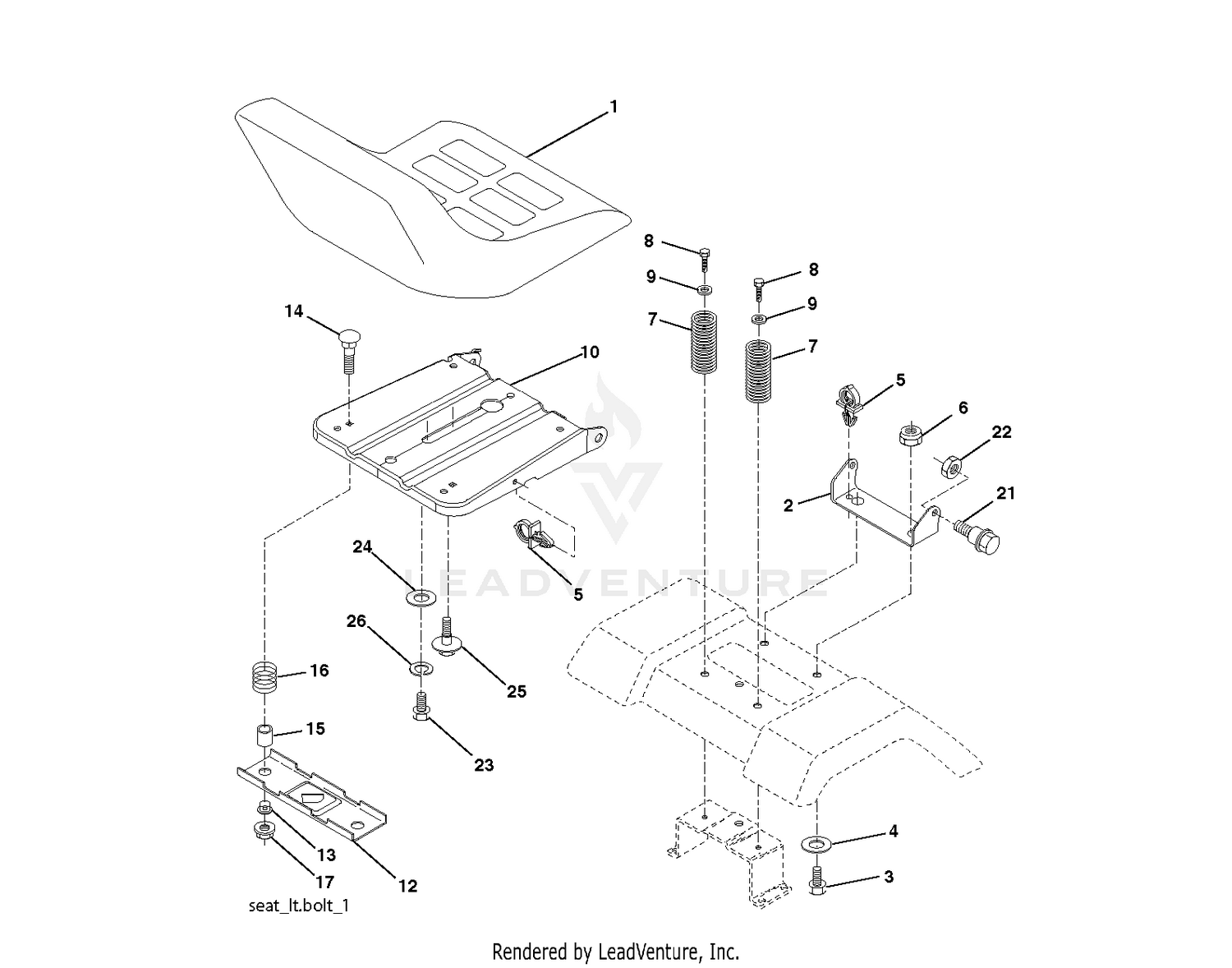

532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG Price: $142.99 |
| 2 |
110-5696 |
SPRING-LEAF Price: $43.16 |
| 2 |
532140551 |
SEAT PIVOT BRKT Price: $3.99 |
| 3 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 3 |
871110616 |
Bolt Fin Hex 3/8-16 unc x 1 Price: $2.99 |
| 4 |
325-13 |
SCREW-HH Price: $3.57 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
99-7435 |
RELAY Price: $32.43 |
| 6 |
104-7201 |
NUT-HF Price: $0.69 |
| 6 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 7 |
112-6361-03 |
CROSSMEMBER ASM Price: $240.97 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 8 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 10 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 11 |
161-4477 |
PIN-ROPS, ASM This part replaces 103-4553. Price: $31.99 |
| 12 |
105-0778 |
STRIP-FOAM Price: $11.41 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT Price: $4.99 |
| 13 |
105-7296-03 |
SUPPORT-SEAT Price: $122.64 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 15 |
112-6387 |
STRIP-FOAM Price: $10.62 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
32128-23 |
NUT-HF Price: $1.51 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 17 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 18 |
112-6367-03 |
PANEL-REAR Price: $75.89 |
| 19 |
32151-106 |
RING-RETAINING Price: $0.25 |
| 20 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 21 |
107069 |
CLIP Price: $1.79 |
| 21 |
532171852 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 23 |
32105-2 |
SCREW-SHWH Price: $3.49 |
| 23 |
871110814 |
BOLT.HEX.BLACK Price: $3.99 |
| 24 |
112-6384-0P |
SCREEN This part replaces 112-6384-03. Price: $149.73 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $3.99 |
| 25 |
98-8332 |
KNOB Price: $4.89 |
| 27 |
110-9794 |
COVER-FRONT Price: $120.96 |
| 28 |
95-5807 |
SPACER Price: $10.10 |
| 29 |
237-124 |
GROMMET Price: $2.30 |
| 30 |
110-8276 |
TRIM-HOLD DOWN, BATTERY Price: $4.66 |
| 31 |
3290-412 |
RIVET-BLIND Price: $3.19 |
| 32 |
321-10 |
SCREW-HH Price: $1.29 |
| 33 |
2412-87 |
CLAMP-CABLE Price: $2.89 |
