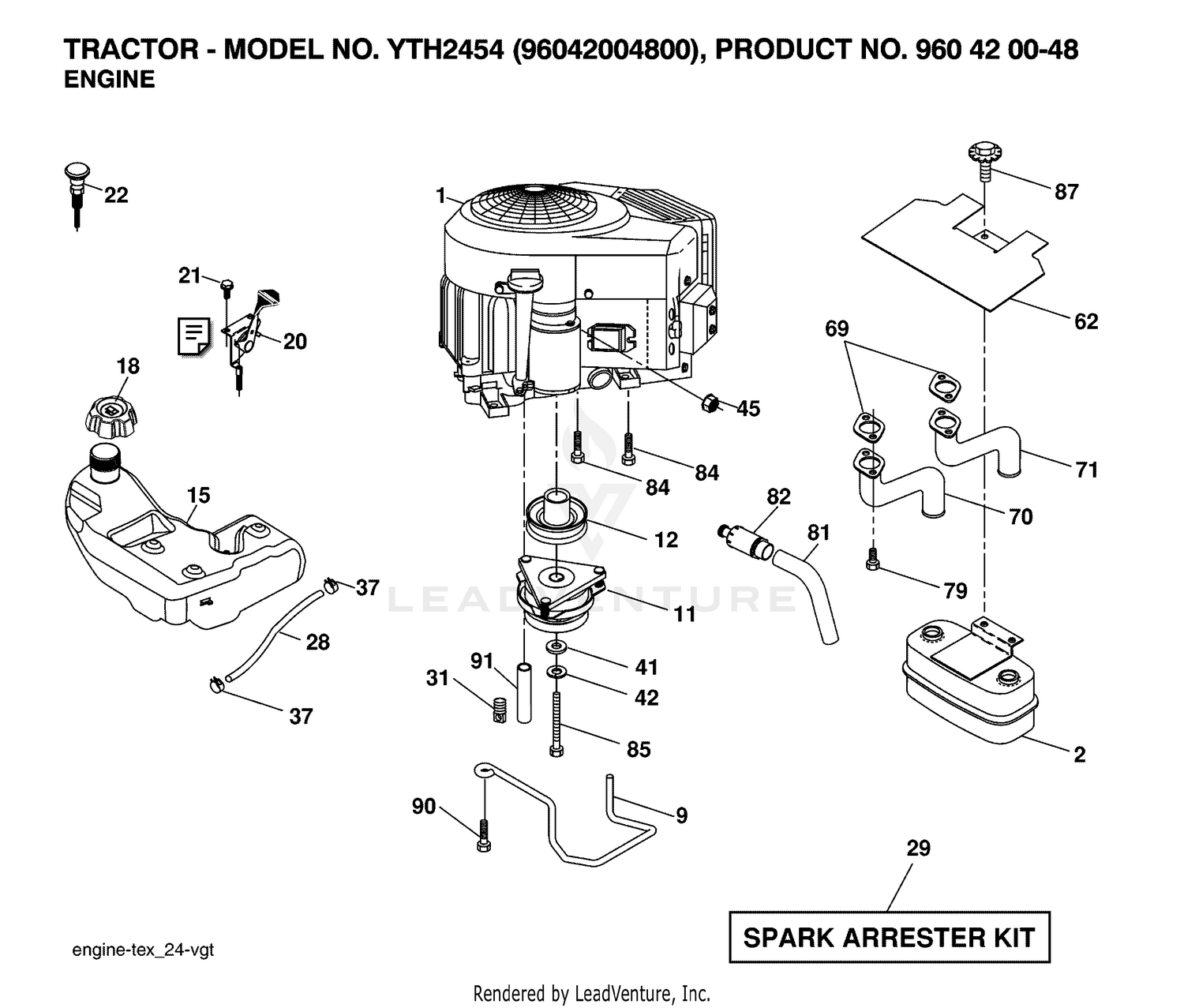

| Ref | Part Number | Description |
|---|
| 1 |
130-2709 |
COVER ASM Price: Call Us |
| 2 |
108-8027 |
COVER Price: $59.41 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
130-2711 |
CONTROL-LEVEL Price: $151.93 |
| 4 |
108-8029 |
VALVE-CONTROL, AIR Price: $382.10 |
| 5 |
130-2712 |
SHOCK ABSORBER ASM Price: $300.82 |
| 6 |
130-2714 |
AIR SPRING ASM Price: $191.02 |
| 7 |
130-2716 |
AIR TUBE ASM Price: $215.90 |
| 8 |
147-1720 |
WIRE HARNESS ASM This part replaces 130-2718. Price: $160.58 |
| 9 |
130-2719 |
COMPRESSOR Price: $534.30 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
130-2721 |
BELLOWS ASM Price: $248.41 |
| 11 |
130-2723 |
TETHER Price: $164.48 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 13 |
130-2726 |
HANDLE Price: $100.26 |
| 14 |
130-2727 |
UPPER SUSPENSION KIT Price: $105.22 |
| 15 |
130-2728 |
LOWER SUSPENSION KIT Price: $136.21 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
