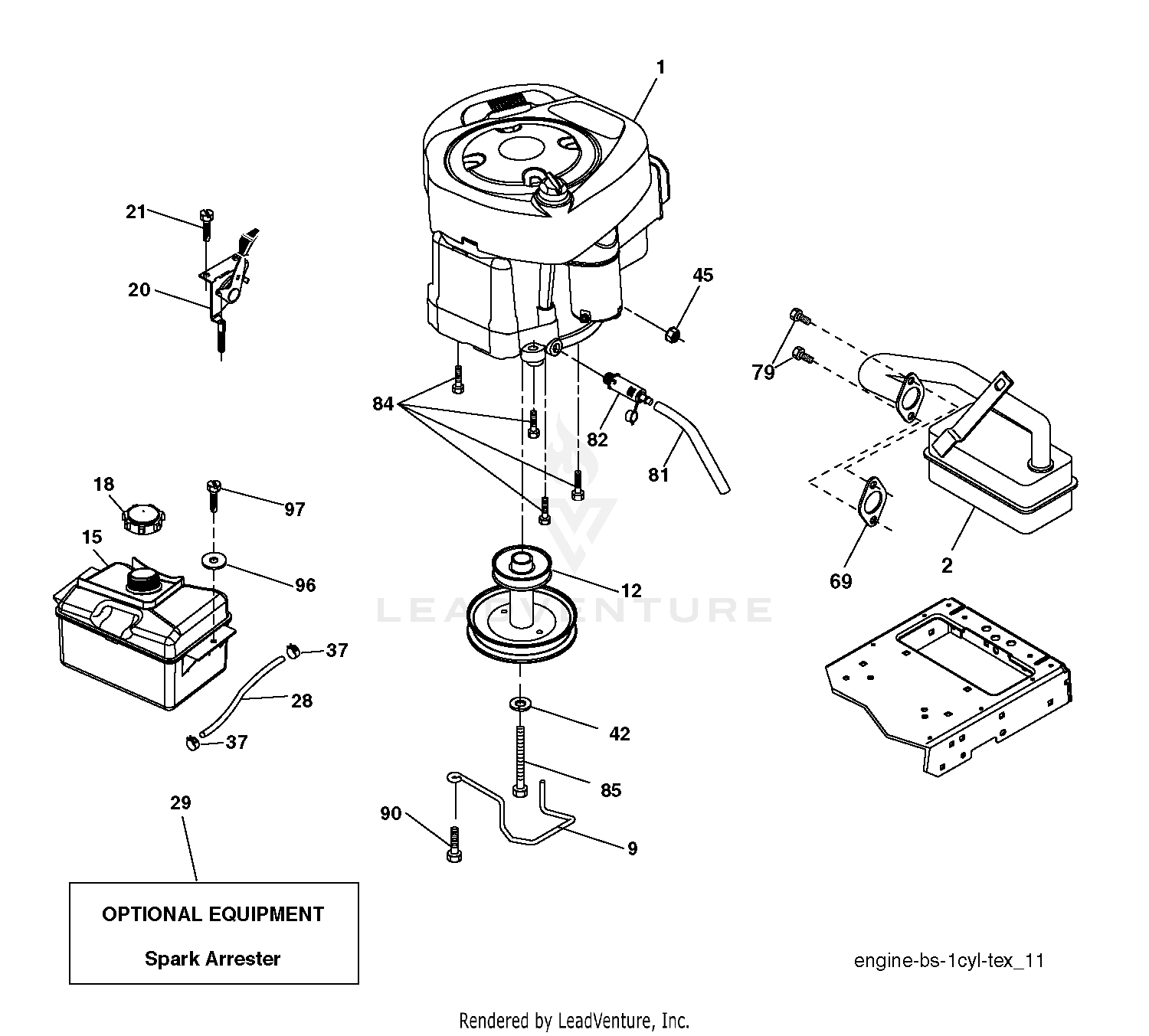

ENGINE

ENGINE

Parts (20)

RefPart NumberDescription
2 532179758 MUFFLER.B&S.MODEL.21.11HP.OHV Price: $69.99
9 532194319 KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99
12 532140186 PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99
15 581289901 FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99
18 581075501 CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99
20 532176636 CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99
21 596321701 Screws This part replaces 532416358. Price: $2.99
28 587044820 HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99
29 532137180 KIT.SPARK ARRESTOR 794945 B&S Price: $109.99
37 532123487 HOSE CLAMP Price: $3.99
42 596238901 Washers This part replaces 810040700. Price: $2.99
45 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99
69 532272293 GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99
79 596134201 Screws This part replaces 532192334. Price: $2.99
81 532148456 TUBE, DRAIN OIL ASM. Price: $5.99
84 817060620 SCREW.3/8-16 Price: $5.99
85 501606501 BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99
90 817000616 SCREW 3/8-16X1 Price: $5.99
96 596135301 Washers This part replaces 819091416. Price: $2.99
97 817670412 SCREW HEXWSHR 1/4-20X3/4 Price: $3.99
