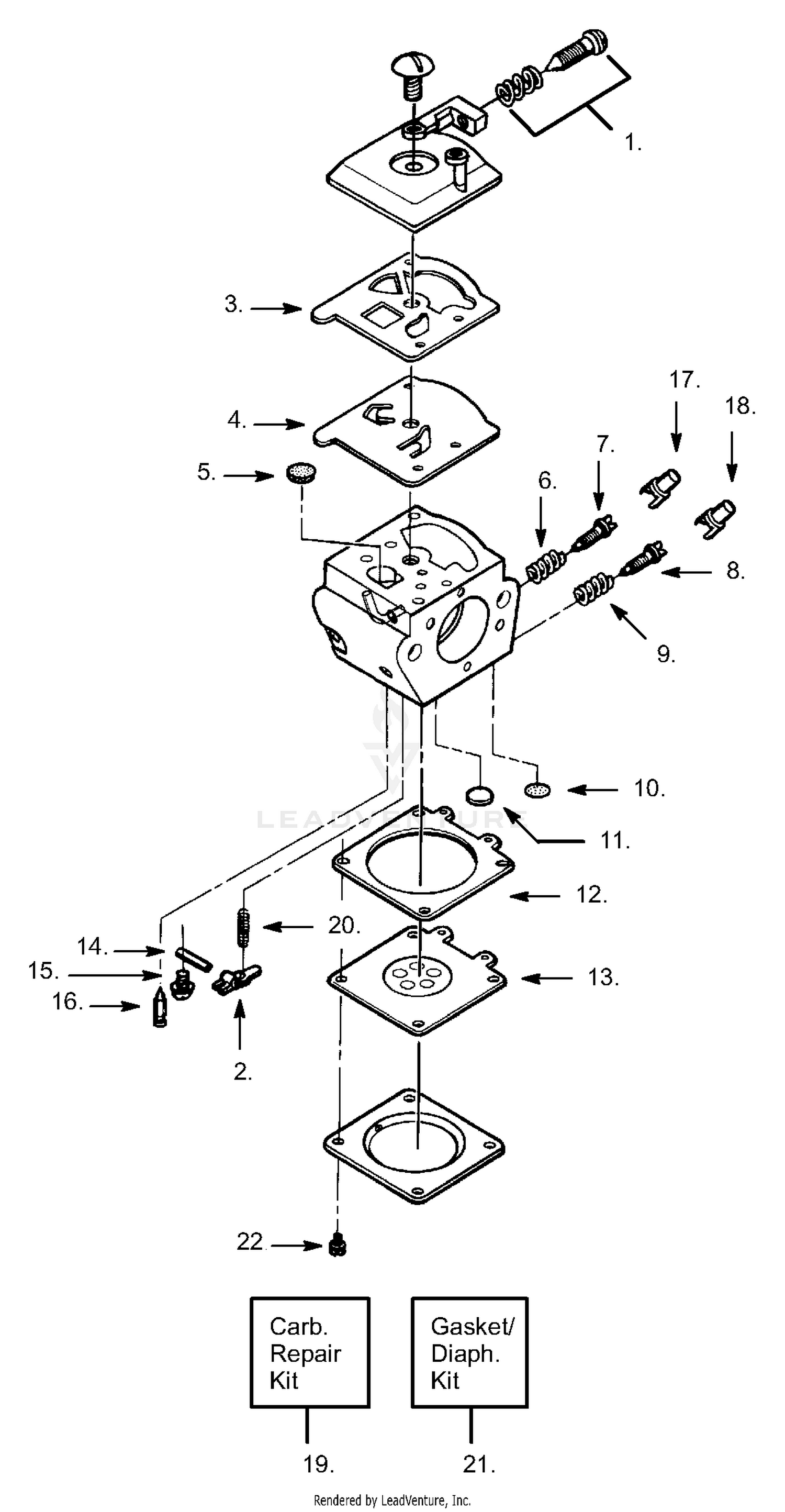

| Ref | Part Number | Description |
|---|
| 1 |
251-347 |
BEARING-BALL Price: $9.69 |
| 1 |
530035296 |
Idle Adv. Screw Kit Price: $6.99 |
| 2 |
119-4092 |
ROLLER TUBE ASM Price: $172.76 |
| 2 |
530035303 |
Metering Lever Price: $3.33 |
| 3 |
504130906 |
GASKET This part replaces 530035164. Price: $1.99 |
| 4 |
108-3151 |
NUT-LOCK, BEARING Price: $21.90 |
| 4 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 5 |
147-1347 |
SHAFT-ROLLER (21IN) This part replaces 119-4090. Price: $70.81 |
| 5 |
530035300 |
Fuel Inlet Screen Price: $17.99 |
| 6 |
106-6941 |
SEAL Price: $5.74 |
| 6 |
530035293 |
Needle Spring (Low Speed) Price: $1.99 |
| 7 |
530035281 |
Low Speed Needle WT-202, 239 & 285 Price: $6.99 |
| 7 |
530035383 |
Low Speed Needle WT-289 Price: $2.05 |
| 8 |
530035384 |
High Speed Needle WT-289 Price: $4.99 |
| 8 |
530037259 |
High Speed Needle WT-239 Price: Call Us |
| 8 |
530037294 |
High Speed Needle WT-202, 239 & 285 Price: $4.99 |
| 9 |
530035295 |
Needle Spring (High Speed) Price: $1.99 |
| 10 |
530035162 |
Welch Plug (5/16) Price: $0.99 |
| 11 |
530035299 |
Cup Plug Price: $3.33 |
| 12 |
530035165 |
Metering Diaphragm Gasket Price: $7.99 |
| 13 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 14 |
505520125 |
Pin This part replaces 530035028. Price: $1.99 |
| 15 |
530035016 |
Metering Lever Pin Screw Price: $2.99 |
| 16 |
530035301 |
Inlet Needle Valve Price: $3.33 |
| 17 |
530038318 |
Limiter Cap - High WT-289 only Price: $1.99 |
| 18 |
530038317 |
Limiter Cap - Low WT-289 only Price: $1.99 |
| 20 |
530035302 |
Metering Lever Spring Price: $0.64 |
| 22 |
530035021 |
Metering Cover Screw Ass'y Price: $1.99 |
| 530071987 |
CARBURETOR |
W-29 This part replaces 530035330. Price: $29.99 530071987 |
