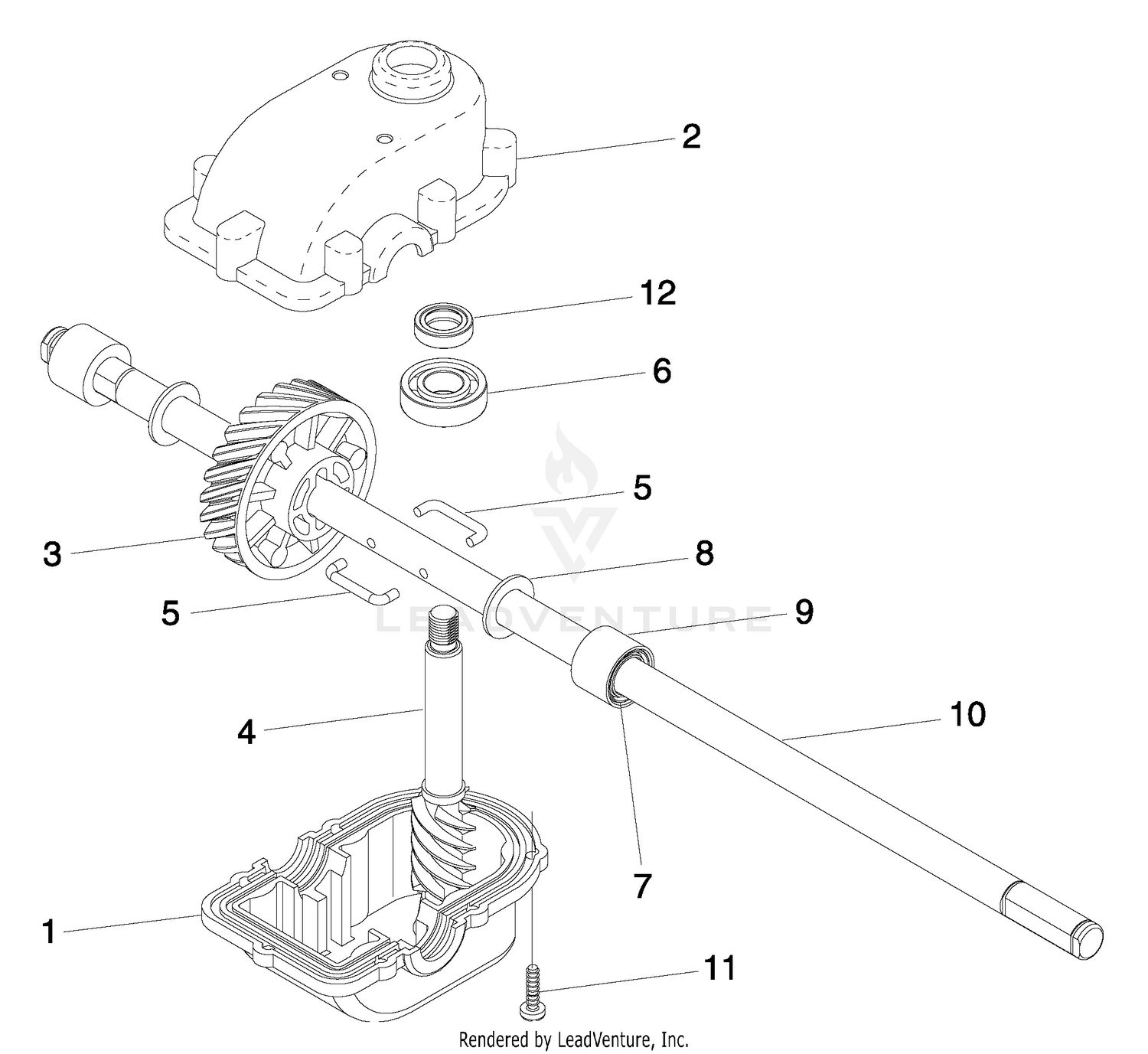

| Ref | Part Number | Description |
|---|
| 1 |
532187530 |
CASE, LOWER Price: $10.99 |
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
532191245 |
GEARCASE.HOUSING Price: $11.99 |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
532187532 |
GEAR.24.TOOTH.WALK.MOWER Price: $11.99 |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
532191246 |
WORM GEAR Price: $32.99 |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
108-1402 |
GEAR CASE ASM This part replaces 99-8381. Price: $859.88 |
| 5 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 6 |
532183506 |
BEARING Price: $5.99 |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 7 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 7 |
98-9372 |
O-RING Price: $1.66 |
| 8 |
532183509 |
WASHER Price: $3.99 |
| 8 |
98-7547 |
O-RING Price: $0.92 |
| 9 |
532183511 |
BUSHING Price: $4.99 |
| 9 |
98-9356 |
BOLT Price: $2.06 |
| 10 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 10 |
532191247 |
SHAFT OUTPUT Price: $59.99 |
| 11 |
532183513 |
SCREW Price: $3.99 |
| 11 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 12 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 12 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 13 |
98-9437 |
BOLT Price: $1.05 |
| 14 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 15 |
98-9684 |
GASKET-CASE, GEAR Price: $2.18 |
| 16 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
