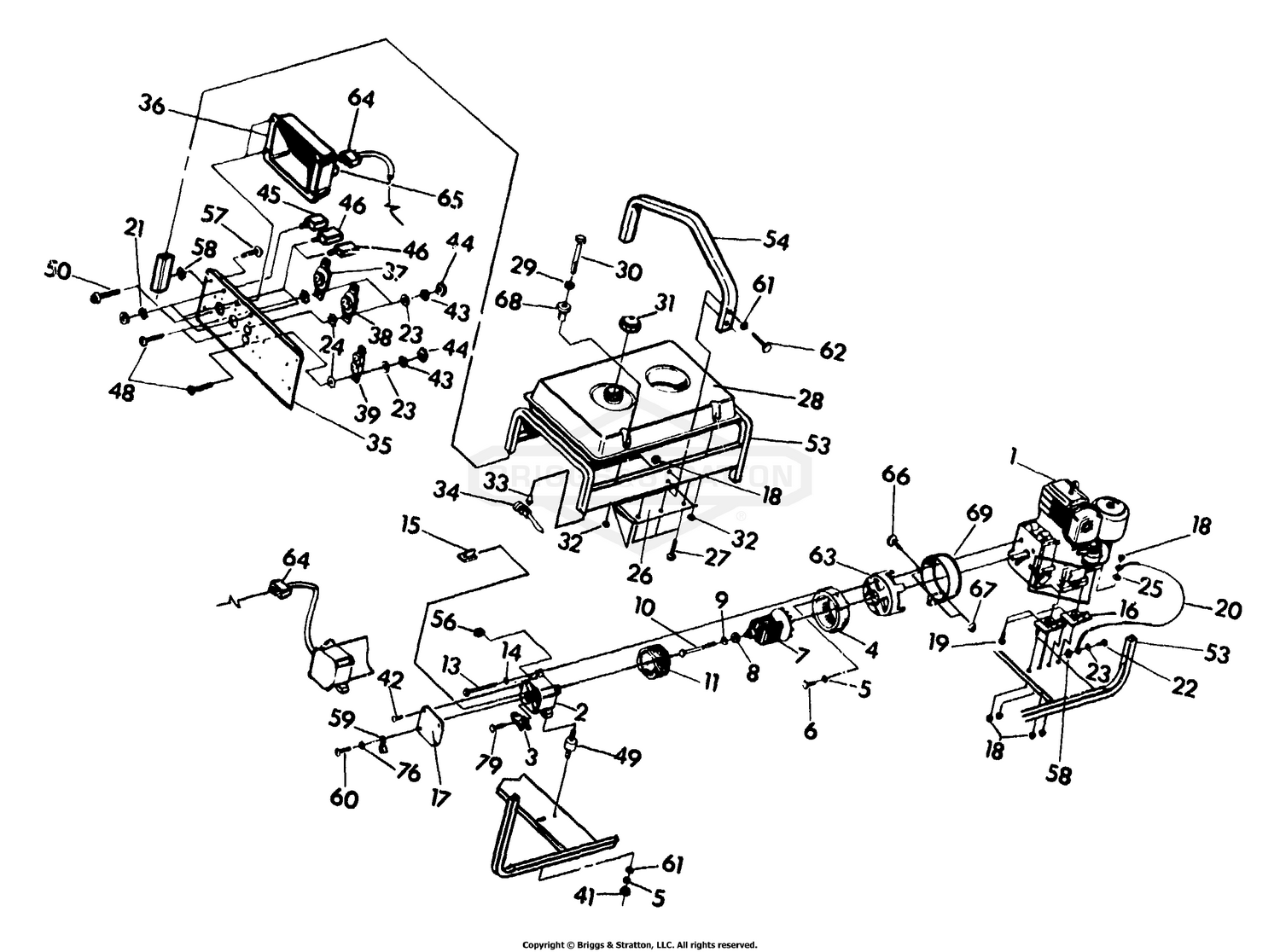

| Ref | Part Number | Description |
|---|
| 1 |
79557 |
Briggs & Stratton 11hp Eng. Price: Call Us |
| 2 |
66825A |
Rear Bearing Carrier Price: Call Us |
| 3 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 4 |
66365DGS |
ADPTR, HSNG, 8 HP This part replaces 66365D. Price: $56.99 |
| 5 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 7 |
74716 |
Rotor Assembly Price: Call Us |
| 8 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 9 |
67451 |
Special Washer Price: Call Us |
| 10 |
75431GS |
CAPSCREW, Hex Head This part replaces 75431. Price: Call Us |
| 11 |
79636 |
Stator Assembly Price: Call Us |
| 13 |
66449D |
M6-1.0 x 130mm Bolt Price: Call Us |
| 14 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 15 |
66850GS |
ASSY, RECTIFIER, BRIDGE This part replaces 66850. Price: Call Us |
| 16 |
70642GS |
MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27 |
| 17 |
67025 |
Bearing Carrier Cover Price: Call Us |
| 18 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 19 |
76222GS |
PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15 |
| 21 |
82881GS |
WASHER, 7/16" Int Lock This part replaces 82881. Price: Call Us |
| 22 |
24911GS |
TRILOBLAR, 8-32 x 3/8 This part replaces 24911. Price: $2.64 |
| 23 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 24 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 25 |
27482GS |
WASHER, 5/16" Ext. Shakeproof This part replaces 27482. Price: $2.19 |
| 26 |
84459 |
Heat Shield Price: Call Us |
| 27 |
56892GS |
CRIMPTITE, 10-24 X 3/8 This part replaces 56892. Price: $2.79 |
| 29 |
78830GS |
WSHR, SPCL, BLK This part replaces 78830. Price: $1.35 |
| 30 |
79816 |
M6 x 35mm Black Capscrew Price: Call Us |
| 31 |
78824 |
Fuel Tank Cap Price: Call Us |
| 32 |
77395GS |
NUT, FLANGE LOCK - M6 This part replaces 77395. Price: $3.09 |
| 33 |
80269 |
Plastic Tank Bushing Price: Call Us |
| 34 |
192980GS |
Kit, Valve This part replaces 80270. Price: $16.43 |
| 35 |
81897 |
Control Panel Price: Call Us |
| 36 |
81919GS |
PANEL, Control, Back, Plastic This part replaces 81919. Price: $109.99 |
| 37 |
705932 |
OUTLET-120V TL30A This part replaces 68868. Price: $34.97 |
| 38 |
68867GS |
OUTLET, 120/240V Locking, 20A This part replaces 68867. Price: $43.09 |
| 41 |
25244GS |
NUT, 5/16-18 HEX This part replaces 25244. Price: $2.59 |
| 42 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 43 |
22264 |
No. 8 Lock Washer Price: $8.99 |
| 44 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 45 |
706178 |
BREAKER-CIRCUIT 30A This part replaces 75207-A. Price: $32.31 |
| 46 |
209872GS |
BREAKER-CIRCUIT 20A This part replaces 75207. Price: $9.29 |
| 48 |
75475 |
M4-0.7 x 10mm Screw Price: $24.95 |
| 49 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 50 |
82308GS |
SCREW, Self Tapping, STC 3 x 18 This part replaces 82308. Price: $2.59 |
| 53 |
84456 |
Cradle Price: Call Us |
| 54 |
84453 |
Lifting Bar Price: Call Us |
| 56 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 57 |
75494 |
No. 10 x 5/8" Self-drill Screw Price: $30.20 |
| 58 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 59 |
25433 |
Ground Lug Price: Call Us |
| 60 |
68849 |
M5-0.8 x 15mm Screw Price: Call Us |
| 62 |
39287GS |
SCREW This part replaces 39287. Price: $3.20 |
| 63 |
68342 |
Engine Spacer Price: Call Us |
| 64 |
22695GS |
FASTEN, On Tab Housing 6P This part replaces 22695. Price: $3.20 |
| 65 |
22694GS |
HOUSING, Receptacle This part replaces 22694. Price: $5.44 |
| 66 |
52618GS |
SCREW, M5 x 0.8 x 12 This part replaces 52618. Price: $2.64 |
| 67 |
52856GS |
NUT, LOCKING-M5 This part replaces 52856. Price: $2.59 |
| 68 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
