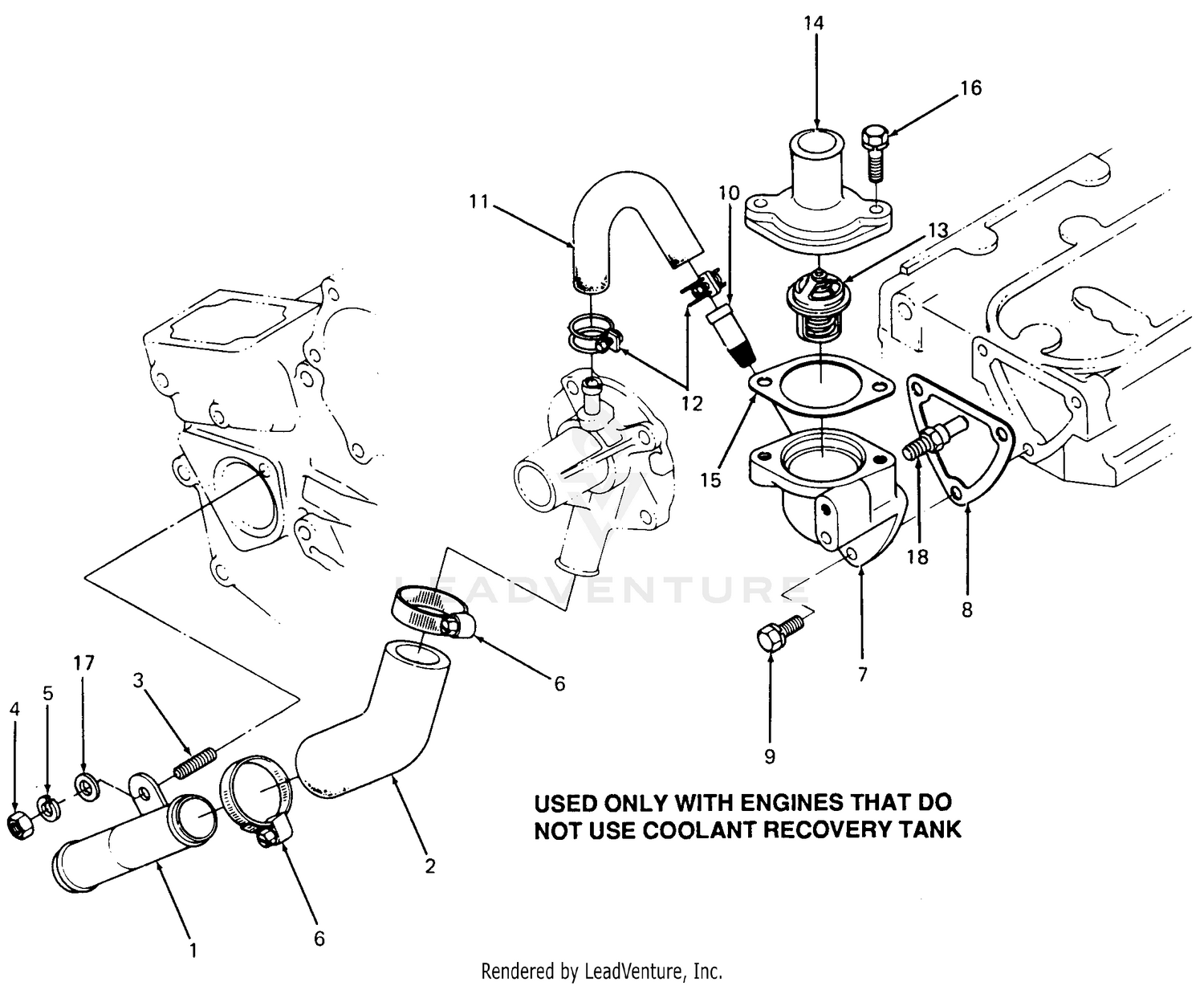

Water Flange & Thermostat I
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93-9312 | DISCONTINUED Price: Call Us |
| 1 | KB-15841-72860 | PIPE Not Available Price: |
| 2 | 32152-10 | LOCKNUT Price: $0.81 |
| 2 | KB-15841-72870 | PIPE Not Available Price: |
| 3 | KB-15841-91510 | STUD Not Available Price: |
| 4 | 70-2780 | PISTON Price: $133.22 |
| 4 | KB-02056-50060 | NUT Not Available Price: |
| 5 | KB-04512-70060 | WASHER Not Available This part replaces KB-04512-50060. Price: |
| 6 | KB-09318-89030 | HOSE CLAMP Not Available Price: |
| 7 | KB-19054-72700 | Flange, Water Price: Call Us |
| 8 | KB-15841-72923 | GASKET-WATER FLANG Not Available This part replaces KB-15841-72920. Price: |
| 9 | 98-7353 | DISCONTINUED This part replaces 93-7990. Price: Call Us |
| 9 | KB-01023-50616 | BOLT W/WASHER Not Available Price: |
| 10 | KB-16241-73340 | WATER PIPE Not Available Price: |
| 11 | 93-7991 | COLLAR Price: $73.29 |
| 11 | KB-15841-73350 | PIPE Not Available Price: |
| 12 | 75-3790 | SHAFT W/TUBE Price: $205.50 |
| 12 | KB-16241-73360 | HOSE CLAMP Not Available Price: |
| 13 | 302-5 | FITTING-GREASE Price: $0.59 |
| 13 | KB-1E399-73010 | THERMOSTAT ASSEMBLY Not Available This part replaces KB-19203-73010. Price: |
| 14 | KB-15841-73260 | COVER Not Available Price: |
| 15 | KB-16851-73270 | GASKET-THERMOSTAT Not Available This part replaces KB-15531-73270. Price: |
| 16 | KB-01023-50622 | BOLT Not Available Price: |
| 17 | KB-04012-50060 | WASHER PLA Not Available Price: |
| 503202963 | 503202963 | SCREW Price: $4.99 |
| 503904602 | 503904604 | EXHAUST DUCT This part replaces 503904602. Price: $14.99 |
| 503912501 | 503912501 | SCREEN Price: $7.99 |
